DIN912 Socket Head Thread Locking Screw



DIN911 socket head thread locking screw

Thread Locking Screws: The Gold Standard in Anti-Loosening Fasteners

Nylok screws were first developed by the American company Nylok, which pioneered a special technology to bond high-performance engineering plastic directly onto screw threads. This creates a permanent anti-loosening feature, making Nylok® screws the world's best solution for keeping screws tight under even the toughest conditions.

You'll find Nylok screws in everything from NASA satellites and top-tier cars, planes, and industrial machinery to everyday items like bikes, appliances, electronics, and power grids. Their easy installation and reliable performance also make them a favorite in tools and DIY applications.

How Nylok Screws Prevent Loosening

The secret? A unique plastic coating applied to the threads using a proprietary process. When you tighten the screw or nut, the plastic fills the gaps between threads and compresses, creating strong friction resistance. This locks the screw in place, preventing loosening from vibrations-permanently.

This type of locking is called "physical locking" (like Nylok®'s coatings) because the material physically blocks movement. You might recognize it as the blue coating on tool screws.

There's also "chemical locking", where a pre-applied adhesive (in microcapsules) activates when tightened, curing to lock threads. This is even stronger than physical locking and is often seen as the red coating on high-performance screws.

Why Choose Nylok® Screws?

✅ Superior vibration resistance – Stays tight even under extreme conditions.
✅ Reusable – Can be removed and re-tightened multiple times without losing effectiveness.
✅ Works on any fastener – Bolts, nuts, headed or headless screws.
✅ Customizable – Coating can cover 90° to 360° of the thread.
✅ Easy to install – No extra steps, saving time and money.
✅ Safe & durable – Works with different metals, doesn't weaken the screw, and resists oils, fuels, and most solvents.
✅ Wide temp range – Performs from -56°C to 121°C (-69°F to 250°F).

Physical vs. Chemical Locking: Which One Should You Use?

Physical locking (Nylok® coating) – Best for standard applications where screws may need adjusting or reusing (like gearbox covers or structural parts).

Chemical locking (Precote® adhesive) – Ideal for permanent, ultra-high-strength holds (like motor housings or drill chucks).

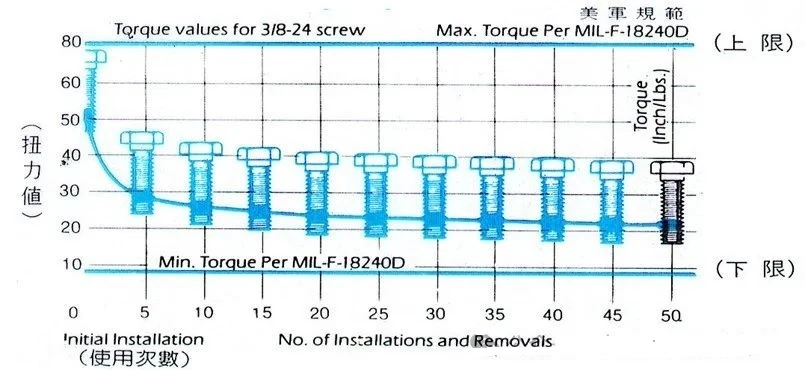

Check out Figure 1 to see how Nylok screws hold up over 50+ reuses without losing grip.

How Nylok Coating Works

The plastic covers at least 90° of the thread (options: 90°, 180°, or full 360°). It spans 4+ threads, with the first 3 threads near the head left uncoated for easier starting. The coating can be on external or internal threads, depending on the application.

Testing Nylok's Anti-Loosening Performance

Nylok screws are tested under IFI 524 standards, which measure their full torque resistance-ensuring they stay locked tight.

Why Do Screws Loosen in the First Place?

Threads naturally have gaps, and factors like vibration, stress changes, and temperature shifts can cause them to back out over time. Nylok's locking tech eliminates this problem by adding friction and resistance, keeping connections secure.
