Locking Quick Release Pin Factory – OEM/ODM Solutions
Zeyao Hardware manufactures Locking Quick Release Pins for applications that require fast installation, secure positioning, and convenient removal without the need for additional tools. A quick release pin typically consists of a precision-machined pin body and an integrated locking mechanism, allowing components to be connected, positioned, or secured through a prepared hole and released when required. Depending on the application, locking options can include spring-loaded balls, retaining clips, pull rings, or other mechanical locking structures.
As a professional custom fastener manufacturer with more than 19 years of manufacturing experience, Zeyao supports OEM and non-standard quick release pin production based on customer drawings, samples, CAD files, and technical specifications. Pin diameter, usable length, head design, locking mechanism, material, surface treatment, and handle or ring configuration can be customized for different mechanical applications.
-
![Ball Handle Quick Release Pin]()
Ball Handle Quick Release Pin-Plastic Ball Handleview more
-Stainless steel pin
-Stainless steel spring
-Stainless steel ball, or hardened steel ball.
-Diameter of the pin can be 3mm-30mm. Customized pin... -
![T Handle Ball Lock Pin]()

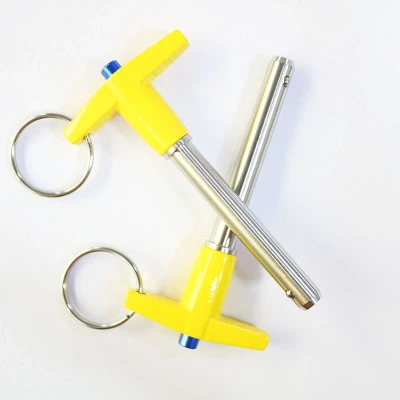

T Handle Ball Lock PinThe T-Handle Ball Lock Pin is a high-precision mechanical component designed for quick positioning, fastening, and connection.view more -
![Knob-Grip Locking Quick-Release Pins]()
Knob-Grip Locking Quick-Release PinsThe knob-grip locking quick-release pin is a simple and efficient fastening, allowing easy control of the pin’s insertion, locking, and release with a quick turn and pull of the knob. No...view more -
![Locking Quick-Release Pins with Recessed Button]()
Locking Quick-Release Pins with Recessed ButtonThe locking quick-release pin with recessed button is designed with a button handle that makes it easy to lock and release the pin quickly. Pressing the button causes the steel ball at the pin’s...view more -
![L-Handle Locking Quick-Release Pins]()
L-Handle Locking Quick-Release PinsThe L-handle quick-release pin is an industrial fastening, designed for efficient assembly and disassembly. With its ergonomic lever mechanism and quick-lock technology, it is perfect for narrow...view more -
![Ring-Grip Locking Quick-Release Pins]()
Ring-Grip Locking Quick-Release PinsThe ring-grip locking quick-release pin is a connector that combines portability with fast installation and removal. With a keyring, its circular handle is ideal for lightweight, high-frequency...view more
Specification
|
A |
Clamping Length |
B |
C |
D |
E |
H |
|
5 |
10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 |
5.2 |
8.4 |
7.9 |
24 |
9.2 |
|
6 |
6.9 |
8.7 |
9.5 |
24 |
12.7 |
|
|
8 |
10 |
8.5 |
11 |
24 |
12.7 |
|
|
10 |
11.6 |
9.9 |
12.7 |
30 |
12.7 |
|
|
12 |
15 |
12 |
15 |
30 |
14.2 |
|
|
16 |
19.5 |
17.1 |
19.1 |
30 |
14.2 |
|
|
20 |
25 |
19.1 |
22.2 |
45 |
14.2 |
|
|
25 |
29.2 |
25 |
28.6 |
45 |
14.2 |
Custom Options for Locking Quick Release Pins
|
Custom Option |
Customization Details |
|
Pin Diameter |
Pin diameter can be manufactured according to customer drawings or application requirements to match the mounting hole and required mechanical performance. |
|
Pin Length |
Overall length and usable working length can be customized to suit different assembly thicknesses and installation spaces. |
|
Head Design |
Different head configurations can be developed according to available operating space and the customer's handling requirements. |
|
Locking Mechanism |
The locking structure can be selected according to the required retention, release method, vibration conditions, and frequency of use. |
|
Groove Design |
Retaining grooves and other machined features can be customized according to the locking mechanism and assembly design. |
|
Material |
Material can be selected according to strength, corrosion resistance, operating environment, weight, and cost requirements. |
|
Surface Treatment |
Surface treatment can be selected based on corrosion resistance, appearance, and operating environment. |
|
Pin Tip |
The end geometry can be customized to improve insertion, alignment, or installation performance. |
|
Chamfer |
Chamfer dimensions can be adjusted to facilitate smooth insertion into the mating hole. |
|
Dimensional Tolerance |
Critical dimensions such as diameter, length, groove position, and hole-related features can be controlled according to engineering drawings. |
|
Hole Compatibility |
Pin dimensions can be matched to the customer's specified mounting-hole diameter and assembly clearance. |
|
Retaining Components |
Retaining components can be selected or customized according to the required locking and release mechanism. |
|
Packaging |
Packaging can be customized according to product quantity, transportation requirements, labeling, and customer warehouse procedures. |
|
Labeling |
Carton and inner-package labels can be customized for inventory management and identification. |
|
OEM/ODM Design |
Complete product customization is available based on 2D drawings, 3D CAD files, physical samples, or technical specifications. |
Advantages of Locking Quick Release Pin
Time-saving
The rapid insertion and removal of locking quick release pins significantly reduce assembly and disassembly times, enhancing overall efficiency.
Ease of use
The simple and intuitive design of locking quick release pins makes them user-friendly, requiring minimal training for proper operation.
Reusability
Locking quick release pins are designed for repeated use, making them a cost-effective solution in applications that require frequent component changes.
Versatility
With a wide range of sizes and configurations available, locking quick release pins can accommodate various hole diameters and component thicknesses, making them suitable for diverse applications.
Applications Of Locking Quick Release Pin
Aerospace And Aviation
Used in aircraft maintenance, quick assembly of structural components, and securing panels.
Automotive And Motorsport
Essential for racing vehicle adjustments, securing removable parts, and fixture setups.
Manufacturing And Industrial Machinery
Helps in the rapid setup and disassembly of tooling, fixtures, and assembly lines.
Marine And Offshore Engineering
Applied in securing deck equipment, safety barriers, and modular marine structures.
Medical and Laboratory Equipment
Utilized in adjustable fixtures, secure positioning of components, and quick-change mechanisms.
Defense and Military Equipm ent
Used in transport equipment, modular structures, and rapid deployment systems.
Our Partners
Locking Quick Release Pin Manufacturing Process
Drawing Review
The engineering team reviews the customer's drawing, dimensions, tolerances, material, locking structure, and application requirements.
Material Preparation
The specified raw material is selected and prepared according to the approved product requirements.
Precision Machining
The pin body and critical features are manufactured using suitable forming, turning, CNC machining, or other processes depending on the design and order quantity.
Heat Treatment
When required by the material and application, heat treatment can be used to achieve the specified mechanical properties.
Surface Treatment
Surface treatments such as zinc plating, black oxide, or nickel plating can be applied according to the required corrosion resistance and appearance.
Locking Mechanism Assembly
The spring ball, retaining clip, pull ring, or other locking components are assembled and checked for proper operation.
Final Inspection
Finished products are inspected for key dimensions, appearance, locking function, and other customer-defined requirements before shipment.
