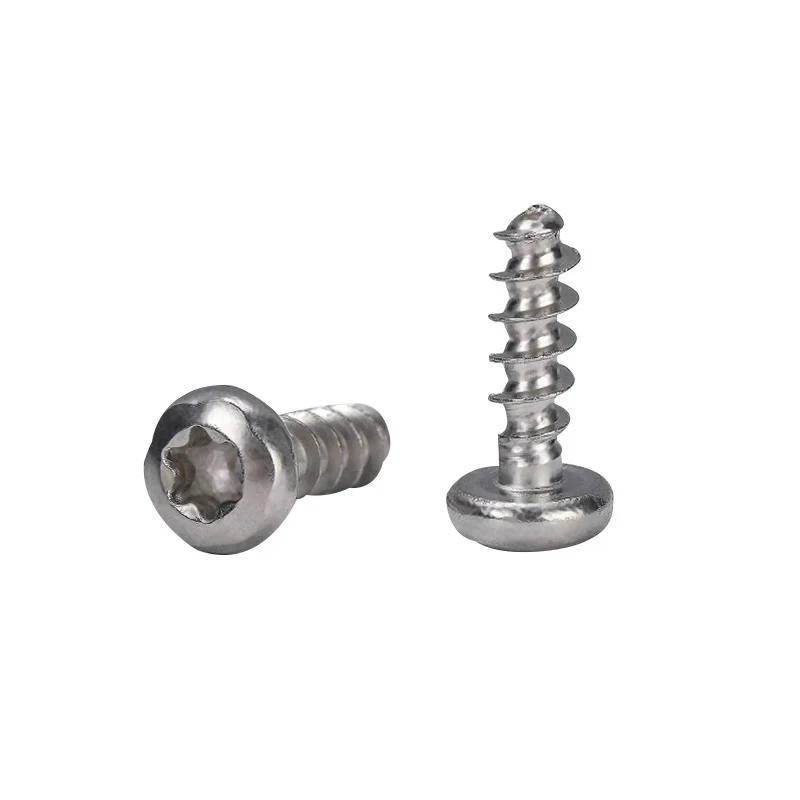

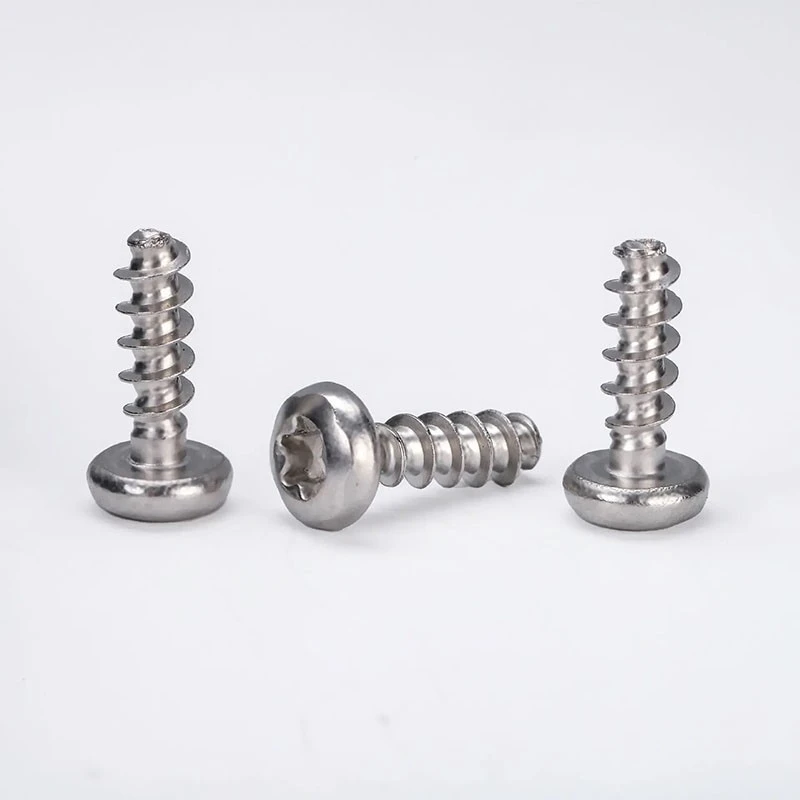

Torx Plus Rounded Head Thread-Forming Screws







A thread forming screw is a specially designed fastener that forms a matching thread inside the substrate through compression during installation, unlike ordinary self-tapping screws which create threads by cutting the material. Compared to traditional thread-cutting screws, thread forming screws do not remove substrate material; instead, they use a special thread shape to compress the material outwards, resulting in a tighter and more stable threaded connection between the screw and the mounting hole.





Item	Specification
Product Name	Torx Plus Rounded Head Thread-Forming Screws
Drive Type	Torx Plus
Head Type	Rounded Head
Thread Type	Thread Forming
Material Options	Carbon Steel, Stainless Steel 304, Stainless Steel 316, Alloy Steel
Size Range	M1.6, M2, M2.5, M3, M4, Customized Sizes
Length	Customized According to Requirements
Standard	DIN, ISO, ANSI or Customer Specifications
Surface Treatment	Zinc Plating, Black Oxide, Nickel Plating, Passivation
Manufacturing Type	OEM / ODM / Custom Production
Manufacturer	Huizhou ZeYao Hardware Products Co., Ltd.





Zeyao offers a variety of sizes and specifications of round head self-tapping screws to meet diverse industrial fastening needs. Product dimensions can be customized based on customer drawings, samples, and application requirements.

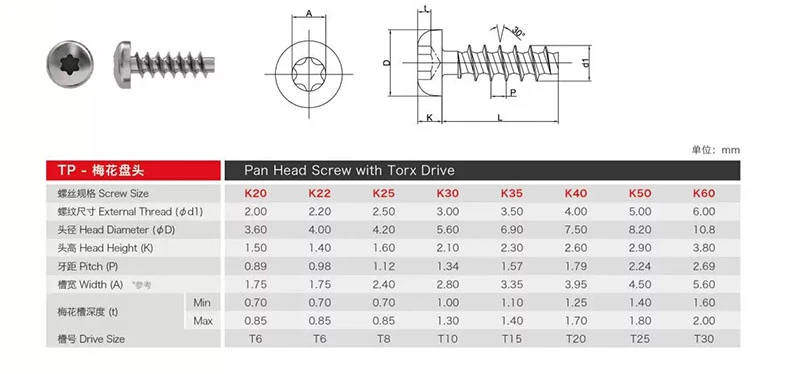

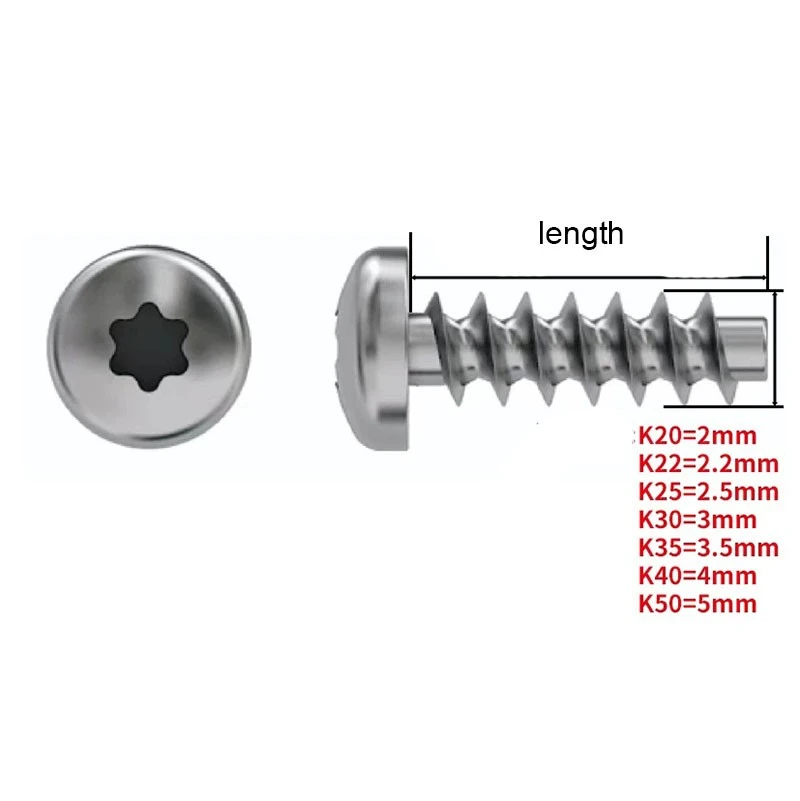

Screw Size	External Thread Diameter (d1)	Head Diameter (D)	Head Height (K)	Pitch (P)	Thread Length	Drive Size
K20	2.00 mm	3.60 mm	1.50 mm	0.89 mm	1.75 mm	T6
K22	2.20 mm	4.00 mm	1.60 mm	0.98 mm	1.75 mm	T6
K25	2.50 mm	4.20 mm	1.60 mm	1.12 mm	2.40 mm	T8
K30	3.00 mm	5.60 mm	2.10 mm	1.34 mm	2.80 mm	T10
K35	3.50 mm	6.90 mm	2.30 mm	1.57 mm	3.35 mm	T15
K40	4.00 mm	7.50 mm	2.60 mm	1.79 mm	3.95 mm	T20
K50	5.00 mm	8.20 mm	2.90 mm	2.24 mm	4.50 mm	T25
K60	6.00 mm	10.80 mm	3.80 mm	2.69 mm	5.60 mm	T30







1. Requirements Confirmation

You need to describe your requirements, including:

Material Requirements

Screw Size

Surface Treatment

Application Details

Order Quantity

Our engineering team reviews the requirements and confirms a suitable manufacturing solution.



2. Technical Assessment and Quotation

Based on product specifications, we assess:

Production Process

Material Selection

Mold Requirements

Manufacturing Cost

Then, we provide a detailed quotation and production plan.



3. Sample Confirmation

For custom self-tapping screws, we can produce samples for customer testing.

You need to confirm:

Product Dimensions

Thread Forming Performance

Installation Effect

Surface Quality



4. Mass Production

After sample confirmation, production begins, strictly controlling the following aspects:

Raw Materials

Thread Accuracy

Product Dimensions

Surface Treatment

Production Consistency



5. Quality Inspection and Delivery

Before shipment, the products will be inspected to ensure they meet customer requirements.

Inspection includes:

Visual Inspection

Dimensional Inspection

Thread Inspection

Packaging Verification
