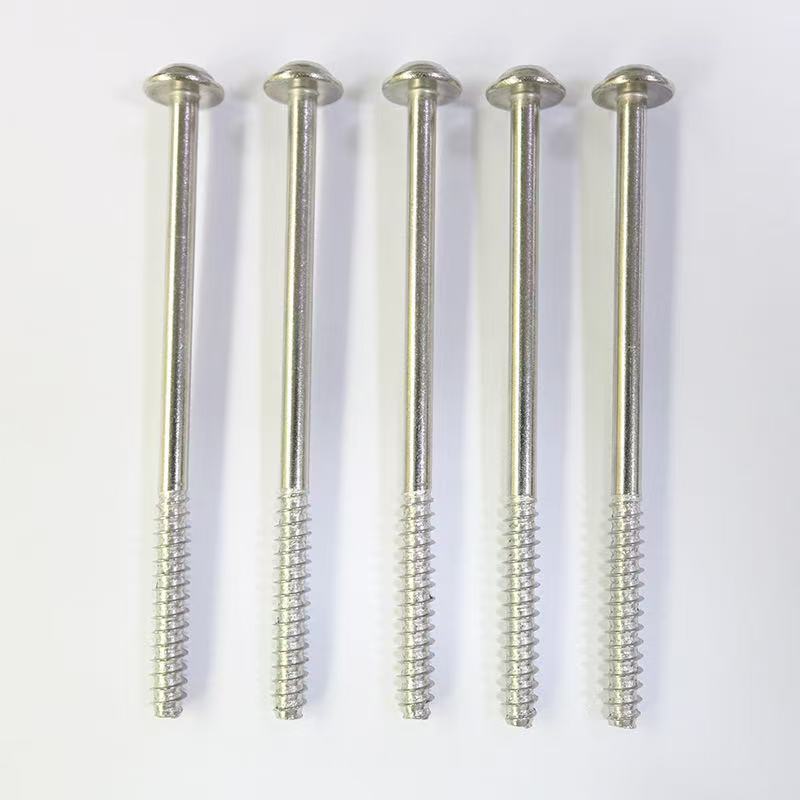

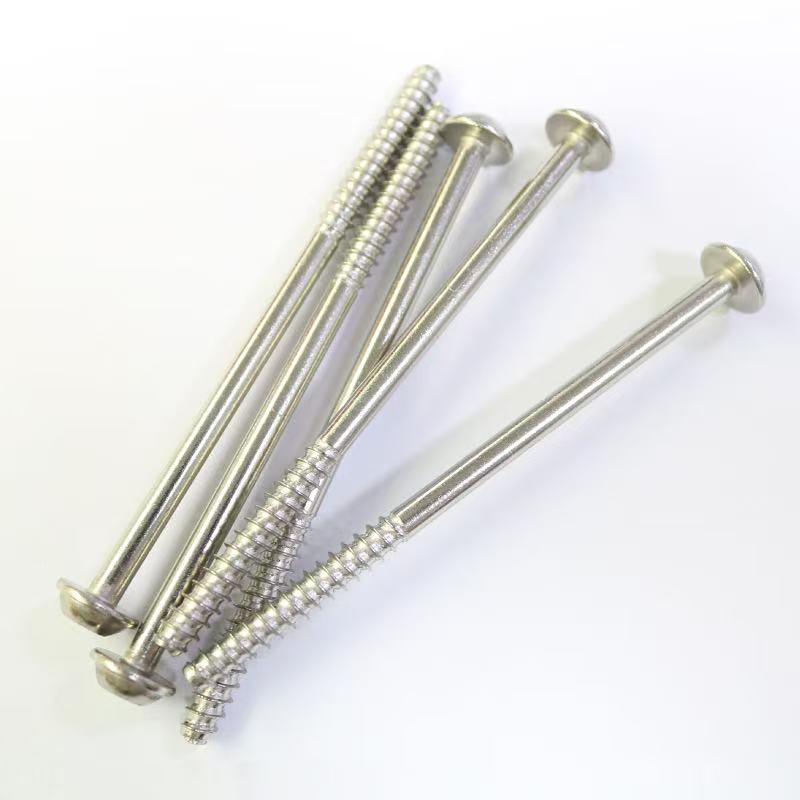

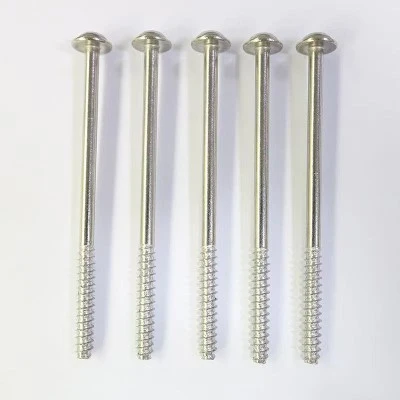

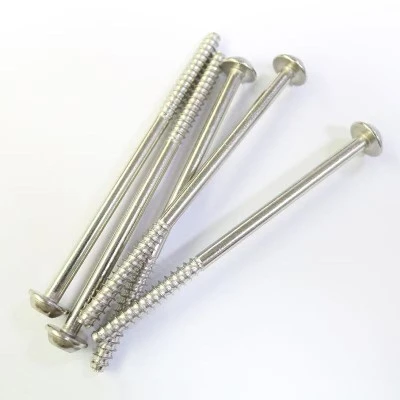

The following is a detailed user guide for the Torx Half-Thread Screw (National Standard Stainless Steel Pan Head Machine Screw with Washer), covering its features, applications, installation steps, and precautions.
I. Product Features
Structural Design
Pan Head: The rounded head provides a larger contact surface, facilitating tool force application.
With Washer: The integrated washer prevents loosening and reduces pressure on the workpiece surface.
Half-Thread: The screw has a threaded front end and a non-threaded rear end, enhancing tensile strength.
Material
304/316 Stainless Steel: Corrosion-resistant and rust-proof, suitable for humid or outdoor environments.
Compliant with national standards (such as GB/T 818), thread sizes range from M3 to M12, and lengths are available upon request.
II. Applications
Mechanical Assembly: Components that require frequent disassembly (such as motor housings and equipment panels).
Electronic and Electrical Equipment: The washer design prevents damage to circuit boards.
Outdoor Facilities: The stainless steel material is suitable for awnings, railings, and other applications.
III. Installation Steps
Preparation
Confirm that the screw specifications match the pre-drilled hole (hole diameter ≈ nominal screw diameter × 0.8).
Clean the threaded hole to prevent debris from interfering with tightening.
Tool Selection
Use a Phillips screwdriver with the matching head.
Installation Procedure
Alignment: Insert the screw perpendicularly into the hole, with the washer resting against the workpiece surface.
Threading: Turn clockwise, manually at the beginning to prevent stripping.
Tightening: When using a power tool, set the speed to medium-low and apply moderate torque (reference standard values, e.g., approximately 5-7 N·m for M6 screws).
Half-thread Precautions
Ensure that the unthreaded section is located in a non-loaded area (e.g., through a gasket or thick workpiece).
IV. Key Precautions
Anti-loosening Measures
Spring washers or thread sealants (Loctite) may be used in vibrating environments.
Material Compatibility
Avoid direct contact with soft metals such as aluminum, as this may cause galvanic corrosion.
Torque Control
Overtightening may deform the washer or damage the threads.
5. Common Problem Solving
Stripped threads: Replace the screw with a larger size or use a thread repair sleeve.
Rust: Check regularly; 316 stainless steel is more resistant to salt spray environments.
Following these steps and precautions, you can ensure optimal performance of this screw in various scenarios, balancing efficiency and reliability.
