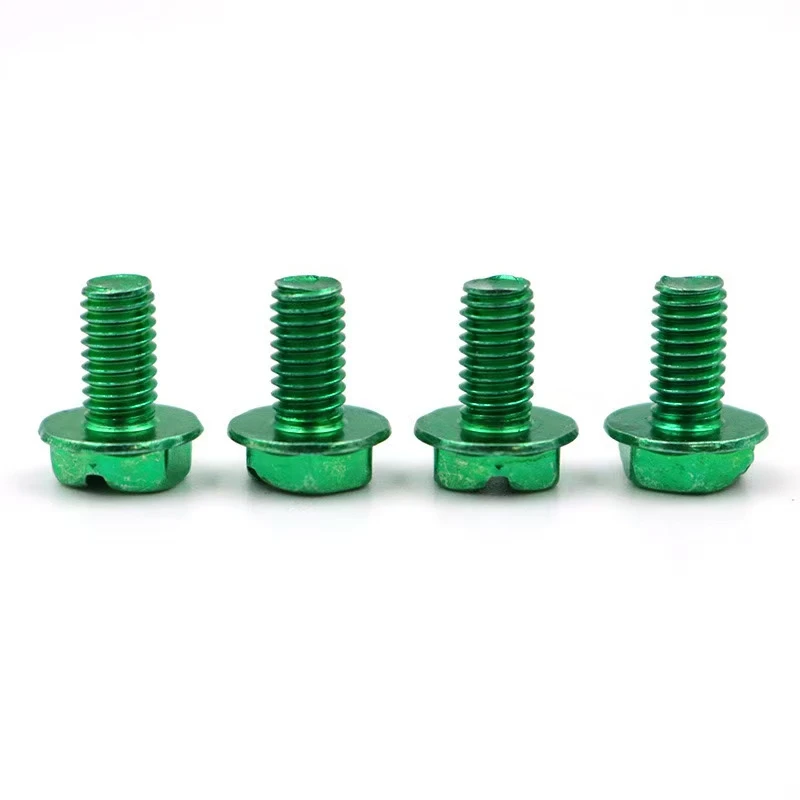

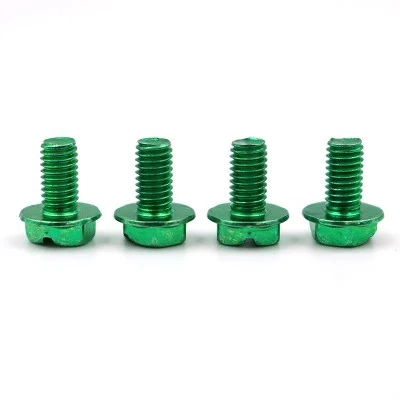

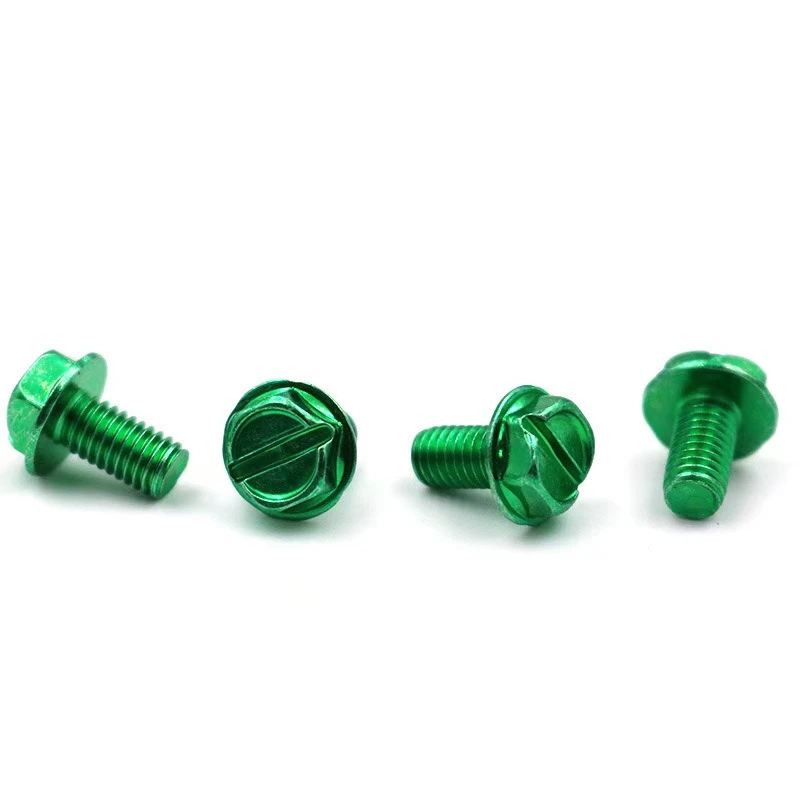

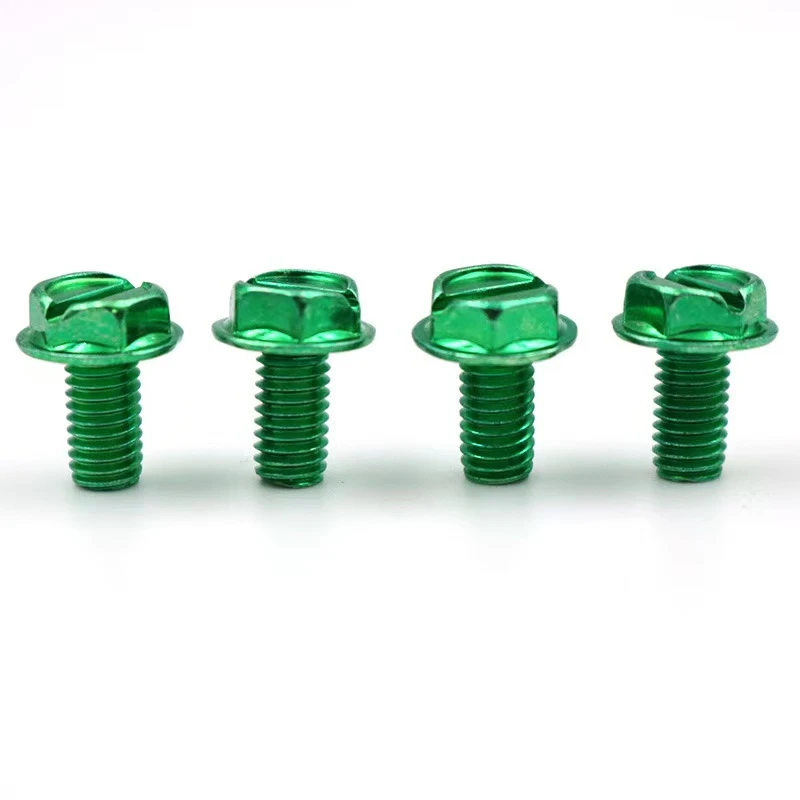

8-32 10-24 External Hexagon Slotted Green Zinc Grounding Screw. A grounding screw is a specific specification grounding screw primarily used for grounding electrical equipment or metal structures. The following is an introduction to its usage, organized by application scenario, balancing details and key points.
I. Screw Specifications
8-32: ANSI number, size 8 screw, 32 threads per inch.
10-24: Size 10 screw, 24 threads per inch.
Green Zinc Coating: Rust- and corrosion-resistant, suitable for humid or outdoor environments.
Structural Features
External Hexagon Head: Can be tightened with a wrench or socket, providing high torque.
Slotted Slot: Compatible with screwdrivers, suitable for space-constrained applications.
II. Applications
Electrical Grounding: Connecting equipment housing to grounding busbars/conductors.
Metal Structure Grounding: Lightning protection grounding systems for bridges, towers, and other structures.
Electronic Equipment: Attaching PCB grounding terminals requires the use of locking washers.
III. Installation Steps and Key Points
1. Preparation
Tool Selection: Hexagonal wrench (quick tightening) or flat-blade screwdriver (fine adjustment).
Torque wrench (standard torque is required in critical situations, e.g., approximately 5.6 N·m for 8-32 screws).
Surface Preparation: Remove oil and oxide from the contact surfaces to ensure conductivity.
2. Installation Procedure
Drilling and Tapping: 8-32: Pre-drill a hole approximately 3.5mm in diameter (#29 drill bit); 10-24: approximately 4.1mm in diameter (#25 drill bit). Use the appropriate tap to tap, maintaining a vertical position.
Screw Fixing: Insert the grounding terminal into the hole, manually tightening several threads to avoid cross-threading. Finally, tighten with a tool to ensure there is no gap between the terminal and the contact surface.
Securing: Add a spring washer or thread lock (for vibration-prone environments).
3. Precautions
Overtightening Risk: The green zinc coating may peel due to overtorque, compromising corrosion resistance.
Conductivity Verification: Test the ground resistance after installation (recommended ≤1Ω).
Periodic Inspection: In humid environments, inspect for rust annually.
IV. Common Problem-Solving Problems
Stripped Thread Treatment: Replace the screw with a larger size (e.g., if an 8-32 screw has stripped threads, use a 10-24 screw) or use a thread repair sleeve.
Rust Removal: Spray with loosening agent and soak for 10 minutes before proceeding.
V. Selection Recommendations
8-32: Light equipment, thin plates (1-2mm thickness).
10-24: Heavy cabinets, high-vibration environments (such as generator grounding).
The above steps ensure the secure installation of the grounding screw, ensuring both electrical safety and mechanical strength. The detailed instructions will need to be adjusted according to specific operating conditions.
Through the above design, this type of screw strikes a balance between electrical safety and mechanical reliability, making it a cost-effective, standardized component in grounding systems.
