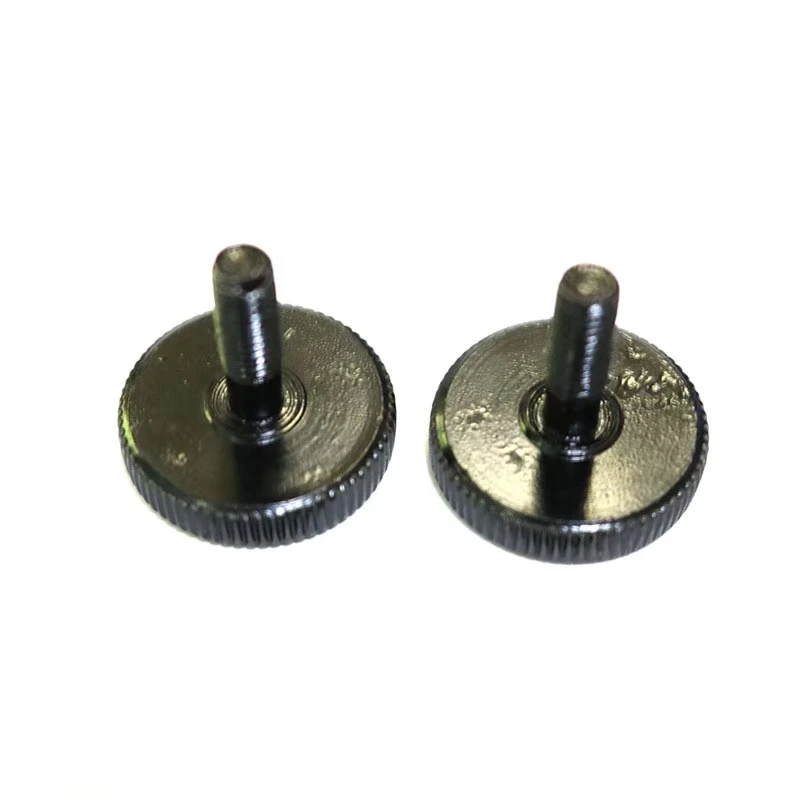

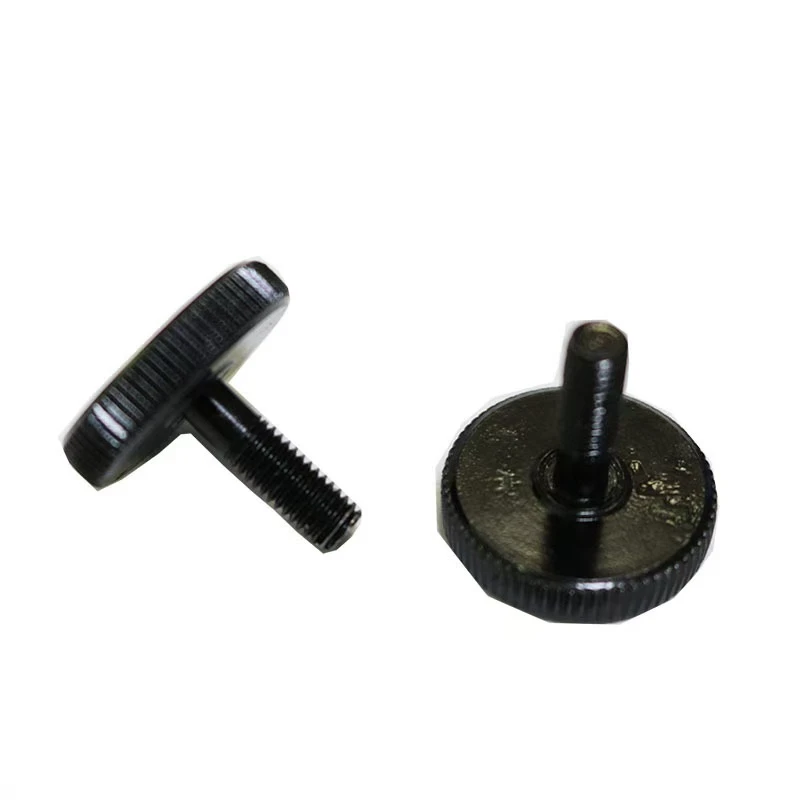

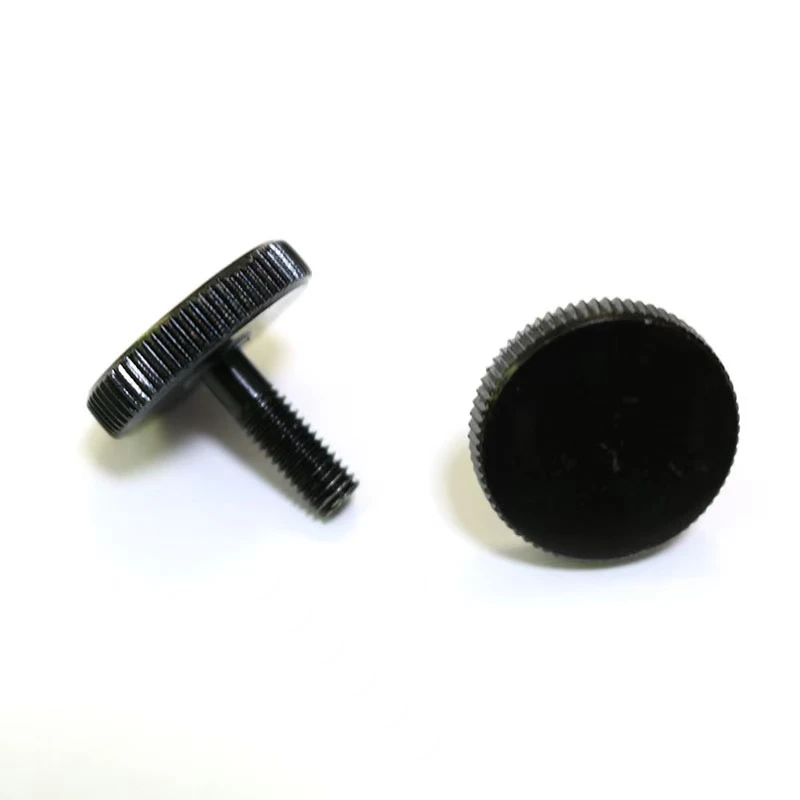

Carbon steel, aluminum, copper, stainless steel, electrophoresis black, M3, M4, M5, M6, M8 1/4-20 straight-thread, thin-head knurled thumb screws are a type of manually installed knurled screw that comes in a variety of materials, specifications, and surface treatments. The following is a detailed guide to their use, covering selection, installation, maintenance, and precautions.
I. Basic Screw Characteristics and Selection Recommendations
Material Selection
Carbon steel: Economical and durable, suitable for general environments.
Stainless steel (such as 304/316): Highly corrosion-resistant, suitable for humid and chemical environments.
Aluminum/Copper: Lightweight and conductive, used in electronics and heat dissipation (note their lower strength).
Specification Matching
Metric (M3-M8): Match the thread diameter to the device hole.
Imperial (1/4-20): 1/4-inch diameter, 20 threads/inch. Compatibility must be confirmed.
Length Selection: Ensure the thread engagement is ≥ 1.5 times the diameter.
Knurled design advantages: Straight knurling provides high friction, enabling hand-tightening and removal without tools, making it suitable for frequent adjustments.
II. Installation Steps and Techniques
Pre-installation Inspection: Clean the threaded hole to remove burrs and debris; check that the screw is long enough to penetrate the component being fixed (add a shim if it is too long).
Hand Tightening: Align the screw vertically with the hole, pinch the knurled area between your thumb and index finger, and turn.
Initial Thread Alignment: Turn counterclockwise until you feel a click, then tighten clockwise.
Tightening Force Control
Aluminum/Copper: Hand-tighten until you feel slight resistance to prevent stripping (recommended torque: M6 aluminum screws ≤ 3 Nm).
Carbon Steel/Stainless Steel: Increase the force appropriately, but avoid excessive tightening (the electrophoretic coating may peel due to friction).
Securing Measures: In vibrating environments, use nylon washers or Loctite 243 threadlocker.
III. Typical Application Scenarios
Electronic Equipment: Aluminum M3 thumbscrews secure circuit board covers.
Mechanical Panel: Stainless steel M6 screws are used for the quick removal of the control box door.
Radiator Assembly: Copper M4 screws ensure both thermal conductivity and ease of maintenance.
IV. Maintenance and Precautions
Rust Prevention
If the electrophoretic black coating on carbon steel is damaged, reapply anti-rust oil. Stainless steel requires no special maintenance.
Damage Treatment
Repairing Stripped Threads: Use a threaded sleeve or replace the screw with a larger size.
Contraindications
Avoid forcibly tightening the knurled area with a wrench, as this may cause deformation.
Copper/aluminum screws are not suitable for high-load structural components.
Through proper selection and proper operation, these knurled thumb screws can significantly improve assembly efficiency and are particularly suitable for light to medium load applications requiring frequent maintenance.
