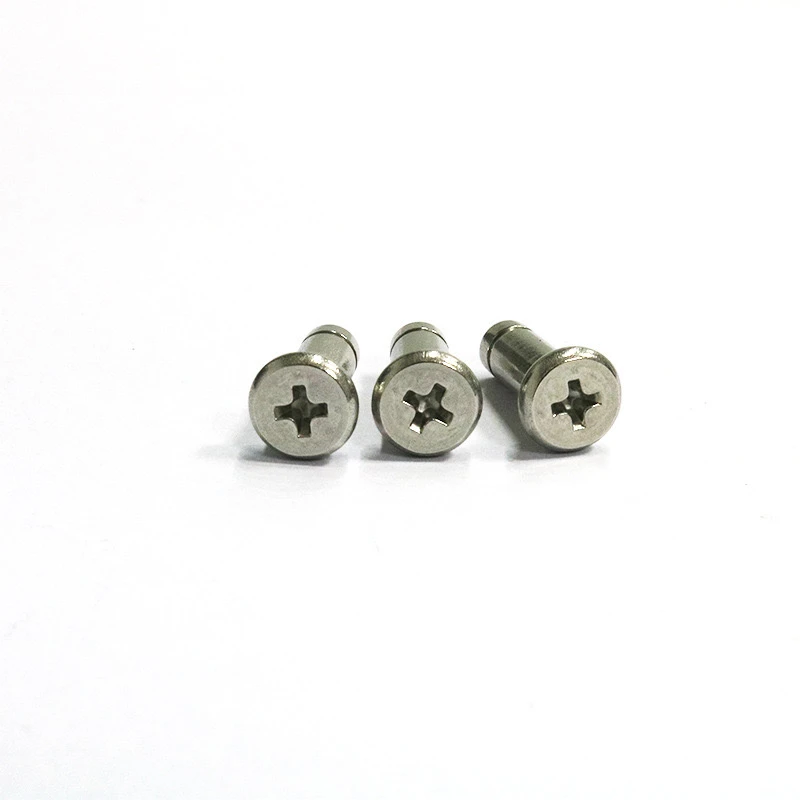

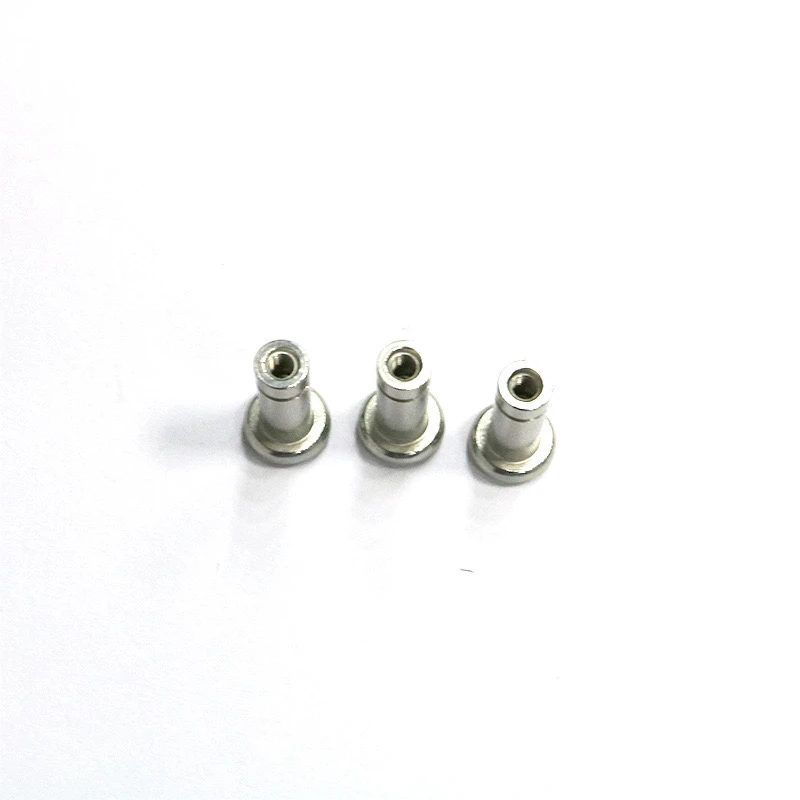

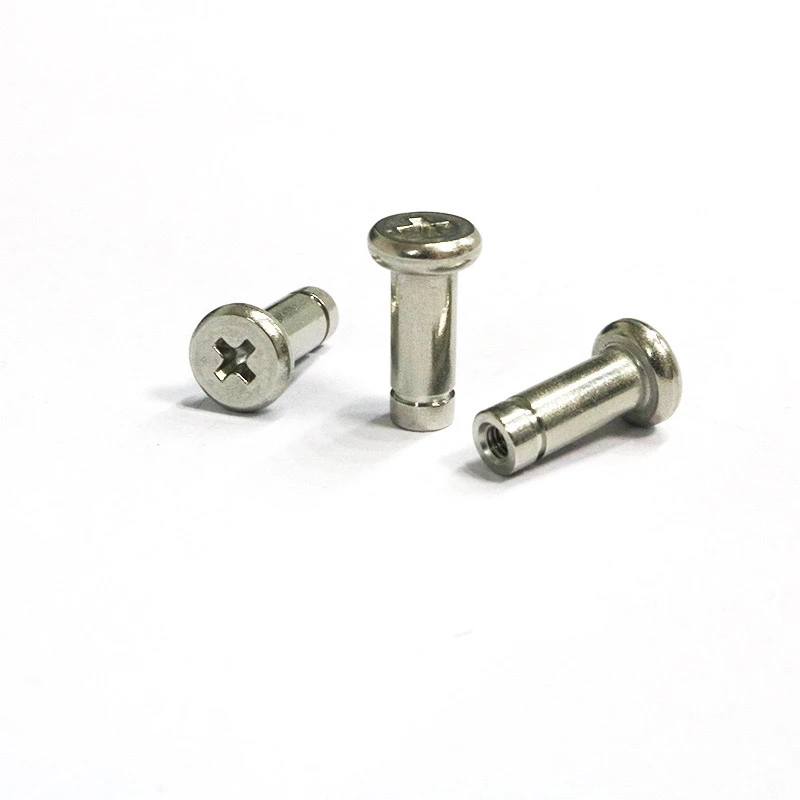

Stainless steel 304 cross flat head slotted pin is a multi-purpose fastener, usually used for mechanical positioning, axial fixation, or with circlips to achieve anti-drop function. The following is a detailed description of its use and related precautions.
1. Component function analysis
Stainless steel 304 material: corrosion-resistant, high temperature resistant, suitable for humid or acidic environments.
Cross flat head design: can be installed with a cross screwdriver, the flat head provides a flush surface to avoid interference from bulges.
Slotted structure: The slot is used to install the circlip to prevent the axial movement of the pin.
Positioning stud features: precise control of assembly position, often used to align shaft holes or fix rotating parts.
2. Installation steps
1. Preparation: prepare tools cross screwdriver, circlip pliers, and a hammer if necessary.
Inspection: Confirm that the pin diameter matches the hole diameter, and the circlip groove position is consistent with the circlip specifications.
2. Install the pin: Align the pin with the mounting hole, insert it manually, and gently push it to the predetermined position. If it is too tight, apply a small amount of lubricating oil.
Tightening: The threaded pin can be tightened with a cross screwdriver; the unthreaded pin needs to be tapped into place to avoid violent damage to the notch.
3. Circlip installation: Choose E-type or C-type circlips that match the slot width.
Fixing method: Use circlip pliers to open the circlip, insert it into the pin slot, and make sure it is fully embedded. If there are no circlip pliers, you can use needle-nose pliers instead, but be careful to avoid deformation of the circlip.
4. Positioning application: When used as a stud, pass through the part to be fixed and lock both ends with nuts or circlips. When precise alignment is required, you can use the pin for temporary positioning before tightening other bolts.
3. Precautions
Anti-loosening measures: After the circlip is installed, check whether it is completely inserted into the slot, and apply thread glue if necessary.
Load limit: The tensile strength of stainless steel 304 is about 520MPa; avoid overloading.
Maintenance inspection: Regularly check whether the circlip has an elastic failure and whether the pin is worn or corroded.
Disassembly tips: First, remove the circlip with circlip pliers, then use a puller or screwdriver to push out the pin.
IV. Typical application scenarios
Transmission system: fix the axial position of gears and pulleys.
Precision equipment: positioning the lens barrel of optical instruments.
Assembly line fixture: quick-detachable positioning pin.
V. Common problem solving
Circlip falls off: replace a more elastic circlip or add a gasket.
Pin rust: apply anti-rust grease regularly or upgrade to 316 stainless steel.
Through proper installation and maintenance, the components can significantly improve the stability and life of the equipment. If higher strength is required, consider using 17-4PH stainless steel pins.
