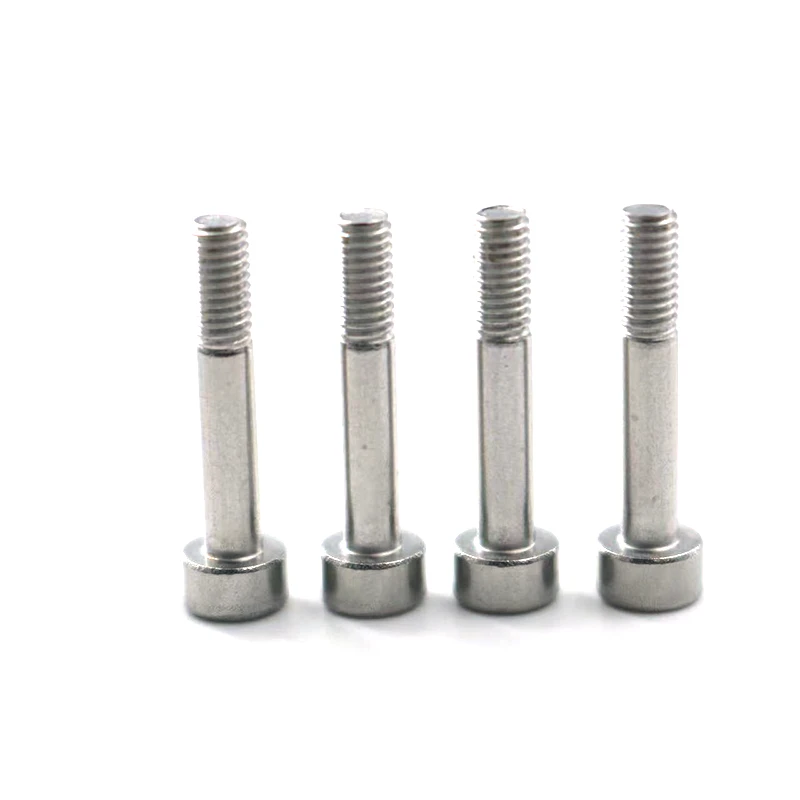

The cup-head hexagon socket screw with a half-thread design is a common mechanical fastener. The following is a detailed introduction to its functional aspects, focusing on its core functions.
1. Structural Features and Functional Positioning
Cup-head design: Provides a large bearing surface, distributing tightening pressure, and is suitable for applications requiring high torque or vibration. The flat top surface of the head reduces protrusion, creating an aesthetically pleasing appearance and preventing scratches.
Hexagonal drive: Tightened with a hexagonal wrench, it offers a large contact surface, high torque transmission capacity, and is less susceptible to thread stripping than Phillips or slotted screws. It requires a standard wrench size.
Half-thread design
Unthreaded smooth section: Enhances shear resistance and is suitable for applications requiring positioning or alignment, preventing thread damage to mating parts.
Partial thread section: Only a portion of the length is required for tightening, reducing thread processing costs and minimizing the risk of damage to soft materials.
2. Core Functional Advantages
High torque capacity: The hexagonal drive and cup-head design withstands greater tightening forces and is suitable for heavy equipment.
Precise Positioning: The polished rod section can be inserted into a prefabricated hole for axial positioning, avoiding thread interference.
Anti-loosening and Anti-vibration: The half-thread design can be used with nuts or thread sealants to reduce vibration-induced loosening.
3. Typical Applications
M3 (Light-Load Precision Parts): Electronic equipment housings, 3D printer frames, and small sensor mounting.
M4 (Medium Load): Automation equipment guide rails, PCB mounting brackets, and medium-sized motor mounting.
M5 (Higher Load): Industrial robot arm joints, hydraulic valve blocks, and heavy-duty fixture assembly.
4. Key Selection Parameters
Material: Carbon steel (galvanized/blackened), stainless steel (A2-304/A4-316), and titanium alloy (aerospace).
Thread Length: Half-thread screws should be selected based on the clamping thickness.
Strength Grade: For example, grade 8.8 (carbon steel) and A2-70 (stainless steel), the strength grade must match the load requirements.
5. Comparing the Applicability of Full-Thread Screws
Partial-thread screws are preferred when a smooth rod section is required for guidance or positioning (e.g., sleeve mounting). They are also preferred for non-through-hole assembly to avoid damaging the bottom thread (e.g., blind holes).
