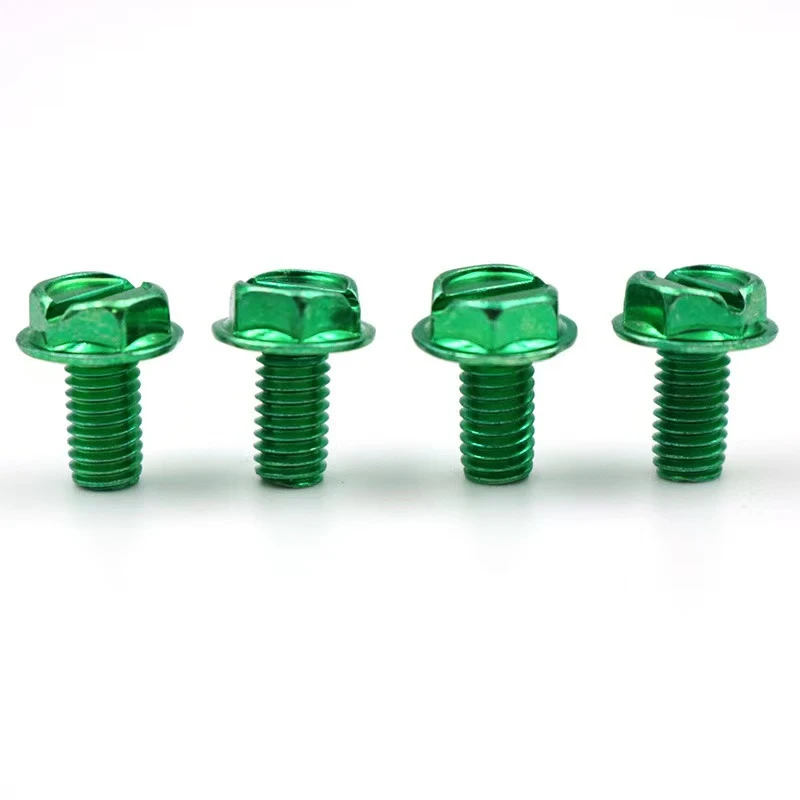

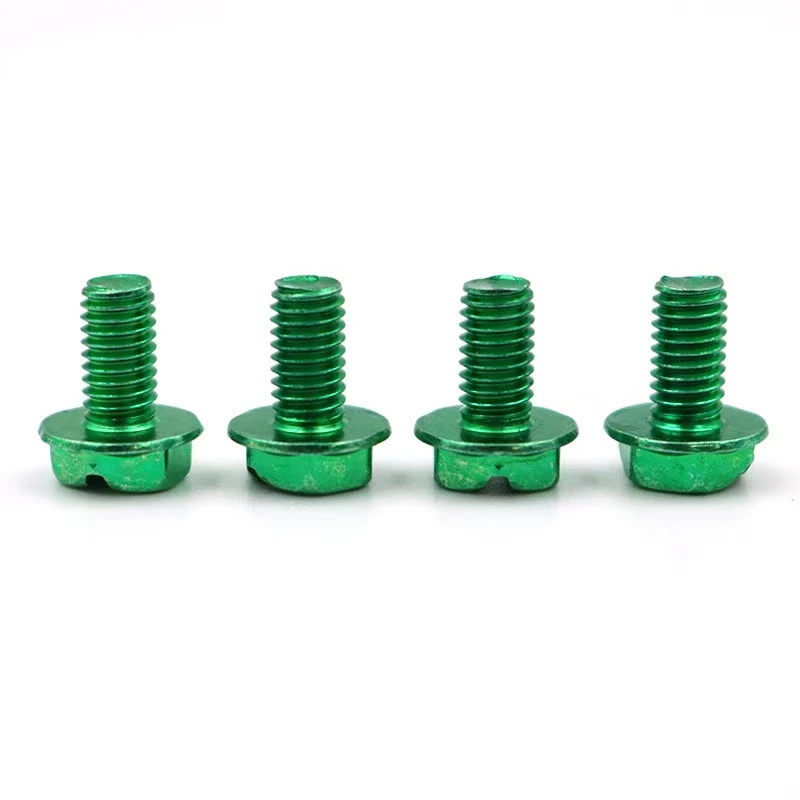

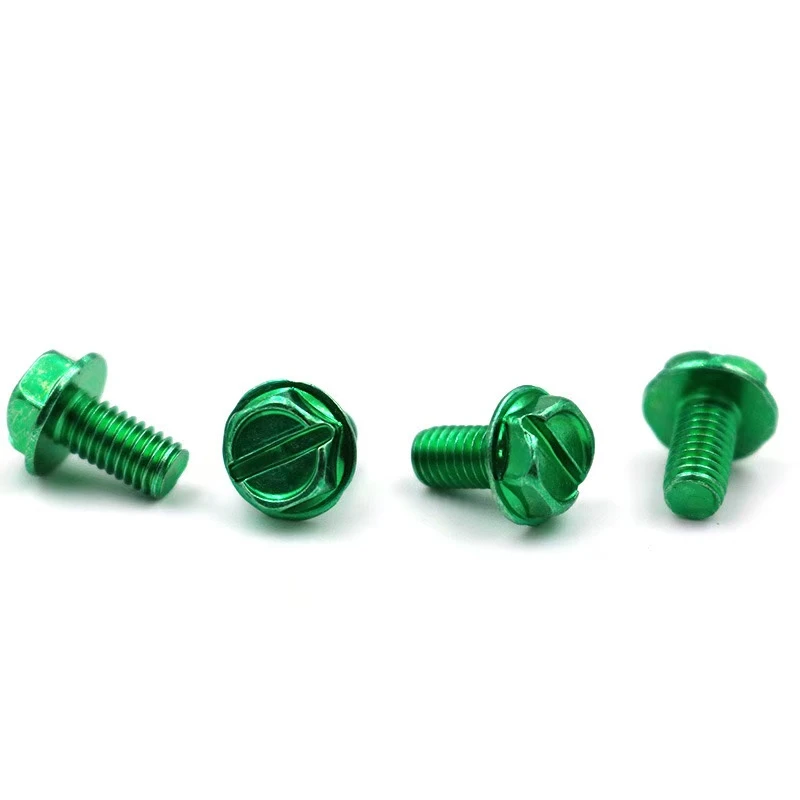

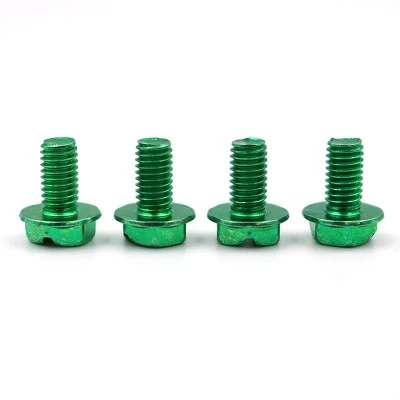

8-32 10-24 Hexagon Slotted Green Zinc Grounding Screw. This "grounding screw" is a specific specification grounding screw primarily used for grounding electrical equipment or metal structures. Below is an introduction to its core features.
1. Core Function
Electrical Grounding
This metal screw reliably connects the equipment housing or conductive components to the grounding system, creating a low-impedance path that safely conducts leakage current, static electricity, or fault current to the ground, ensuring personal safety and preventing interference with equipment.
Mechanical Fixing
The hexagonal design provides high torque tightening capacity, ensuring stable contact between the equipment grounding terminal and the ground terminal in environments with vibration and impact, preventing loosening and grounding failure.
Corrosion Protection
The green zinc coating offers oxidation and corrosion resistance, making it suitable for humid and industrial environments, and thereby extending the service life of the grounding system.
2. Key Features
Structural Design
External Hexagonal Head: Compatible with wrenches or socket tools for high-strength tightening.
Slotted Head: Supports screwdriver-assisted installation or fine-tuning, suitable for confined spaces or complex tooling requirements.
Full Thread/Partial Thread: Select according to the application. Full thread enhances the contact surface, while partial thread provides precise positioning.
Electrical Performance
Low Contact Resistance: The screw and contact surface must be cleaned to ensure that the ground loop impedance meets safety standards.
Coating Conductivity: Green zinc coating offers superior conductivity compared to other coatings (such as colored zinc), balancing corrosion resistance and electrical connection.
Material and Processing
Material: Typically, low-carbon steel, stainless steel can be used for demanding applications.
Green Zinc Treatment: The passivation film enhances salt spray resistance, making it suitable for outdoor and harsh environments.
3. Typical Applications
Electronic Equipment: Chassis and circuit board ground terminal mounting.
Power Systems: Distribution cabinet and transformer ground bar installation.
Industrial Equipment: Connection between metal frames, rails, and grounding conductors.
4. Selection Considerations
Size Compatibility: 8-32 is suitable for lightweight equipment, while 10-24 is suitable for higher loads.
Compatibility: Verify that the thread type matches the mounting hole to avoid thread stripping.
Environmental Compatibility: For high-humidity or chemical environments, it is recommended to additionally check the plating thickness.
Through this design, these screws strike a balance between electrical safety and mechanical reliability, making them a cost-effective, standardized component in grounding systems.
