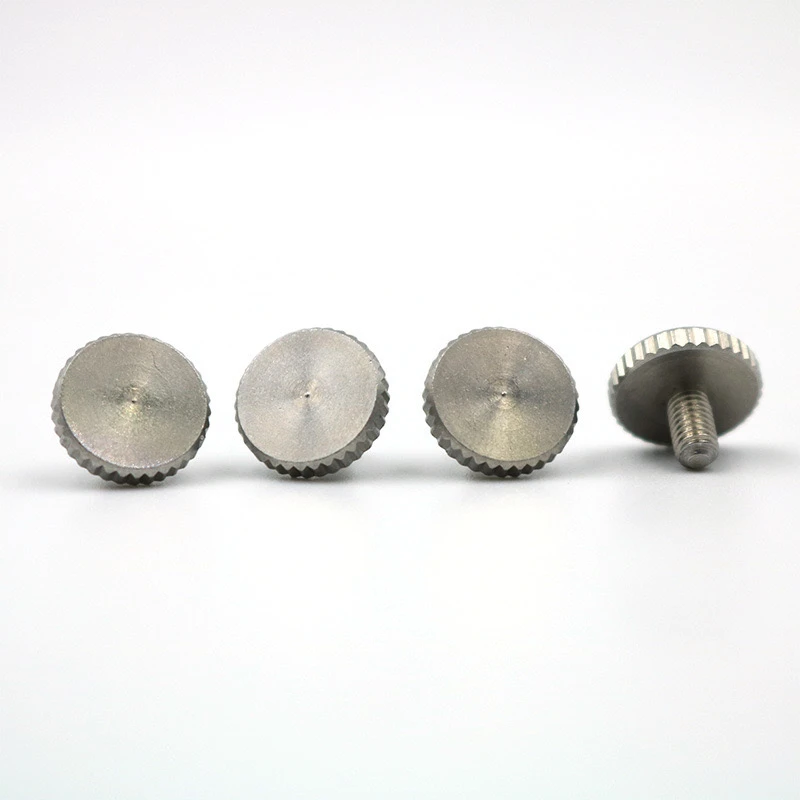

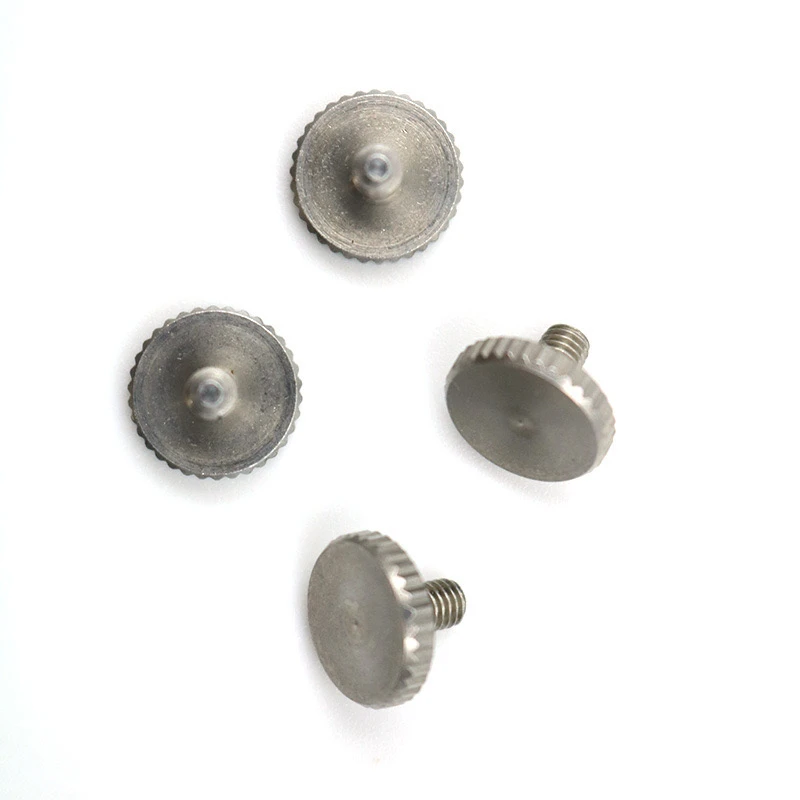

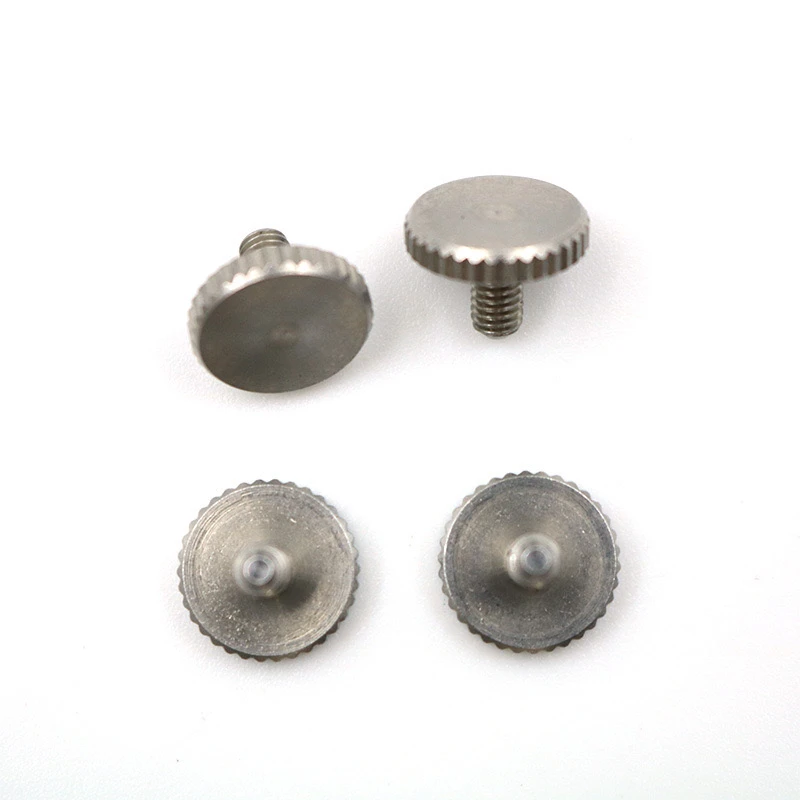

303 stainless steel American thread automatic lathe straight knurled hand screw is a specific type of manual fastener. Its core functions and technical points are as follows.
1. Core functions
(1) Manual fast tightening/disassembly
Straight knurling design: Increase friction through uniform straight lines on the surface. It can be operated by hand without tools. It is suitable for frequent adjustments or space-constrained scenarios.
Ergonomic optimization: The knurling spacing and depth are calculated to balance anti-slip and hand comfort.
(2) High-precision thread matching
American unified thread standard (UNC/UNF): Complies with ASME B1.1 standard to ensure compatibility with American nuts/screw holes and has strong adaptability.
Automatic lathe processing: The thread tolerance is controlled within ±0.01mm to ensure smooth screwing and prevent loosening.
(3) Materials and durability
303 stainless steel: Sulfur-containing free-cutting stainless steel, taking into account mechanical properties and processing efficiency, and resistant to weak corrosive media.
Surface treatment: optional passivation or nickel plating to further improve rust resistance and maintain metallic luster.
(4) Compatibility with automated production
Automatic lathe processing optimization: A CNC lathe is used for one-time forming to reduce secondary clamping, and threads, knurling, head chamfering, and other processes are integrated, with the single-piece working time controlled within 30 seconds.
2. Key process details
Knurling processing: Double-wheel rolling process is used, with a texture depth of 0.2-0.3mm and a density of 8-12 teeth/inch to avoid burrs and clear textures.
Stress relief annealing: Low-temperature annealing after turning to eliminate internal stress and prevent subsequent deformation.
Thread finishing: The transition zone adopts a gradual retreat finishing to avoid the first tooth from cracking.
3. Typical application scenarios
Precision equipment: optical instrument focusing screws, laboratory fixtures.
Consumer electronics: camera battery compartment cover, audio knob.
Industrial maintenance: control cabinet panel quick release screws, motor protective cover fixing.
4. Key points of quality control
Full inspection items: thread go/no-go gauge test, knurl visual inspection requires no cracks, surface roughness Ra≤1.6μm.
Sampling inspection items: no red rust after 48 hours of salt spray test, torque test ≥1.2 times the nominal torque.
Through the design and process control described above, it can be seen that the screw strikes a balance between functionality, production efficiency, and reliability, and is suitable for medium and high intensity use requirements.
