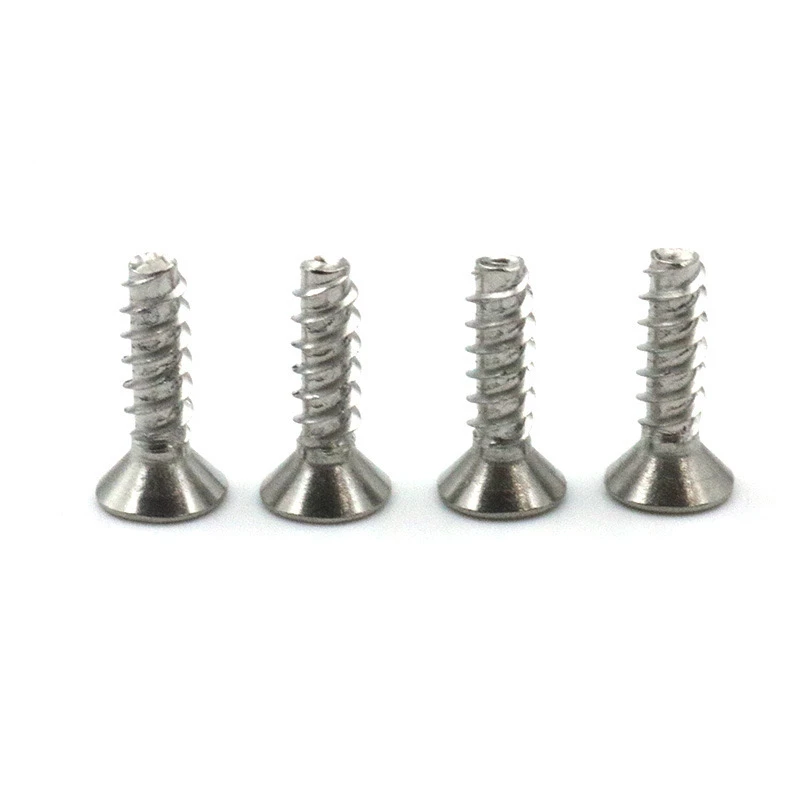

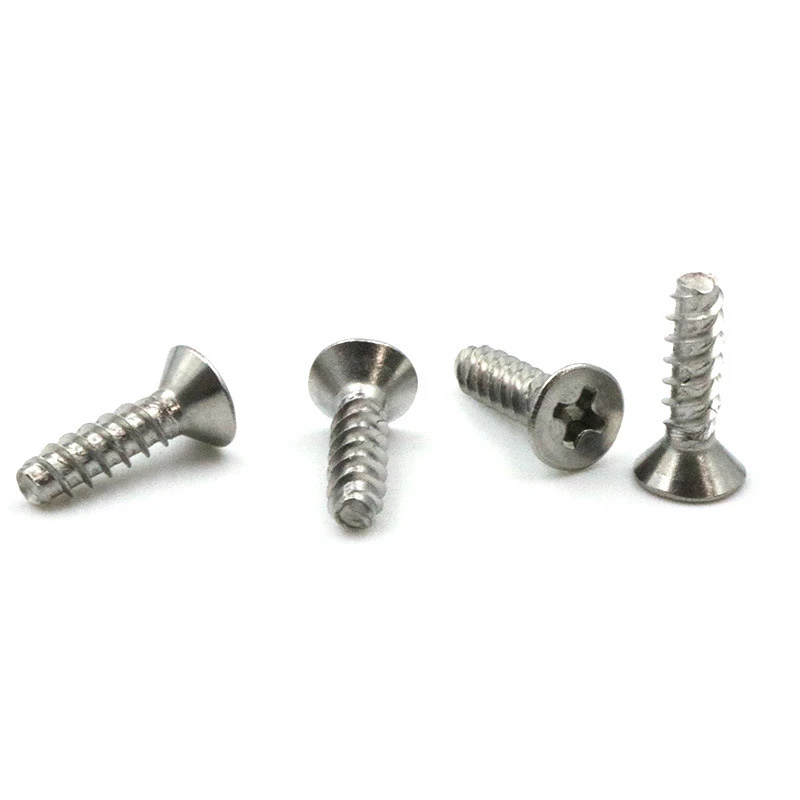

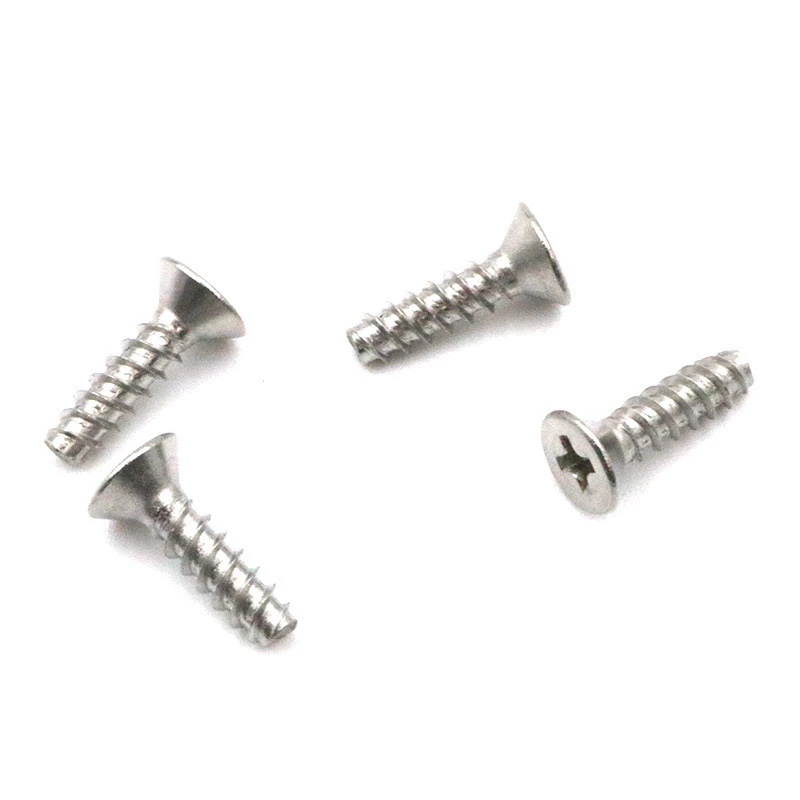

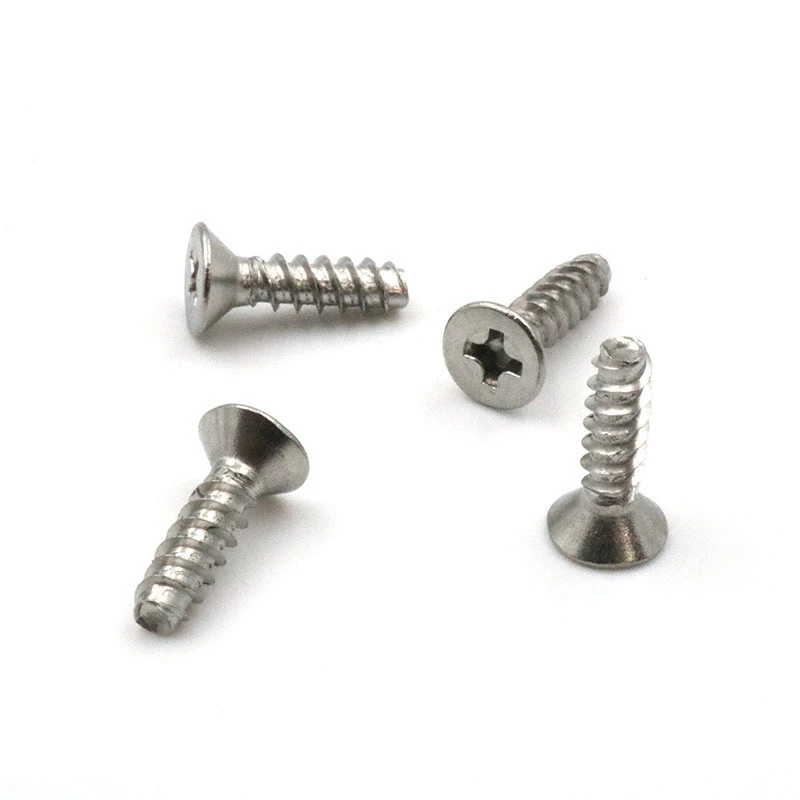

304 stainless steel cross countersunk flat tail self-tapping screw (also known as flat tail self-tapping screw) is a mechanical part designed for efficient fastening. Its greatest function and core advantages are mainly reflected in the following aspects. Below, we will break it down into five points based on material characteristics and structural design.
1. Efficient self-tapping ability: The pre-drilling-free design allows the flat tail structure to be combined with the self-tapping thread, which can be directly extruded into internal threads on thin metal plates, plastics, or wood, eliminating the drilling step and improving installation efficiency. The tip of the thread is hardened to strike a balance between the corrosion resistance and cutting performance of the material.
2. Fixed and flat surface: The flat head structure allows the top of the screw to be completely embedded in the material surface to avoid protrusions, ensuring a neat appearance of the assembly, and is suitable for scenes with high requirements for surface flatness.
Reduce stress concentration: The flat head has a larger contact surface, disperses the load pressure, and reduces the risk of local deformation of the fastened material. The flat tail design stops advancing after penetrating the material to protect the back panel or internal components, which is very suitable for electronic equipment box assembly.
The core advantage of 304 stainless steel: 304 stainless steel contains 18% chromium and 8% nickel, which can resist moisture, weak acid and weak alkali environments, and is suitable for outdoor and other high humidity environments, chemical equipment, and other easily corrosive scenes. Compared with ordinary carbon steel screws, 304 stainless steel screws maintain medium mechanical strength and are not easy to rust or age after long-term use, extending the service life.
4. High bonding strength and anti-loosening
Tight thread bite: The pitch of the self-tapping thread is wider, and it forms a high-density bite with the material after tapping, and the anti-vibration loosening is better than mechanical threads.
Cross groove drive: It provides higher torque transmission efficiency than the slotted groove, but it is necessary to match it with the power tool to prevent slipping.
5. Multi-functional adaptability
High material compatibility: In addition to metal, it can also be used for high-density plastics or composite panels.
Flexible specifications: Common diameters are M2-M6, and lengths are 4-20mm, which can meet the diverse needs from precision electronics to building curtain walls.
Typical application scenarios
Wooden structure: furniture assembly, wooden doors and windows fixing, flat tail to reduce wood splitting.
Metal sheet connection: such as air conditioner housing, metal roof, electrical box, self-tapping thread that directly bites a thin plate.
Plastic parts fixing: PVC pipes, plastic panels, etc., to avoid stress cracking caused by pre-drilling.
Outdoor facilities: 304 material is suitable for occasions such as railings and billboards that require weather resistance.
The core value of 304 stainless steel cross countersunk flat tail self-tapping screws is to improve installation efficiency through the pre-drilling-free design, use the flat tail and countersunk structure to achieve beauty, anti-loosening and anti-cracking, and with stainless steel material to ensure durability, it is an ideal choice for corrosion resistance, flat installation and medium load scenarios.
