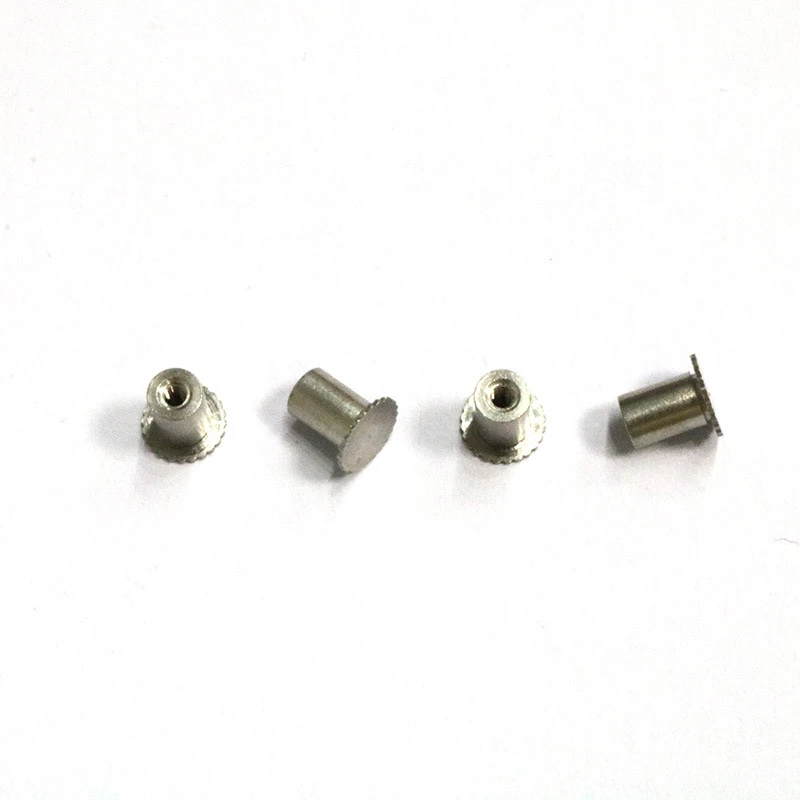

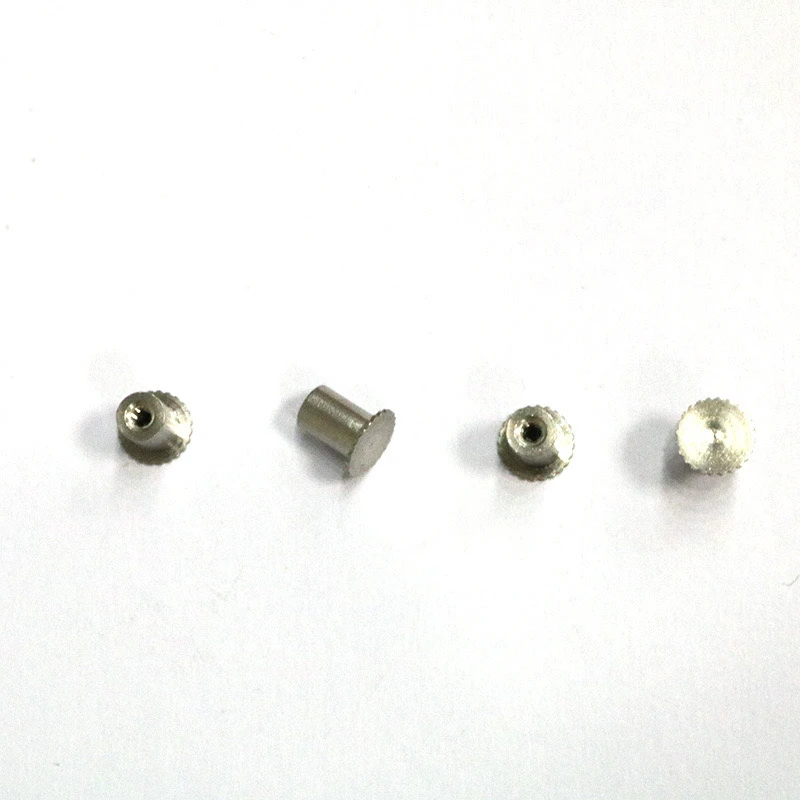

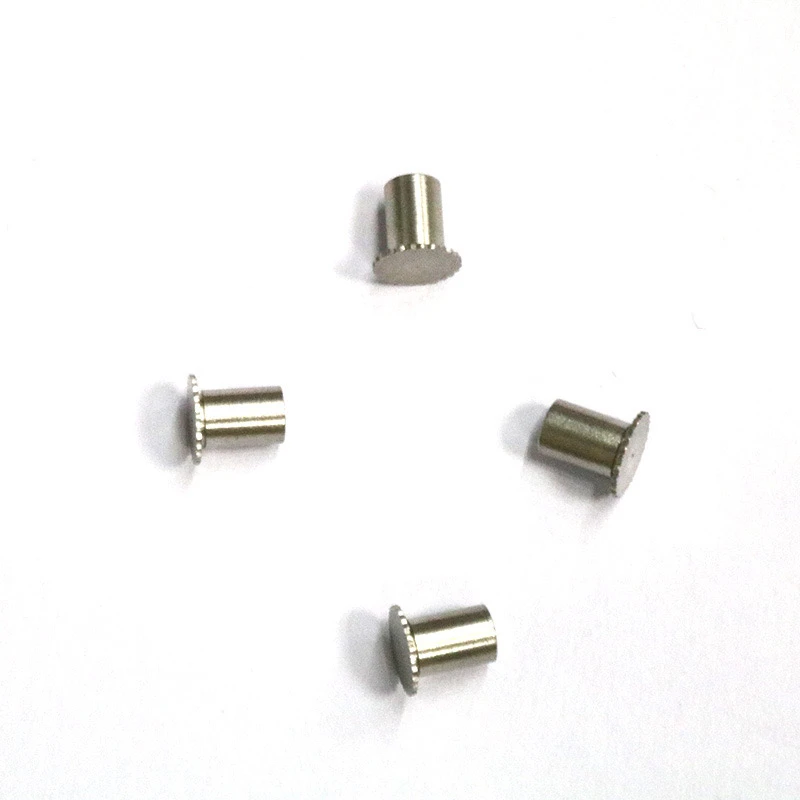

The core functional design of the 303 stainless steel blind hole flower tooth nut column is closely combined with its material properties and structural characteristics, mainly serving the scenes of high-precision assembly, anti-vibration loosening, and complex space constraints.
Core Function Positioning
Blind hole structure hidden installation: The top closed design avoids visible screw holes from the outside, improves the integrity of the product appearance, and is very suitable for consumer electronics, medical devices and other fields with high appearance requirements.
Anti-foreign body intrusion: The closed end blocks dust and liquid from entering the threaded hole, protects the internal connection structure, and is often used in outdoor equipment.
Flower tooth design
Anti-rotation locking: The flower teeth (straight grain/net grain) on the outer wall are plastically deformed when pressed into the mounting plate, and 360° anti-rotation is achieved through mechanical bite (torque resistance>5 N·m).
Anti-axial disengagement: The flower teeth are embedded in the base material to form an interference fit, and the axial tension must be>500 N to be pulled out, which greatly limits the disengagement, which is much higher than ordinary bare rod nut column.
303 stainless steel characteristics
Easy cutting: sulfur content (0.15% min) improves turning efficiency, and is more suitable for blind hole internal thread processing than 304 and 316 stainless steel.
Medium corrosion resistance: passivation treatment can reach 120 h+ salt spray protection, which can meet the needs of general industrial environments.
Core application scenarios
Scenario Functional value
In PCB board fixing, the flower tooth design can prevent the vibration displacement of the circuit board, and the blind hole prevents solder from penetrating into the threaded hole (common in telecommunications base stations and industrial controllers).
The thin plate structure is enhanced, and it is pressed on 0.8~2mm sheet metal, which can provide high-strength threads ≥M3 to avoid deformation during chassis welding (applied on chassis and instrument panels).
Modular quick-release design embedded nut columns realize non-destructive disassembly and assembly of components (applied in medical equipment housings and drone battery compartments).
Assembly in a small space, the blind hole structure saves top space and is suitable for bolt tightening in the cavity (applied in optical equipment, micro sensors).
Design taboos
Unsuitable scenarios: continuous contact with seawater/acidic chemical media. If contact is unavoidable, be sure to upgrade to 316L stainless steel. When used in a vibration environment with an axial impact load of >800N, it is recommended to use a combination of through-hole bolts + anti-loosening washers. It is best not to install ultra-thin plates with a thickness of <0.6mm, because the press-fitting of the flower teeth can easily cause the substrate to deform.
Assembly points:
Vertical force must be applied during press-fitting, and tilted press-fitting will cause unilateral failure of the flower teeth.
The aperture of the substrate is controlled according to the H7 tolerance, and the interference is most suitable to be controlled at 0.05~0.08mm.
Efficiency design suggestions
Conductive requirements: Surface silver plating (local treatment of blind hole opening) for grounding circuits (impedance <0.1Ω).
Extreme anti-loosening: Add a micro-rolled ring groove at the root of the flower teeth to increase the pull-out resistance by 30%.
Lightweight: The bottom of the blind hole is thinned to 0.3mm, suitable for small specifications below M2.
The essence of this component is a vibration-resistant thread reinforcement in space-constrained scenarios. Through the three-in-one design of flower teeth-blind hole-stainless steel, it can replace traditional welding nuts/self-tapping screws in the fields of precision electronics, automobiles, medical care, etc., achieving a balance between reliability and assembly efficiency.
