Button Head Sealing Screw

Button Head Sealing Screw

Details
The button head sealing screw with a black rubber seal and designed for high-performance applications. Combining the strength of stainless steel with the added protection of a black rubber seal, this screw provides reliable sealing and durability in demanding environments.
Category
Sealing Screw
Share to
Send Inquiry
Description
Technical Parameters
some statistics about us you must know

Choose the plan that suits you best.

18

+

YEARS OF EXPERIENCE

3000㎡+

FLOOR SPACE

160

+

MACHINERY EQUIPMENT

3500

+

SATISFIED CUSTOMERS



The button head sealing screw with a black rubber seal and designed for high-performance applications. Combining the strength of stainless steel with the added protection of a black rubber seal, this screw provides reliable sealing and durability in demanding environments.

The button head sealing screw are made of stainless steel, this screw is built to withstand heavy loads and pressure, which makes it ideal for use in applications where high-strength fastening is essential.

The black rubber seal provides exceptional resistance to moisture, acids, bases, and other harsh environments. It ensures the screw remains stable and performs well in conditions where exposure to chemicals or extreme weather is common.

The black rubber seal helps prevent water, dust, and other contaminants from entering, which makes it perfect for applications where a tight seal is necessary to protect sensitive components. They are perfect for boats and ships, where exposure to water and corrosive environments requires reliable sealing and strong fasteners.

The button head sealing screw with black rubber seal is the perfect combination of strength, durability, and aesthetic appeal, making it a top choice for applications that demand both performance and appearance.



Specification





Standard ISO,JIS,GB,ANSI,BSW,DIN or non standard as customize
Material 1.Stainless Steel:SS201,SS303,SS304,SS316,SS410,SS420
2.Steel:C45(K1045),C46(K1046),C20
3.Brass:C36000(C26800),C37700(HPb59),C38500(HPb58),c27200Cuzn37),C2800(CuZn40)
4.Bronze:C3604,C52100,H62,H65,etc
5.Iron:1213,12L14,1215
6.Aluminum Alloy:Al6061,Al6063,A7075,etc
7.Carbon steel:C1006,C1010,C1018,C1022,C1035K,C1045,C435#,40CrMo,42CrMo
8.Alloy steel:SCM435,10B21
9.According to customer demand
Grade 4.8,6.8,8.8,10.9,12.9,etc
Size M2-M24 or made to print as customer's specification
Specifications Various shape size according to client's requirement
Thread UNC,UNF,Metric thread
Finish Plain,Zinc Plated(Clear/Blue/Yellow/Black),Ni-plated,black oxide,Sandblast and Anodized,H.D.G,DAC,GOEMET,as custom need
Package Plastic bag + outer carton + pallets

button head sealing 1

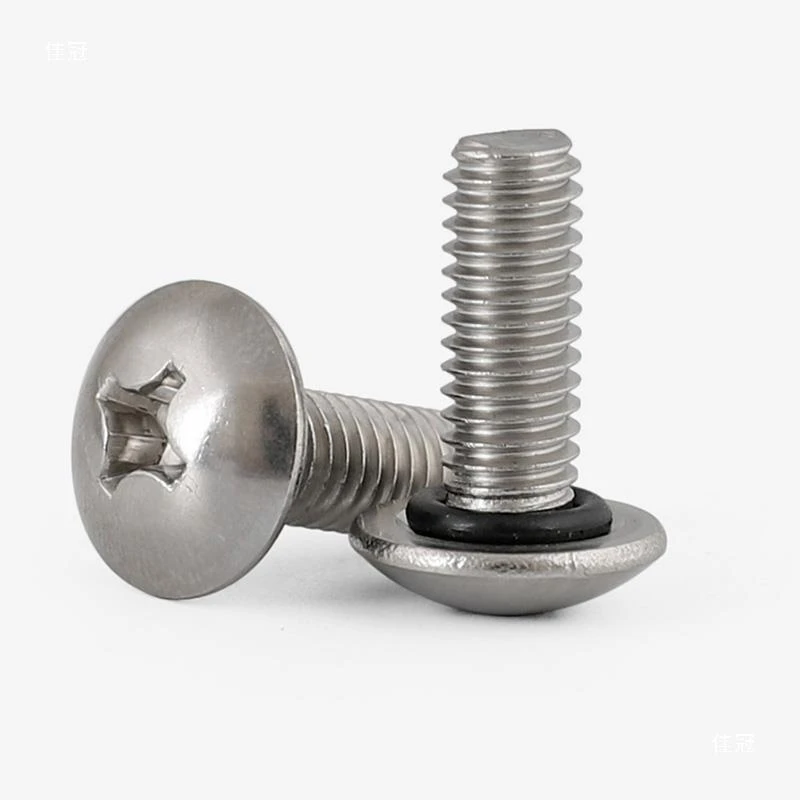

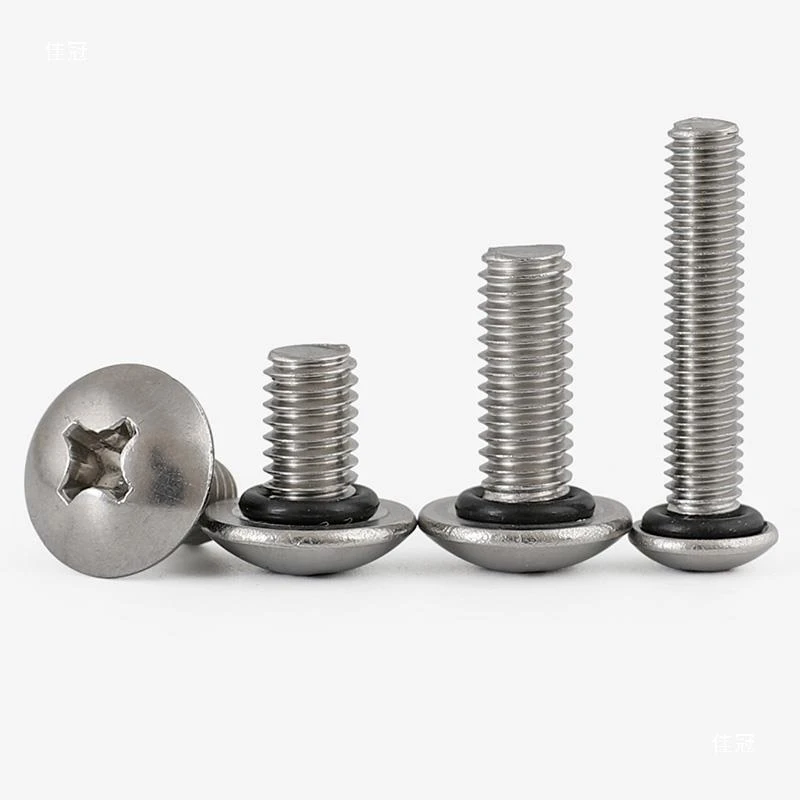

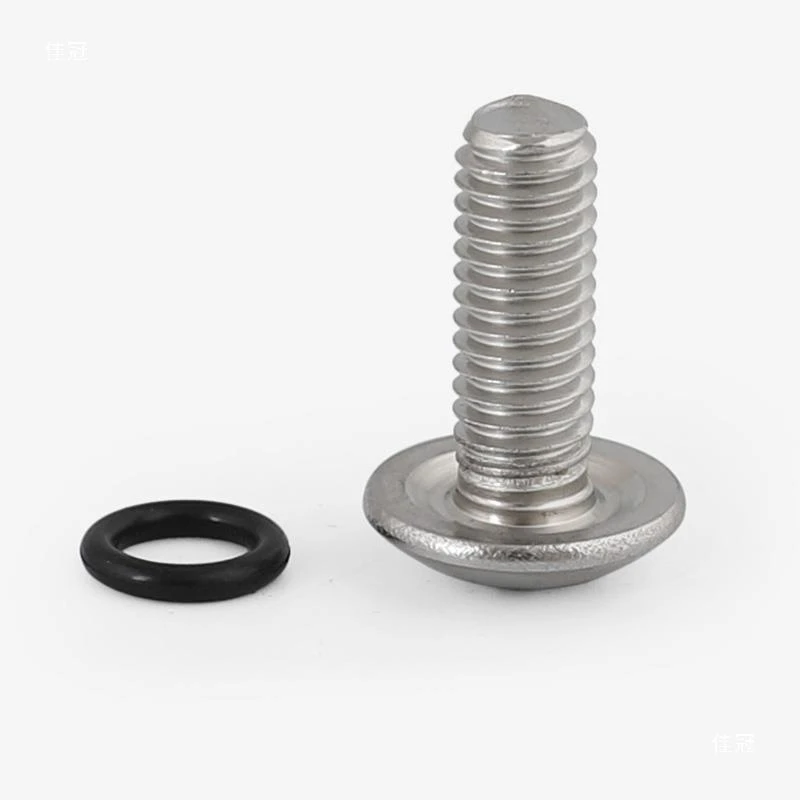

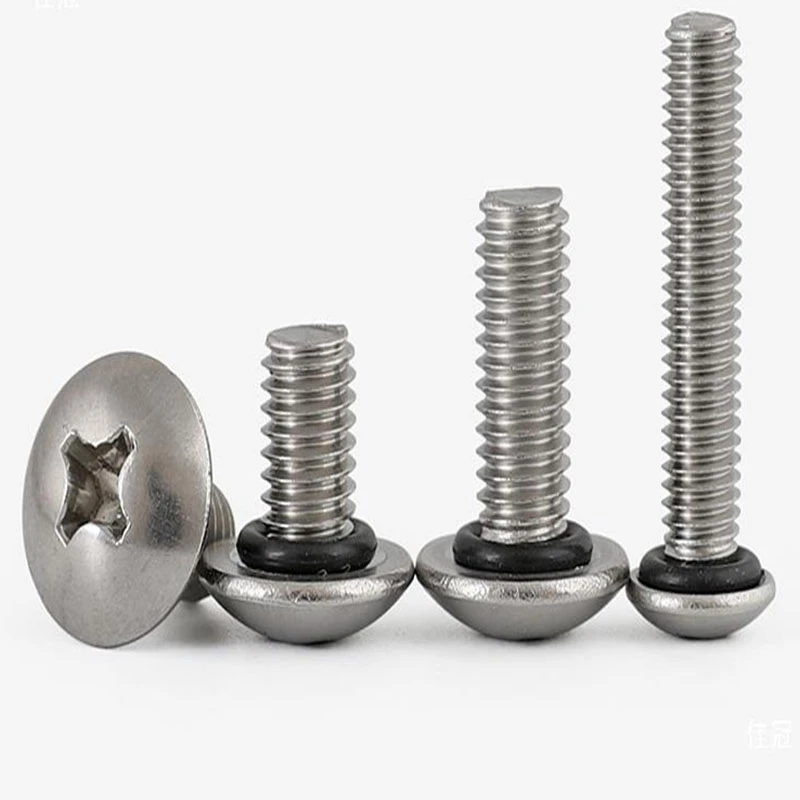

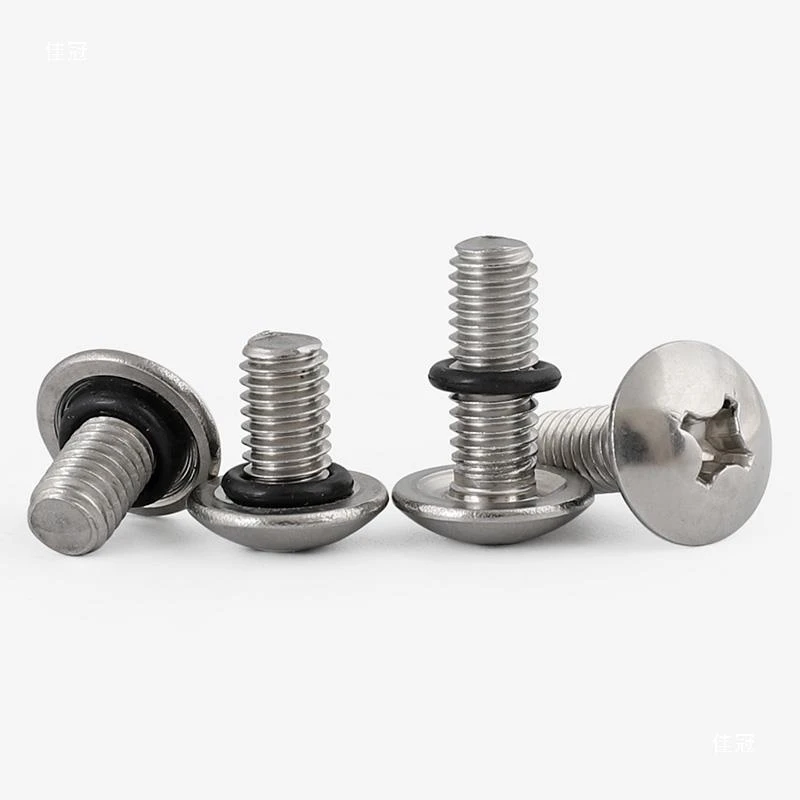

Product Picture





button head sealing 2
button head sealing 3
button head sealing 4
button head sealing 5
button head sealing 6



Production Process





1Raw Material
Raw Material
2 Cold Forging
Cold Forging
3 Threading
Threading
4 Auto Lathe
Auto Lathe
5 Auto Lathe
Auto Lathe
6Table Lathe
Table Lathe
7CNC Lathe
CNC Lathe
8Quality Checking
Quality Checking
9 Inspection
Inspection
10 Packing
Packing



Quality Control





1 Clipers Micrometer
Clipers Micrometer
2 Torque
Torque
3 Depth Micrometer
Depth Micrometer
4 Plug
Plug
5 Thread Guage
Thread Guage
6 Ring Guage
Ring Guage
7 Hardness Tester
Hardness Tester
8Projector
Projector
9 Salt Spray Testing
Salt Spray Testing



Surface Treatment





Offer a variety of surface treatments for our screws to meet different needs and environmental conditions. Such as zinc plating, nickel plating, hot-dip galvanizing, anodizing, zinc nickel alloy, dacromet coating, phosphating, etc.



product-549-536



Custom Service





With 18 years of experience in the fasteners area, Zeyao Hardware specializes in manufacturing custom fasteners, including screws, bolts, nuts, rivets, standoffs, spacers, wrenches, pins, and more. Welcome to send your inquiries to get a free quote.



product-911-416
