Long Nose Spring Plunger
Zeyao Hardware, a China fastener manufacturer with 19 years of production experience, provides high-performance Long Nose Spring Plungers designed for accurate positioning, indexing, and locking in mechanical assemblies. With 100+ advanced machines and strong OEM/ODM capabilities, we support wholesalers, distributors, brands, and custom project buyers with reliable products and flexible customization options.
The long-nose spring plunger is a mechanical fastener that is designed for precise positioning and secure fastening. with its extended nose, allowing it to reach deep into components for a reliable fastening.

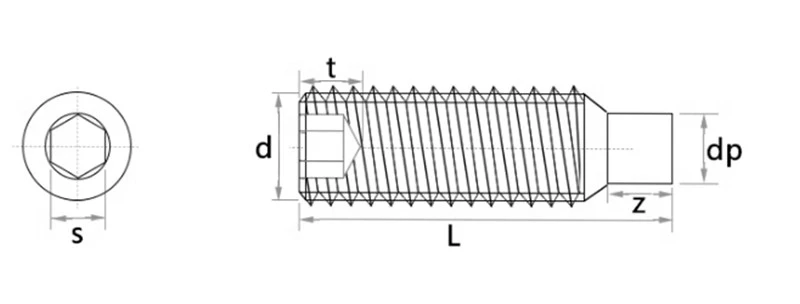

Specification
|
Diameter d |
Pitch P |
S |
t |
dp |
Z |
Matching Wrench |
||||
|
nom |
max |
min |
min |
max |
min |
max |
min |
|||
|
M3 |
0.5 |
1.5 |
1.545 |
1.52 |
1.2 |
2 |
1.75 |
1.75 |
1.5 |
1.5mm |
|
M4 |
0.7 |
2 |
2.045 |
2.02 |
1.5 |
2.5 |
2.25 |
2.25 |
2 |
2mm |
|
M5 |
0.8 |
2.5 |
2.56 |
2.52 |
2 |
3.5 |
3.2 |
2.75 |
2.5 |
2.5mm |
|
M6 |
1 |
3 |
3.06 |
3.02 |
2 |
4 |
3.7 |
3.25 |
3 |
3mm |
|
M8 |
1.25 |
4 |
4.095 |
4.02 |
3 |
5.5 |
5.2 |
4.3 |
4 |
4mm |
|
M10 |
1.5 |
5 |
5.095 |
5.02 |
4 |
7 |
6.64 |
5.3 |
5 |
5mm |
|
M12 |
1.75 |
6 |
6.095 |
6.02 |
4.8 |
8.5 |
8.14 |
6.3 |
6 |
6mm |

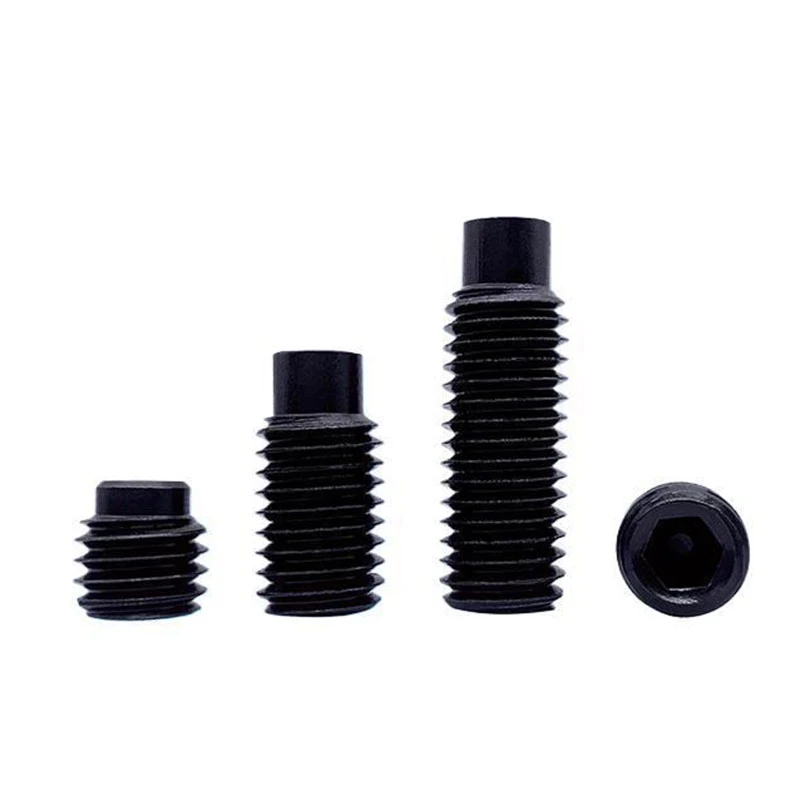

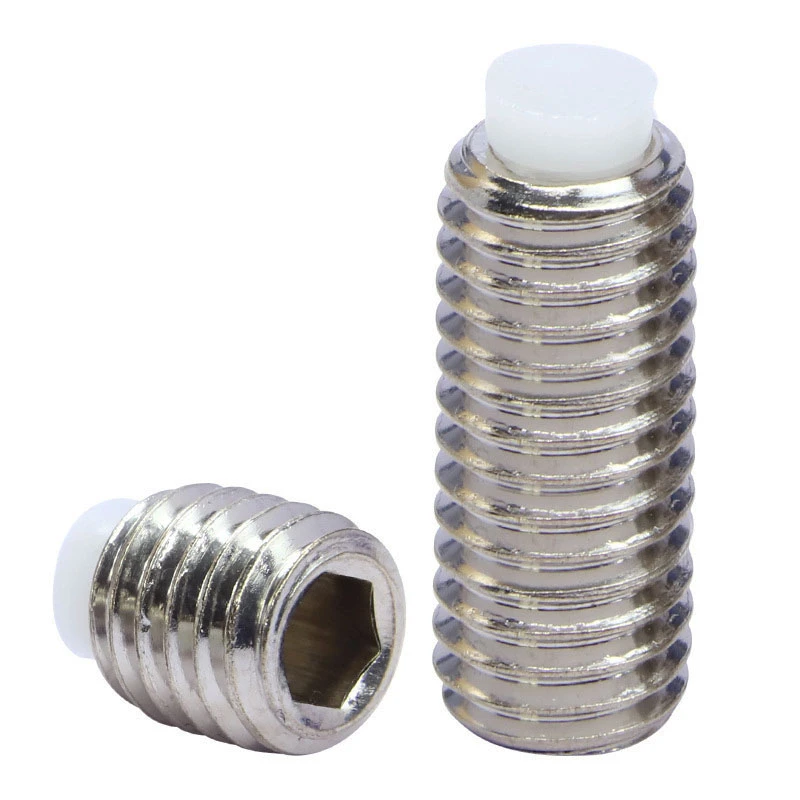

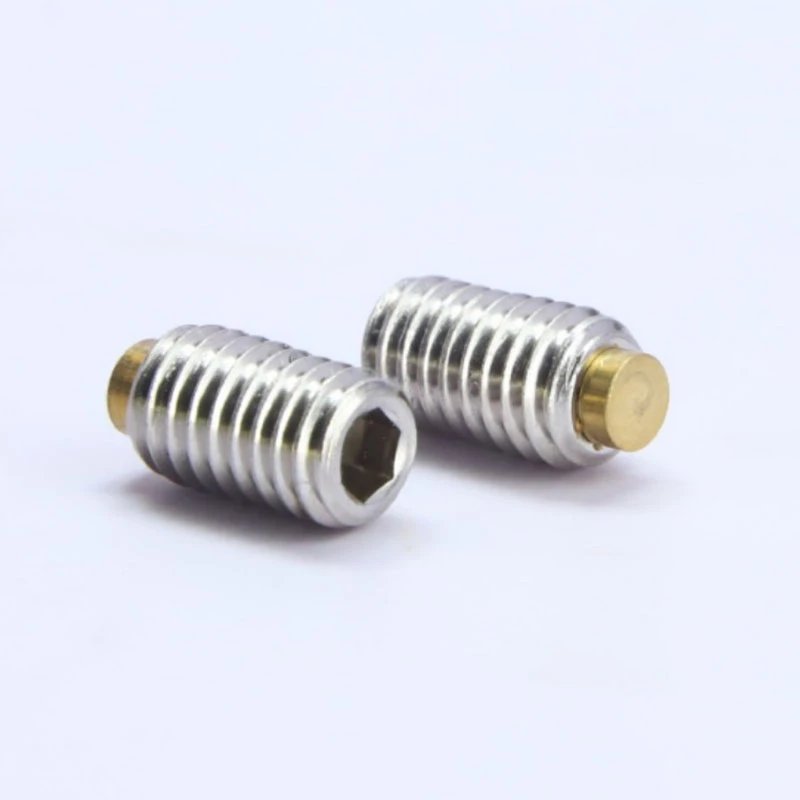

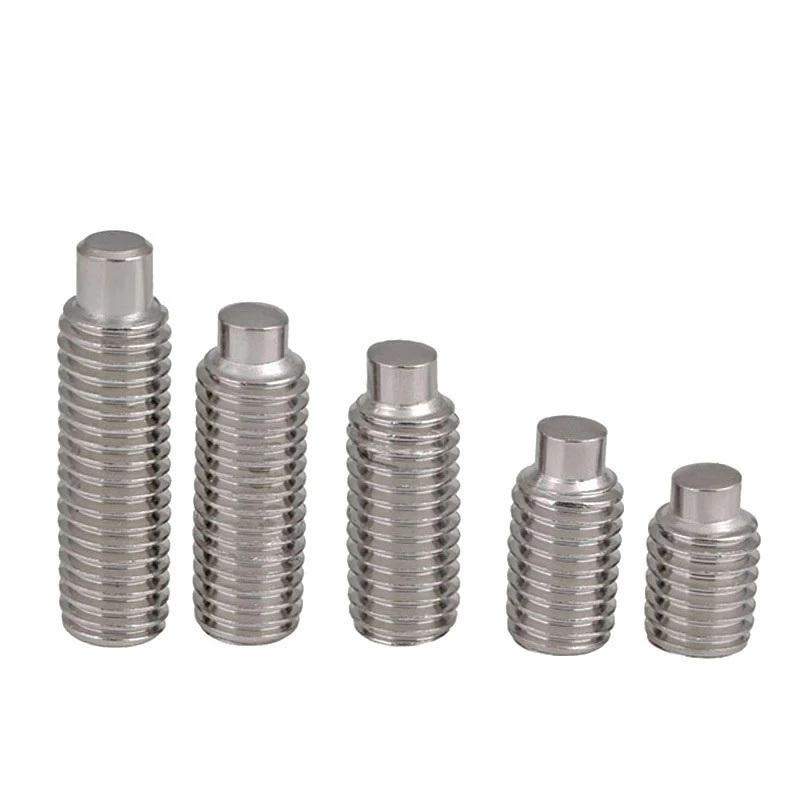

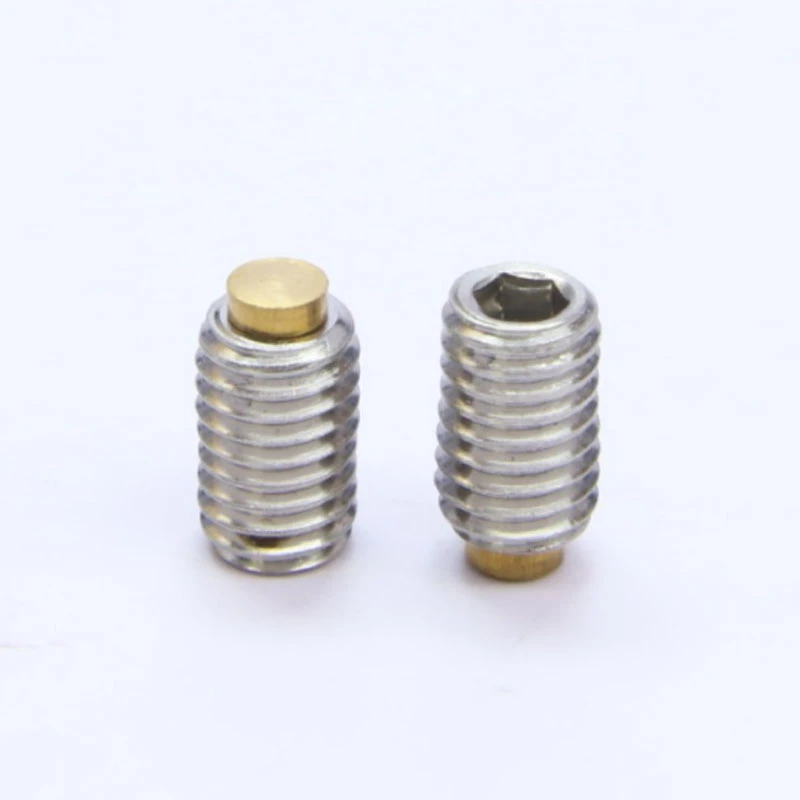

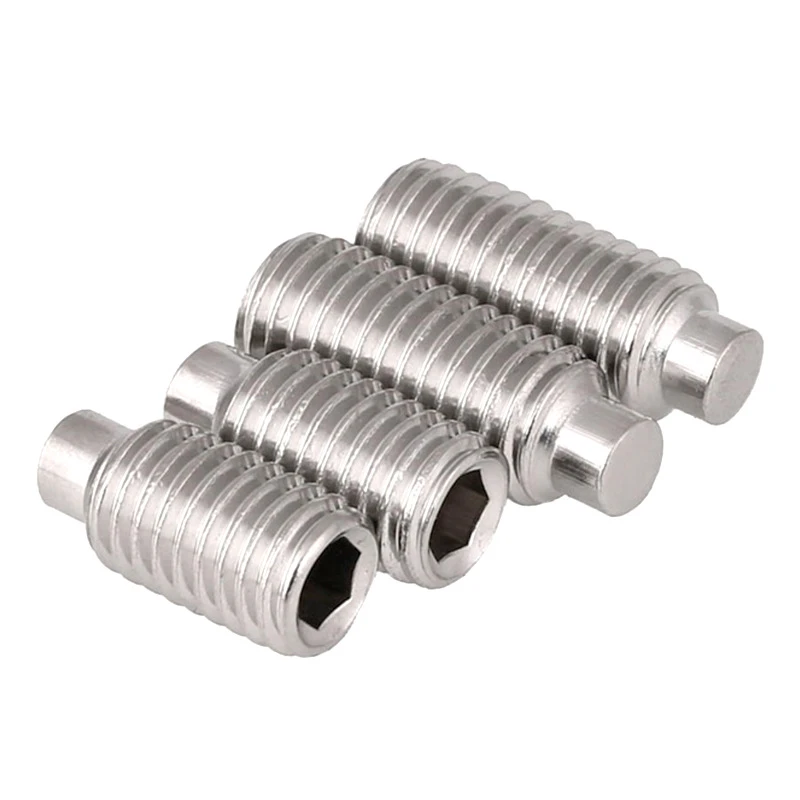

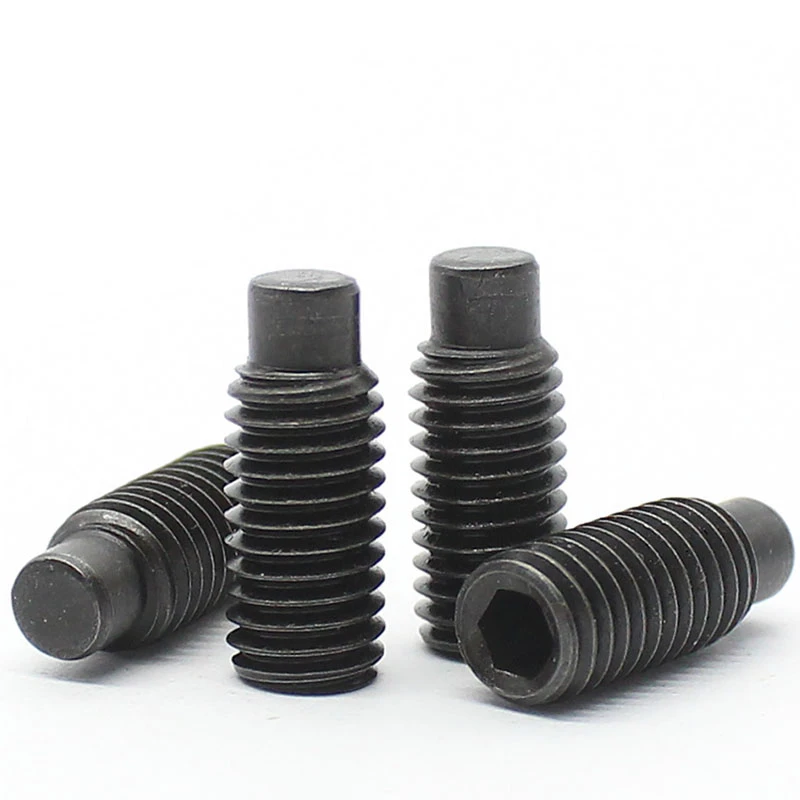

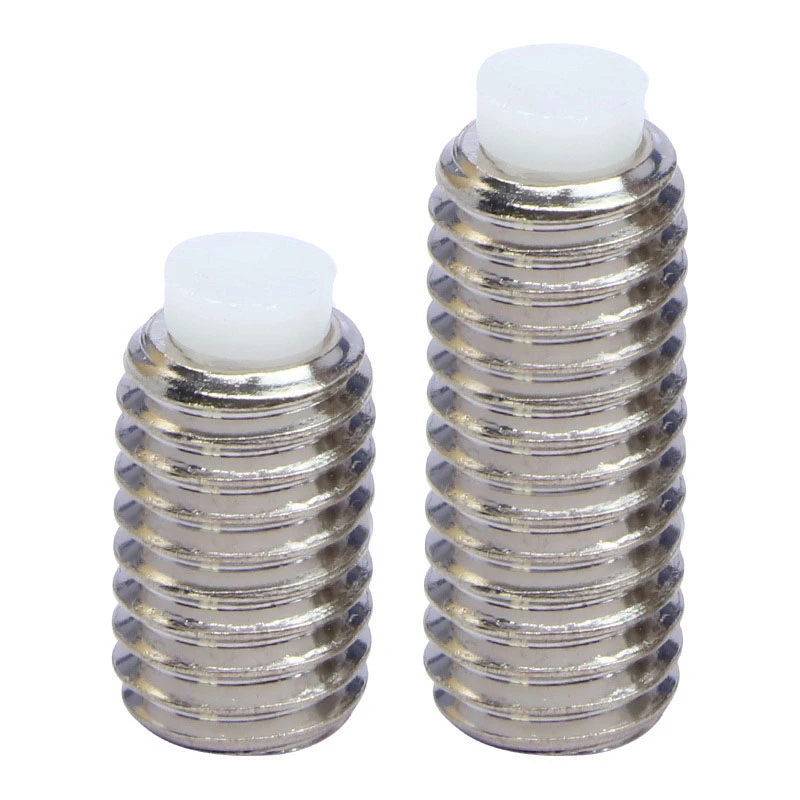

Product Picture
Product Parameters
|
Item |
Details |
|
Product Name |
Long Nose Spring Plunger |
|
Material |
Stainless Steel |
|
Nose Type |
Extended Nose |
|
Surface Finish |
Zinc Plated / Black Oxide / Passivated |
|
Spring Material |
High-Strength Steel |
|
Installation |
Threaded / Press Fit |
|
Size Range |
Standard & Custom Sizes Available |
|
Tolerance |
Precision Machined |
|
MOQ |
Negotiable |
|
Customization |
Size, Material, Surface, Logo, Packaging |
19+ Years of Manufacturing Experience
Trusted China fastener manufacturer & supplier for global buyers.
100+ Advanced Machines
Ensuring stable quality, fast production, and bulk supply capacity.
Strict Quality Control
ISO9001 certified production with 100% inspection for critical dimensions.
OEM & ODM Support
Full customization options for dimensions, materials, surface treatments, packaging, and branding.
Global Supply Capability
Serving wholesalers, brand owners, distributors, and OEM project clients worldwide.
Production Process
As a fastener manufacturer with 19 years of experience, Zeyao boasts a comprehensive production system, ensuring consistent quality and on-time delivery for every fastener.
1. Raw Material
We purchase high-quality metal wire and strictly sort it into batches upon arrival, preparing it for subsequent processing.
2. Cold Heading
A cold heading machine processes the raw material into the basic shape of the fastener.
3. Thread Rolling
Next, threading, also known as threading, is performed to ensure the screw or bolt has a standard, clear profile.
4. Automatic Lathe Processing
Fully automatic lathes are used to further refine parts, including chamfering, turning, and slotting, to enhance dimensional accuracy.
5. Benchtop and CNC Lathe Finishing
For complex or customized fasteners, we use benchtop lathes and CNC machines for further processing to ensure they meet specific customer requirements.
6. Quality Inspection
All products undergo rigorous manual and automated inspections to eliminate defective items and ensure that every shipment meets customer standards.
7. Functional Testing
Some products undergo specialized testing equipment to verify key indicators such as hardness, thread accuracy, and external dimensions.
8. Packaging and Shipping
Products are sorted, packaged, labeled, and boxed automatically or manually, and then neatly stacked in the warehouse for shipment.
Whether you need standard parts or custom parts, Zeyao can provide you with high-quality solutions.
Send us your drawings or requirements to get a personalized OEM/ODM quote today!
FAQ
FAQ
Q: What is the function of a long nose spring plunger?
A: A long nose spring plunger is primarily used for positioning, locking, and guiding in mechanical assembly.
Q: What material is it made of?
A: Made of stainless steel.
Q: Can it be customized?
A: Yes, we support OEM/ODM customization.
Q: What surface finishes are available for fasteners?
A: These include zinc plating, blackening, passivation, nickel plating, and more.
Q: Are you a screw manufacturer?
A: Yes, we have 19 years of R&D and production experience.
Q: What is the minimum order quantity for screws?
A: We accept small orders. Please contact us for details.
Q: Can I get a sample before mass production?
A: We can provide samples.
