Flat Head Sealing Screw

Flat Head Sealing Screw

Details
The flat-head sealing screw is designed with a flat head, which sits flush with the surface, preventing accidental bumps or scratches. The screw with a special sealant under the head to prevent water leakage, this makes it ideal for applications that require both strong fastening and waterproofing.
Category
Sealing Screw
Share to
Send Inquiry
Description
Technical Parameters
some statistics about us you must know

Choose the plan that suits you best.

18

+

YEARS OF EXPERIENCE

3000㎡+

FLOOR SPACE

160

+

MACHINERY EQUIPMENT

3500

+

SATISFIED CUSTOMERS



The flat-head sealing screw is designed with a flat head, which sits flush with the surface, preventing accidental bumps or scratches. The screw with a special sealant under the head to prevent water leakage, this makes it ideal for applications that require both strong fastening and waterproofing.

The flat head helps reduce the risk of the screw with surrounding and helps to reduce the risk of damage when installation. It is great for furniture assembly, cabinet installation, and home renovations.

This screw features a waterproof seal, a special water-resistant coating under the head of the screw to help it. This makes it effective in preventing moisture from entering the connection and makes it perfect for outdoor or high-humidity environments.

The flat-head sealing screw is the perfect solution when you need a reliable fastener that can enhance protection from water and dust. Its combined easy installation and aesthetic appeal, make it an excellent choice for a wide range of applications.



Specification





Standard ISO,JIS,GB,ANSI,BSW,DIN or non standard as customize
Material 1.Stainless Steel:SS201,SS303,SS304,SS316,SS410,SS420
2.Steel:C45(K1045),C46(K1046),C20
3.Brass:C36000(C26800),C37700(HPb59),C38500(HPb58),c27200Cuzn37),C2800(CuZn40)
4.Bronze:C3604,C52100,H62,H65,etc
5.Iron:1213,12L14,1215
6.Aluminum Alloy:Al6061,Al6063,A7075,etc
7.Carbon steel:C1006,C1010,C1018,C1022,C1035K,C1045,C435#,40CrMo,42CrMo
8.Alloy steel:SCM435,10B21
9.According to customer demand
Grade 4.8,6.8,8.8,10.9,12.9,etc
Size M2-M24 or made to print as customer's specification
Specifications Various shape size according to client's requirement
Thread UNC,UNF,Metric thread
Finish Plain,Zinc Plated(Clear/Blue/Yellow/Black),Ni-plated,black oxide,Sandblast and Anodized,H.D.G,DAC,GOEMET,as custom need
Package Plastic bag + outer carton + pallets

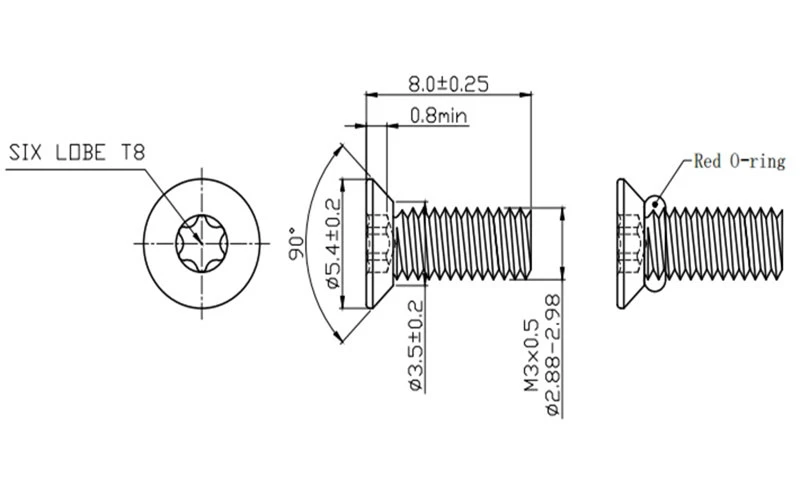

counsterunk sealing 1



Product Picture

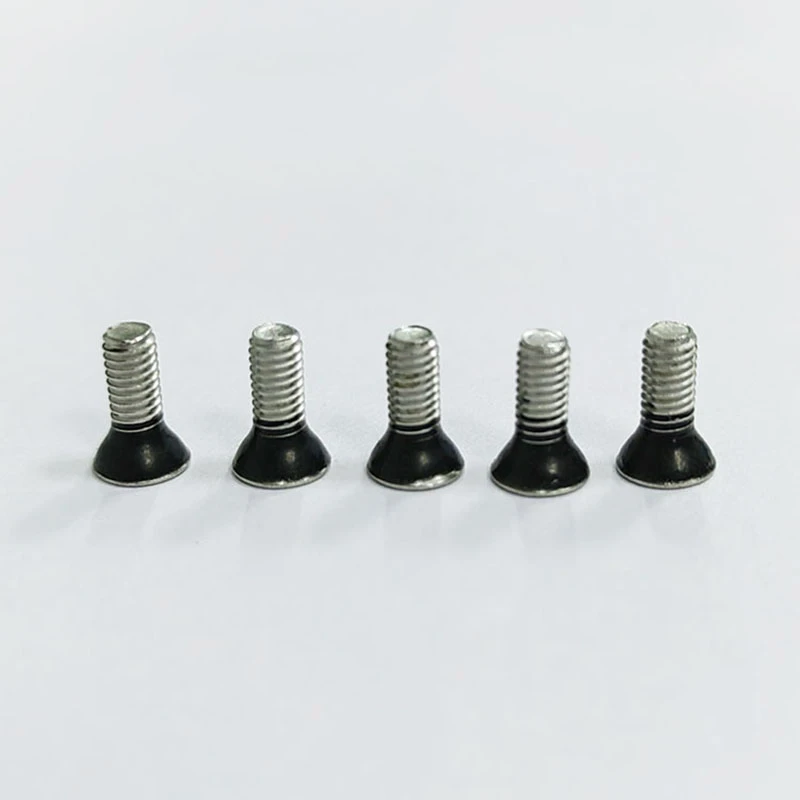

counsterunk sealing 2

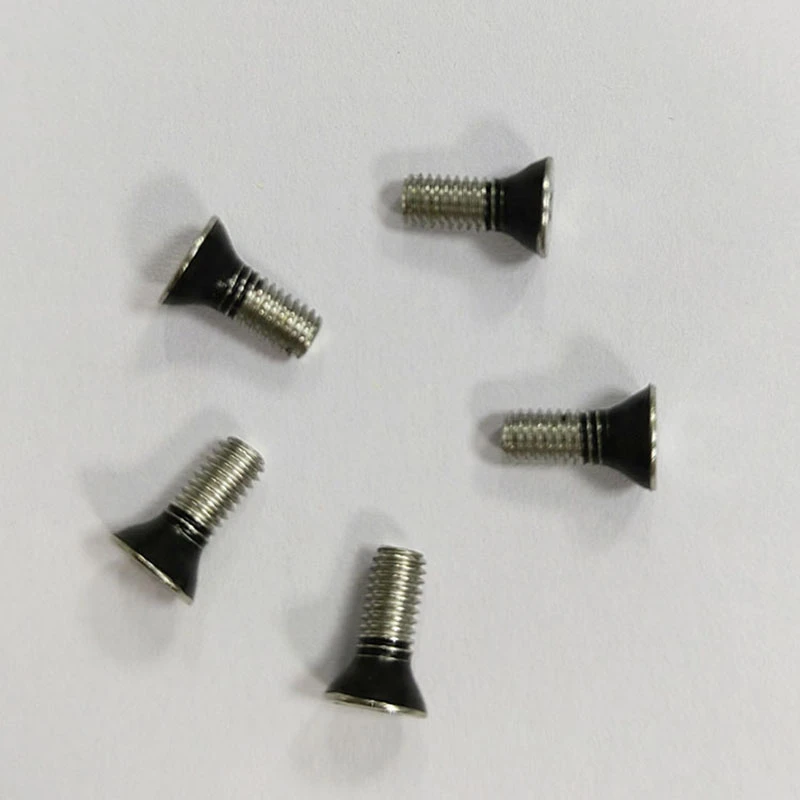

counsterunk sealing 3

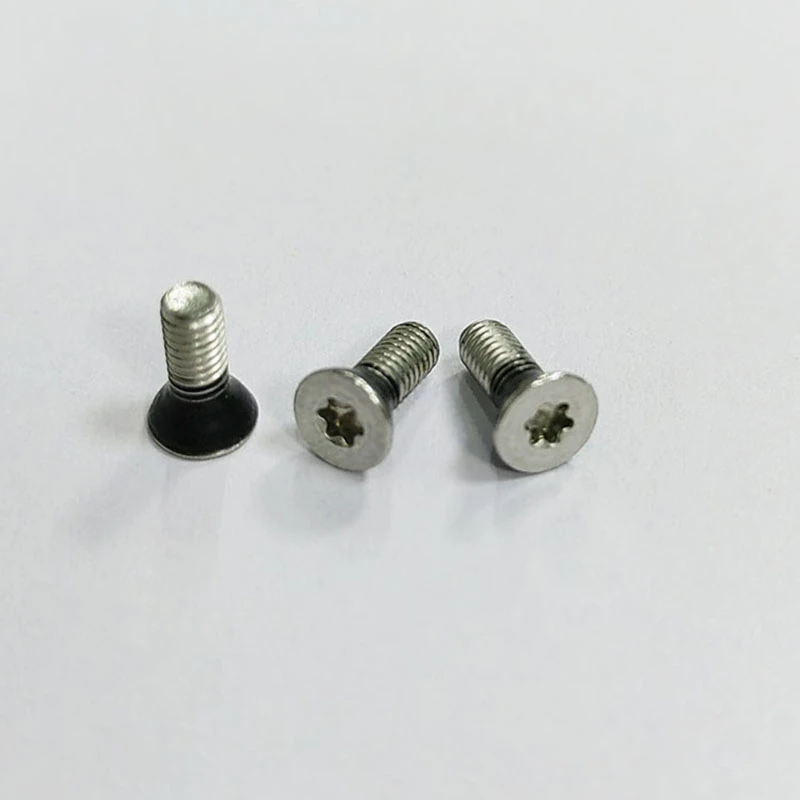

counsterunk sealing 4

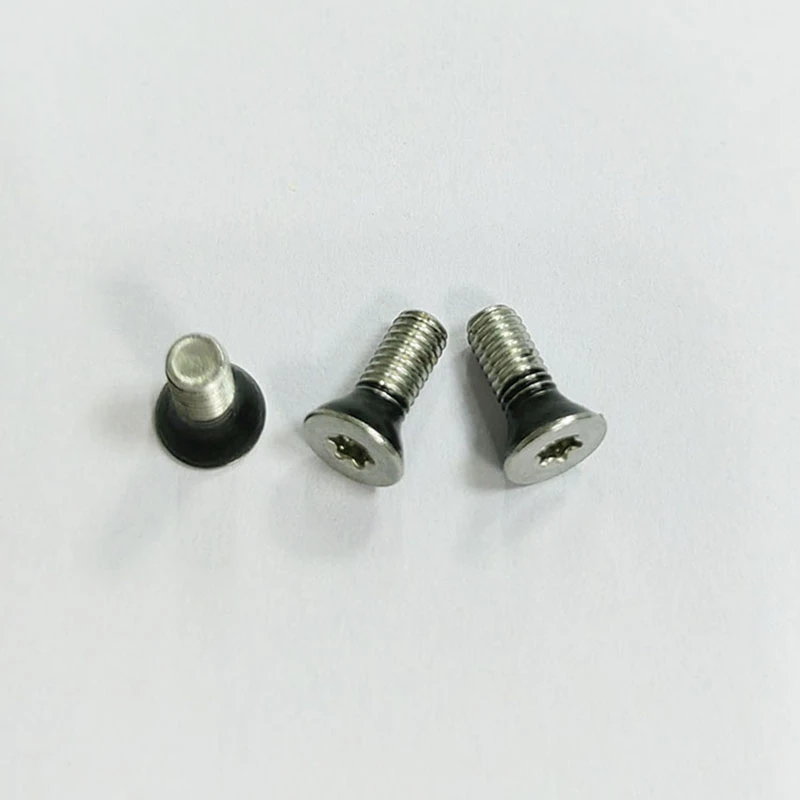

counsterunk sealing 5

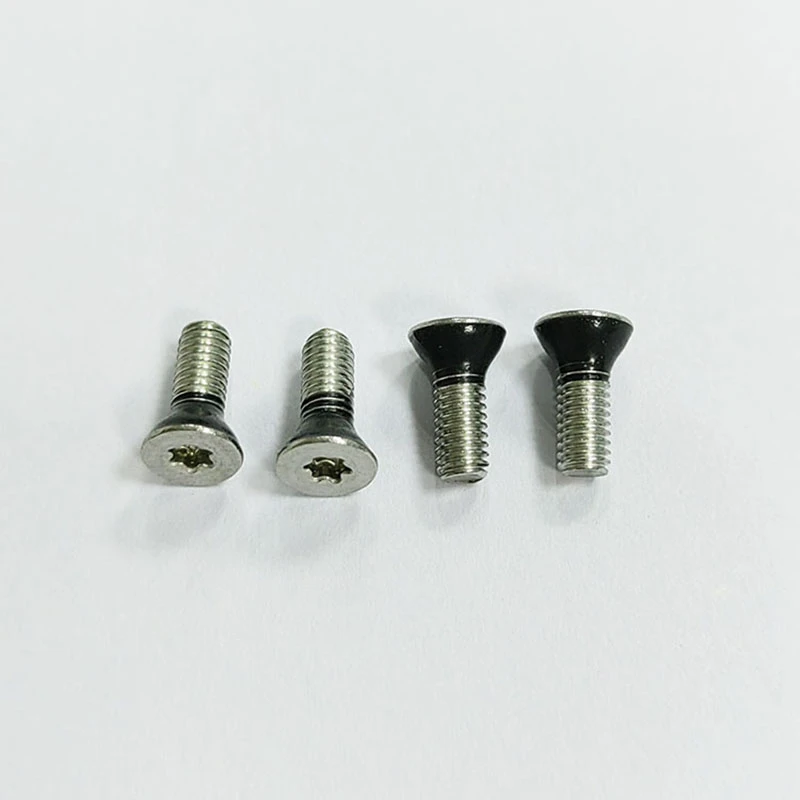

counsterunk sealing 6

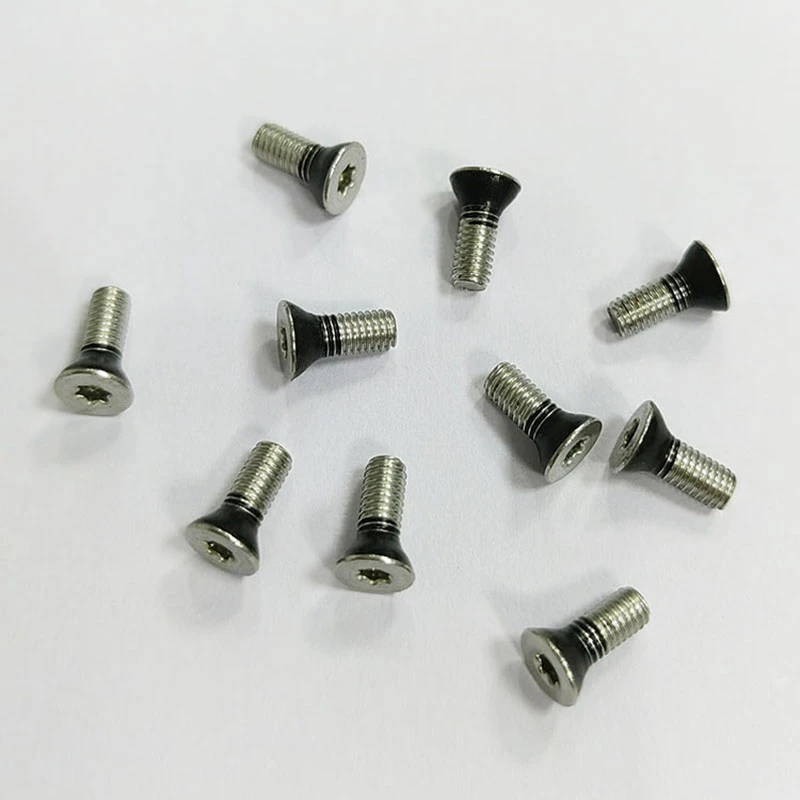

counsterunk sealing 7



Production Process





1Raw Material
Raw Material
2 Cold Forging
Cold Forging
3 Threading
Threading
4 Auto Lathe
Auto Lathe
5 Auto Lathe
Auto Lathe
6Table Lathe
Table Lathe
7CNC Lathe
CNC Lathe
8Quality Checking
Quality Checking
9 Inspection
Inspection
10 Packing
Packing



Quality Control





1 Clipers Micrometer
Clipers Micrometer
2 Torque
Torque
3 Depth Micrometer
Depth Micrometer
4 Plug
Plug
5 Thread Guage
Thread Guage
6 Ring Guage
Ring Guage
7 Hardness Tester
Hardness Tester
8Projector
Projector
9 Salt Spray Testing
Salt Spray Testing



Surface Treatment





Offer a variety of surface treatments for our screws to meet different needs and environmental conditions. Such as zinc plating, nickel plating, hot-dip galvanizing, anodizing, zinc nickel alloy, dacromet coating, phosphating, etc.



product-549-536



Custom Service





With 18 years of experience in the fasteners area, Zeyao Hardware specializes in manufacturing custom fasteners, including screws, bolts, nuts, rivets, standoffs, spacers, wrenches, pins, and more. Welcome to send your inquiries to get a free quote.



product-911-416



Hot Tags: flat head sealing screw, China flat head sealing screw manufacturers, suppliers, factory, Flat Head Sealing Screw, Sealing Tamper Resistant Torx Screw, Pan Head Sealing Screw, Hex Head Sealing Screw
