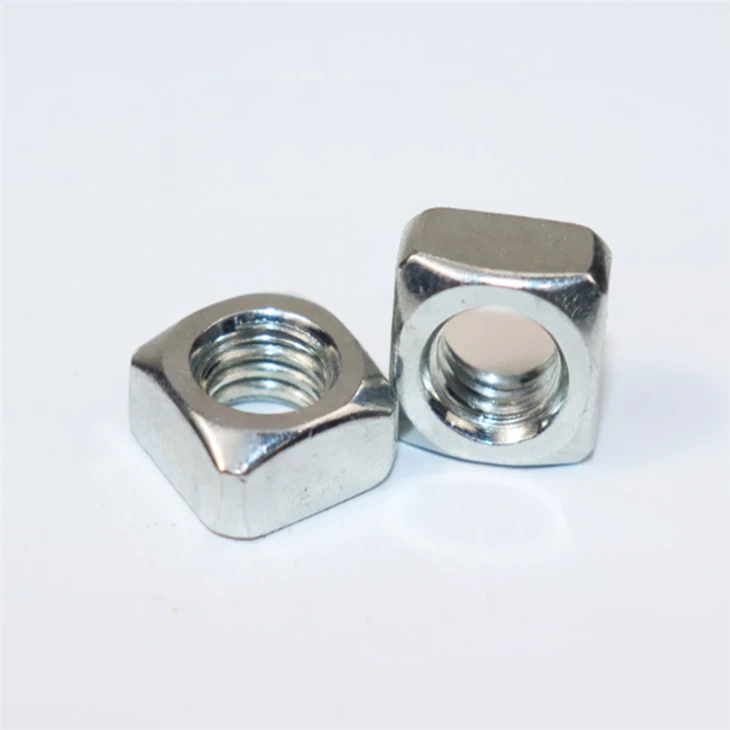

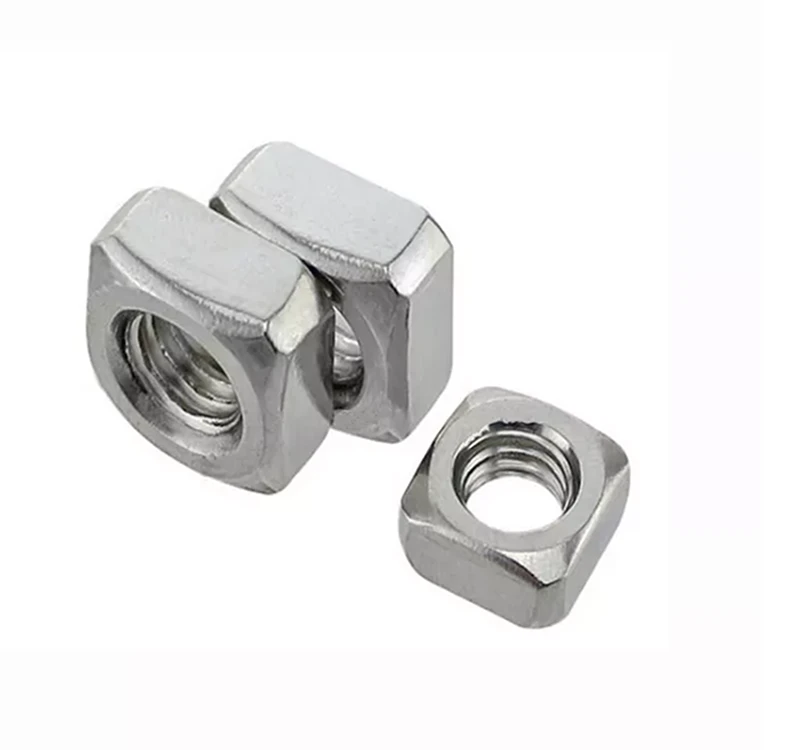

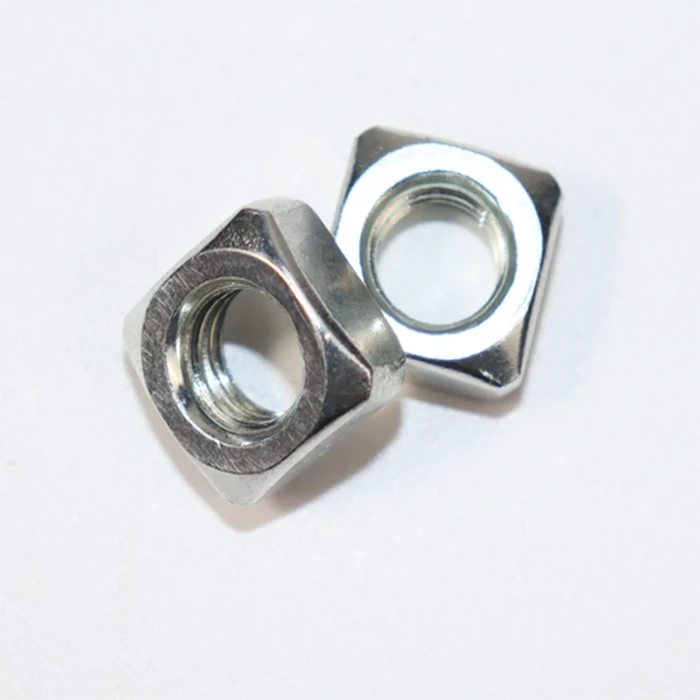

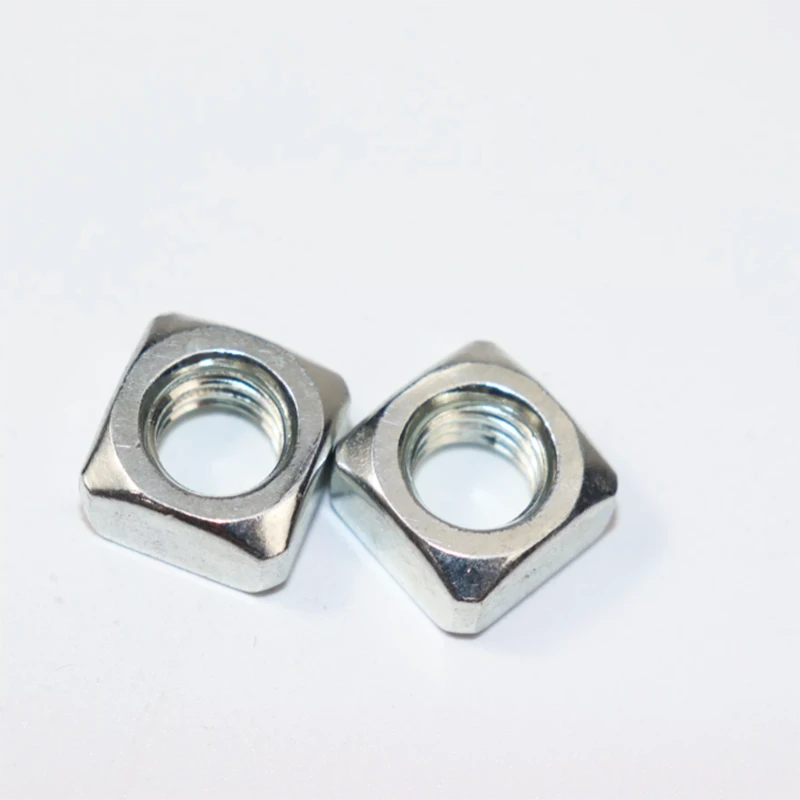

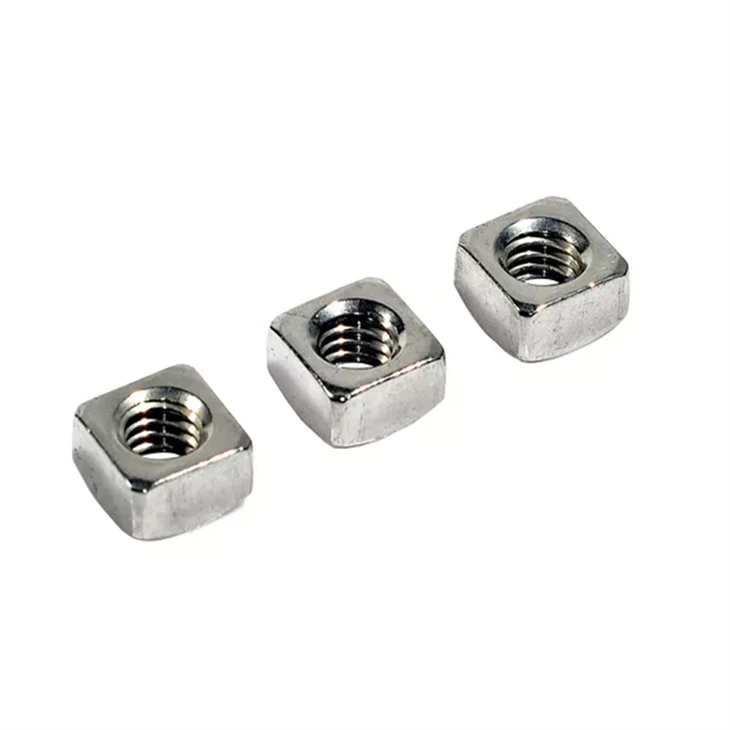

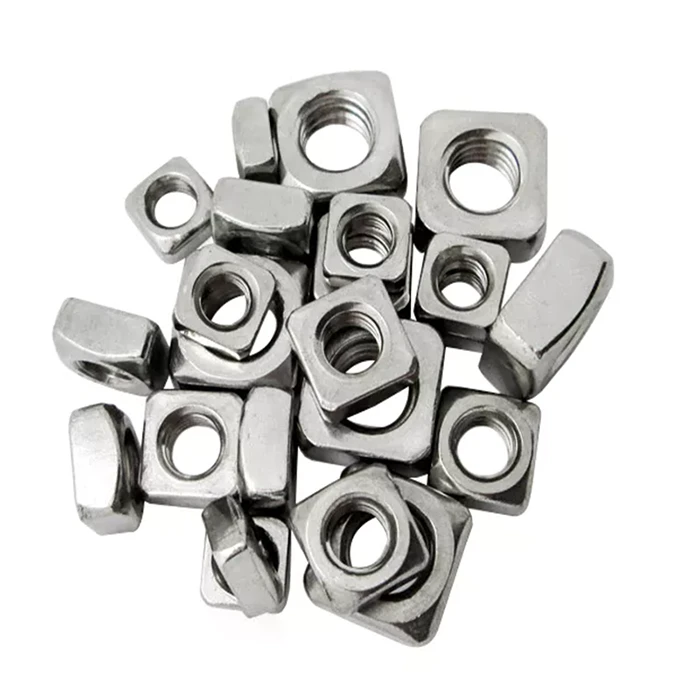

DIN557 Square Nut



DIN557 square nuts are fasteners used with bolts or threaded rods. They offer unique design and performance advantages, making them suitable for a variety of industrial applications.

Features of DIN557 square nuts
Material Properties
Corrosion-Resistant: Made of stainless steel (such as 304 and 316), they are rust-resistant, acid- and alkali-resistant, and suitable for humid, outdoor, and chemical environments.
Moderate Strength: The mechanical properties of stainless steel meet general requirements, but higher-grade materials are required for high temperatures or extreme loads.

Structural Design
Square Shape: Four right-angled sides allow for securement with a wrench or specialized tools, or recessed grooves to prevent rotation.
Asymmetrical Load Capacity: Compared to hexagonal nuts, square nuts are easier to install in confined spaces, but offer slightly lower torque resistance.

Mounting Methods
Flush Mount: Can be pre-embedded or pressed into a workpiece (such as wood or metal grooves) to prevent the nut from rotating with the bolt.
Flat Surface: After installation, the head conforms to the workpiece, minimizing protrusions for aesthetics and safety.

Thread Type: Typically metric coarse or fine threads, with custom American UNC/UNF threads available.

Main Applications
Machinery and Equipment Manufacturing
Used for structures that require anti-loosening (such as conveyor belt supports and agricultural machinery components). The square design prevents the nut from rotating.

Construction and Steel Structures
Connecting steel beams, guardrails, or metal frames, especially suitable for pre-buried installation (such as when used with anchor bolts).

Furniture and Woodworking
Embedded in wood or panels, used with lag bolts for concealed fastening (such as in assembling furniture and display cabinets).

Rail Transportation and Automotive
Connecting vehicle chassis or boxes, resistant to vibration, and easy to operate in confined spaces.

Marine and Chemical Equipment
Commonly used in humid or corrosive environments, such as deck fixings and pipe flanges, due to its corrosion resistance.

Comparison with Other Nuts
Compared to hexagonal nuts, Square nuts are easier to insert to prevent rotation, but require more installation space; hexagonal nuts have greater torsion resistance.
Compared to flange nuts, Square nuts do not have anti-slip washers and require additional spring washers or rubber washers to prevent loosening.

Selection Recommendations:
For humid environments: 316 stainless steel is preferred. For high-load scenarios: Use reinforced bolts or thickened square nuts.
For pre-embedded installation: Ensure the nut size matches the slotted hole to prevent loosening.
