The left-hand thread hex nut, also known as a reverse thread nut, is similar to a regular hex nut in shape and function, but with different threads designed to rotate in the opposite direction.
Category
Hex Nut

Send Inquiry
Description
Technical Parameters



China Nut Manufacturer – Custom Left-Handed Hex Nuts

Left-Hand-Thread Hex Nut 4

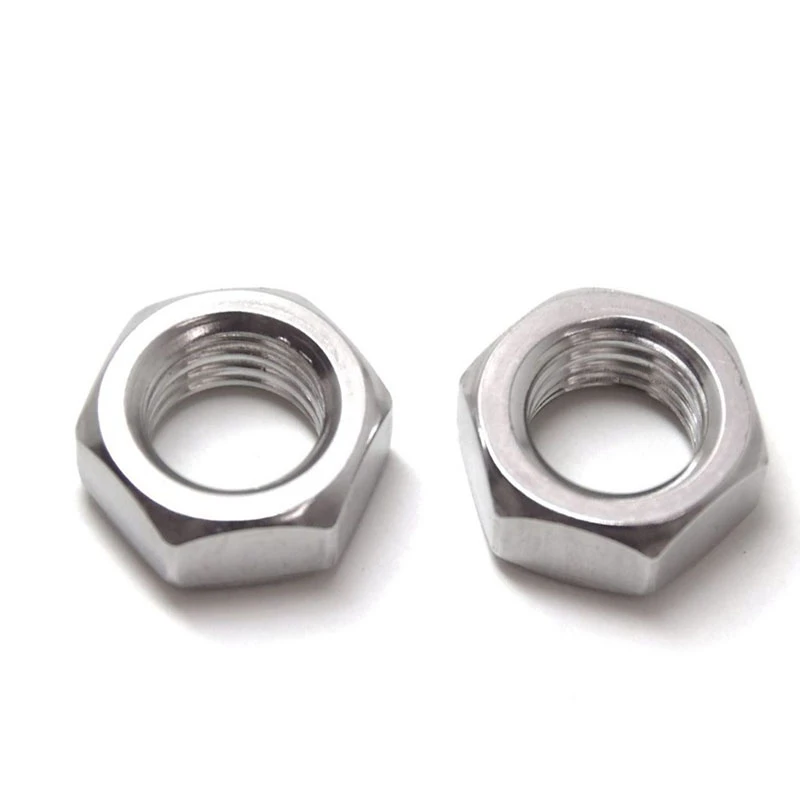

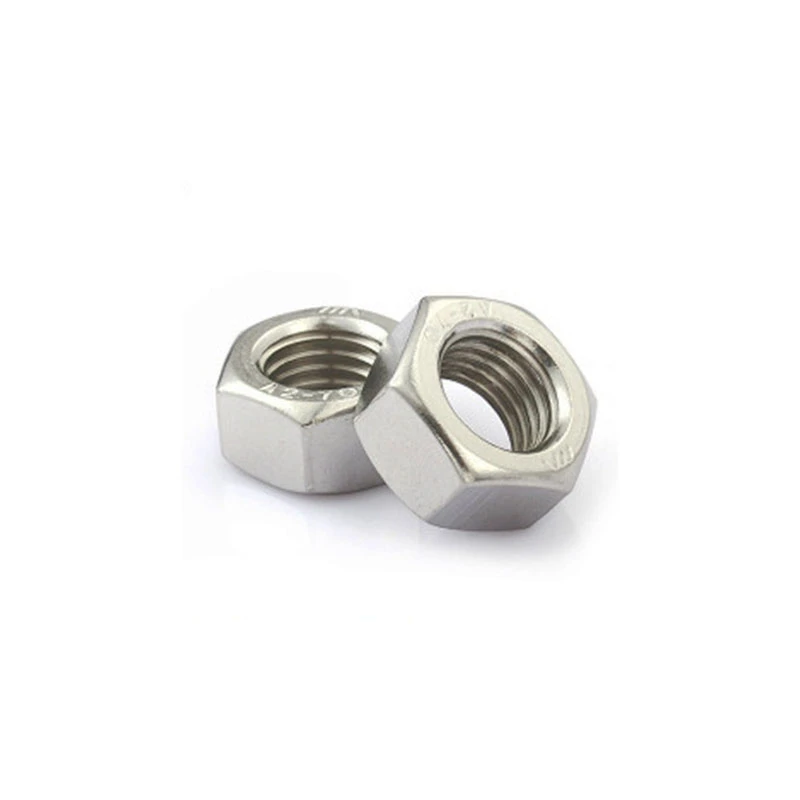

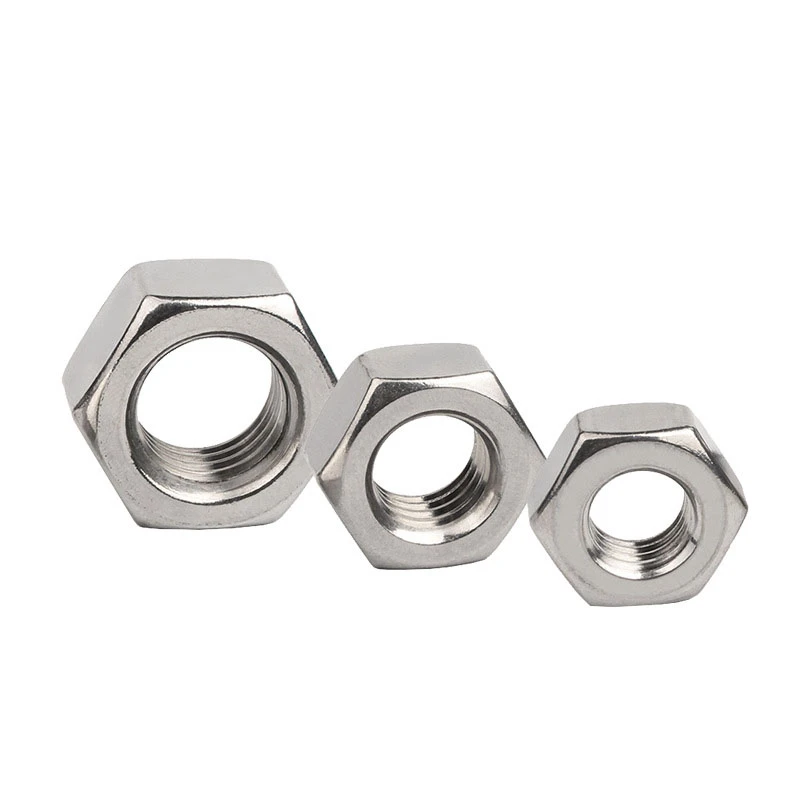

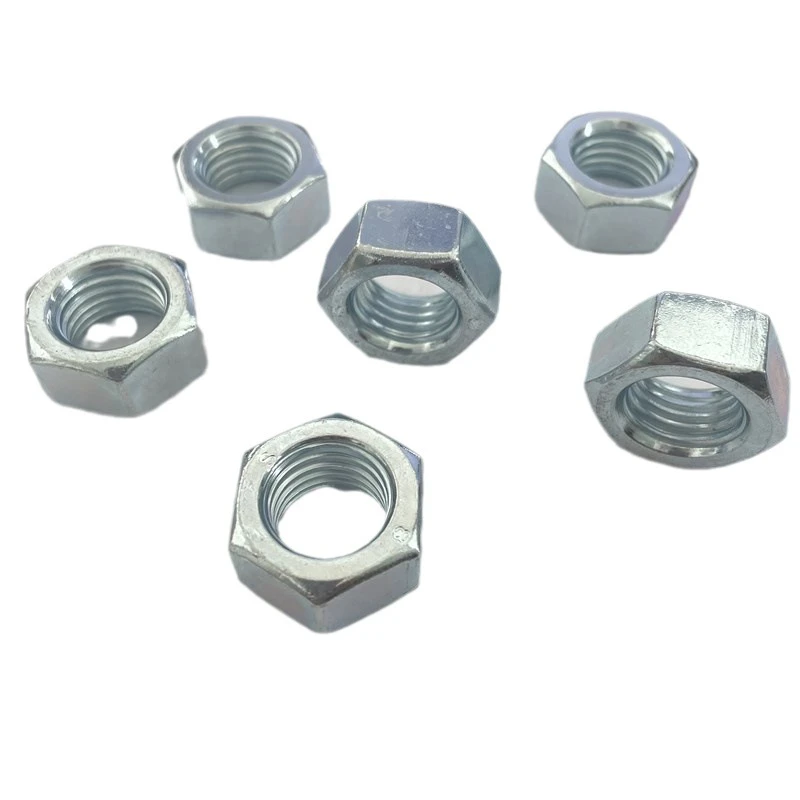

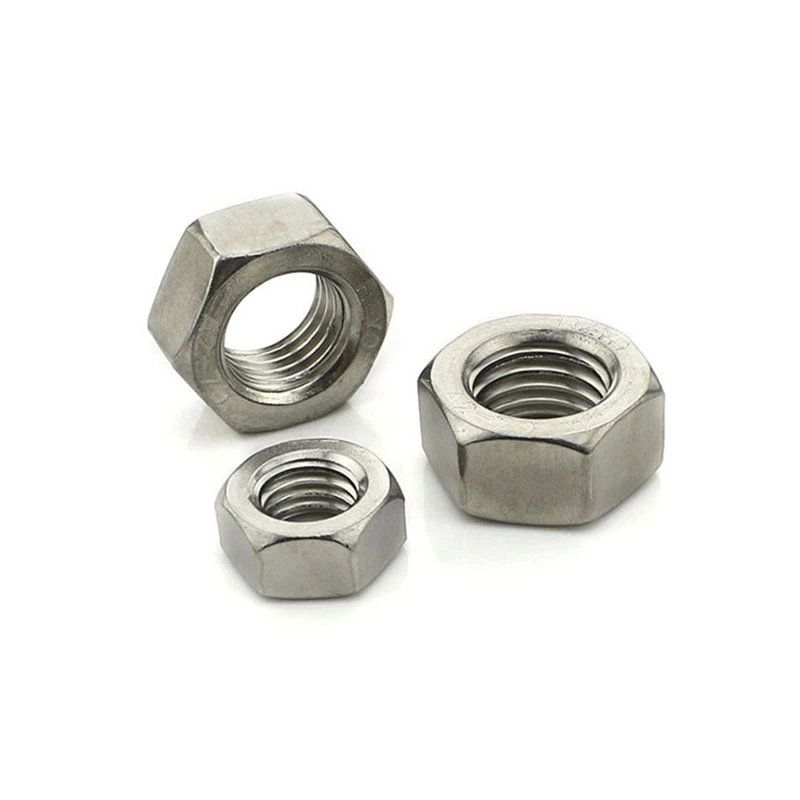

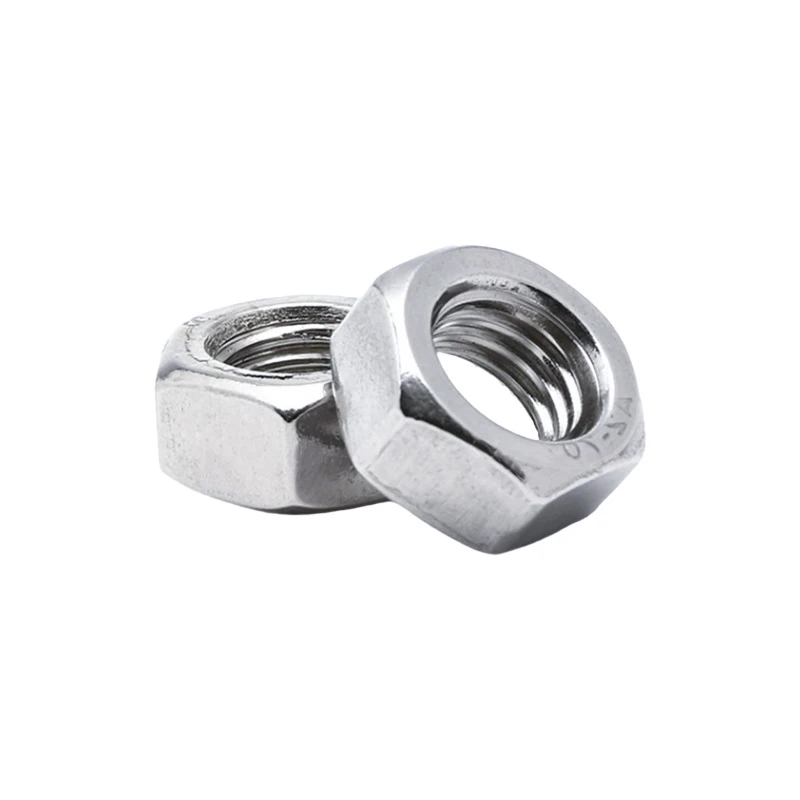

Left-handed hex nuts, also known as reverse-threaded hex nuts or LH hex nuts, are designed for fastening applications where the thread direction is opposite to that of standard hex nuts. They have the same hexagonal shape as conventional hex nuts, but their internal threads are designed to tighten when turned counterclockwise. These nuts are used with matching left-handed bolts, screws, studs, or threaded rods.



ZeYao Hardware offers industrial fasteners for standard and custom applications. For OEM projects requiring left-handed hex nuts, the purchaser should confirm the thread diameter, pitch, thread direction, material, strength requirements, surface finish, and applicable size standards before ordering.

Specification



Left-Hand-Thread Hex Nut 1

d

p

m

s

max

min

max

min

M4

0.7

3.2

3.7

7

6.78

M5

0.8

4

3.7

8

7.78

M6

1

5

4.7

10

9.78

M8

1/1.25

6.5

6.14

13

12.73

M10

1/1.25/1.5

8

7.64

17

16.73

M12

1.25/1.5/1.75

10

9.64

19

18.67

M14

1.5/2

11

10.3

22

21.67

M16

1.5/2

13

12.3

24

23.67

M18

1.5/2/2.5

15

14.3

27

26.16

M20

1.5/2/2.5

16

14.9

30

29.16







Left-Hand-Thread Hex Nuts vs. Standard Hex Nuts



Feature

Left-Hand-Thread Hex Nut

Standard Hex Nut

Thread direction

Left-hand

Right-hand

Tightening direction

Counterclockwise

Clockwise

Compatible fastener

Matching left-hand thread

Matching right-hand thread

Typical purpose

Assemblies designed for left-hand threads

General fastening applications

External shape

Usually six-sided

Usually six-sided

Selection priority

Thread direction, size, pitch, material, and grade

Size, pitch, material, and grade





Production Process





1Raw Material
Raw Material
2 Cold Forging
Cold Forging
3 Threading
Threading
4 Auto Lathe
Auto Lathe
5 Auto Lathe
Auto Lathe
6Table Lathe
Table Lathe
7CNC Lathe
CNC Lathe
8Quality Checking
Quality Checking
9 Inspection
Inspection
10 Packing
Packing



How to Choose the Right Left-Handed Hex Nut



Confirm Thread Diameter and Pitch

Determine the nominal thread size and pitch of the bolt, stud, or threaded shank. Metric and imperial threads use different marking systems, so a complete specification should be provided.



Specify Left-Handed Thread

Indicate "LH" or "Left-Handed Thread" in the purchasing instructions, drawings, and order documents.



Select Appropriate Material and Strength

Carbon steel and alloy steel may be suitable for applications requiring specific strength grades, while stainless steel may be the preferred choice when corrosion resistance is a primary consideration.



Select Surface Treatment

The surface treatment should be selected based on the corrosive environment, appearance, friction requirements, and compatibility with mating components.



Confirm Dimensions and Applicable Standards

Determine the required nut style, dimensions across flats, height, thread tolerances, and applicable standards or drawings.



Review Operating Conditions

For rotating or vibrating equipment, provide information on the direction of rotation, expected load, vibration, operating temperature, and maintenance requirements.



modular-1
Why Choose ZeYao Hardware for Hex Nuts?

Huizhou ZeYao Hardware Products Co., Ltd. provides standard and custom fasteners for industrial and OEM applications. Our product range includes nuts, bolts, screws, washers, pins, rivets, and other hardware accessories. Contact ZeYao Hardware to discuss your left-hand hex nut needs and request a quote for your industrial or OEM projects.



FAQ

Q: Are left-hand hexagonal nuts the same as reverse-thread nuts?

A: Yes. "Reverse-thread nut" is a common alternative name for left-hand nuts.

Q: Can left-hand nuts be used with standard bolts?

A: No. Left-hand nuts are incompatible with standard right-hand bolts. The thread direction, diameter, pitch, and thread shape must match.

Q: In which fields are left-hand nuts typically used?

A: They are used in specific rotating machinery, shaft assemblies, hub-related designs, adjusting mechanisms, and other equipment that explicitly requires left-hand threads.

Q: Can I order custom hexagonal nuts?

A: Custom options are available based on special sizes, pitches, materials, finishes, and other requirements.

Q: How do I identify a left-hand hexagonal nut?

A: Its external hexagonal shape may be the same as a standard nut. Please check the part markings or specifications to confirm the thread direction and verify its compatibility with known matching left-hand fasteners before assembly.

Q: Can left-hand hexagonal nuts be used in marine environments?

A: Yes, provided the selected material and finish are suitable for the environment.
