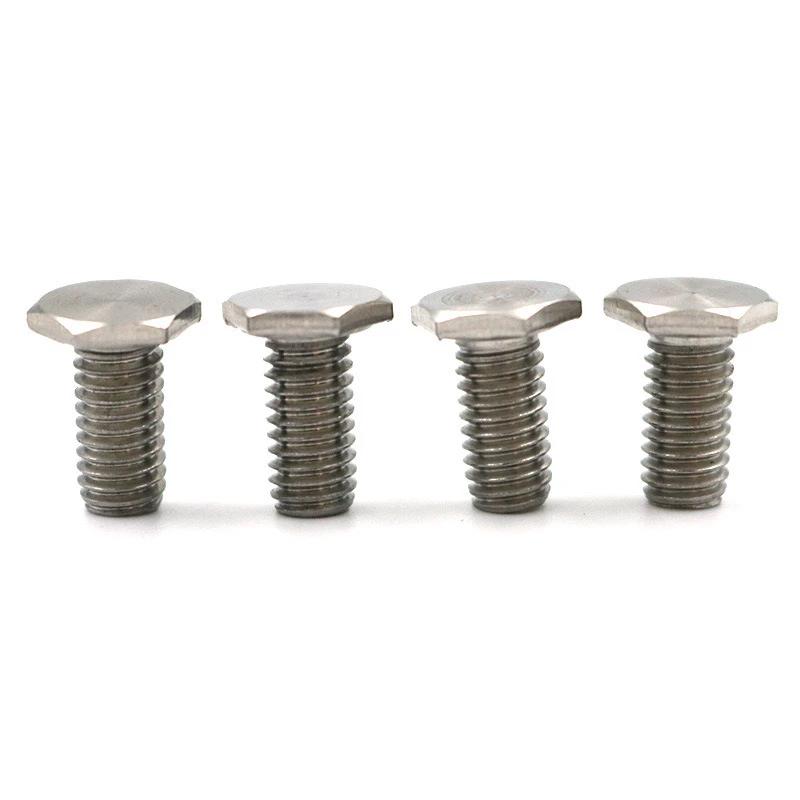

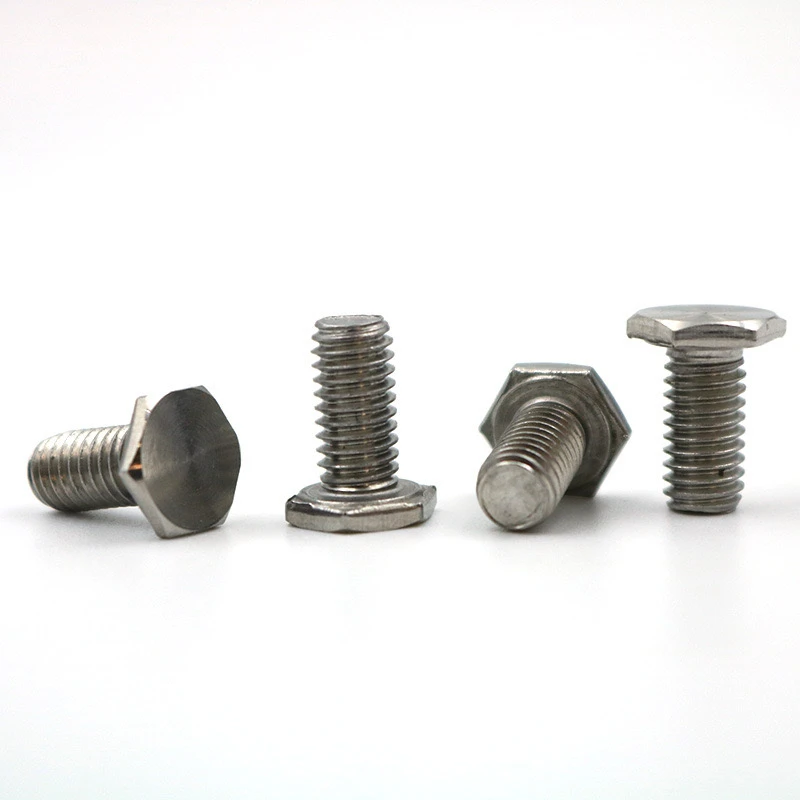

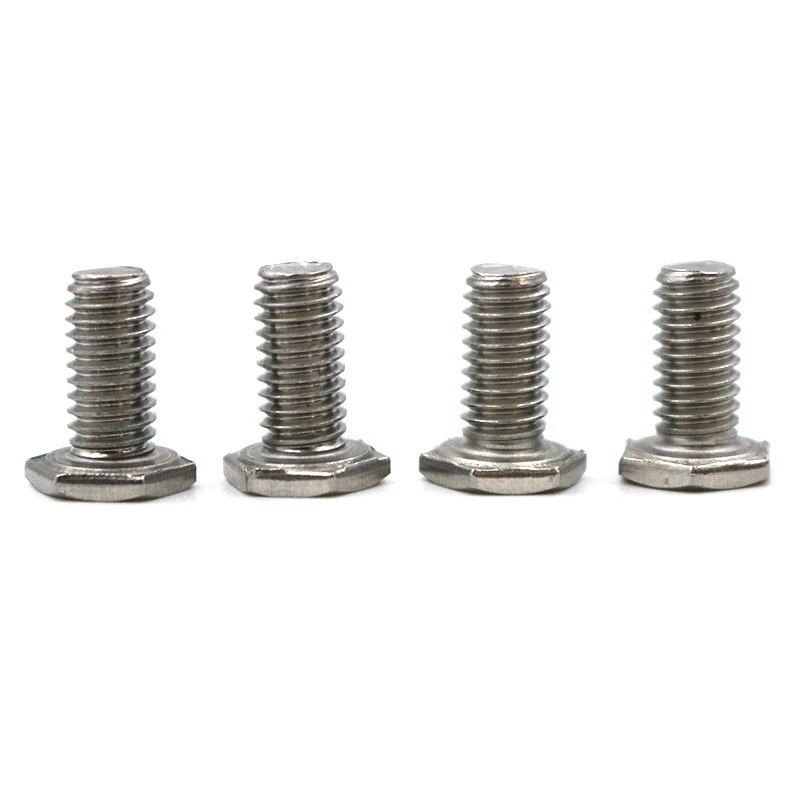

304 stainless steel external hexagon thin-head screws, also known as ultra-thin head external hexagon bolts, are high-performance fasteners designed for specialized installation requirements. The following is a detailed technical description of their customization, balancing professionalism with practicality.
I. Core Parameter Requirements
Material Standards
304 stainless steel (Grade A2). A material report is required. A carbon content of ≤0.08% is recommended to enhance intergranular corrosion resistance.
Head Design
Thickness: Ultra-thin head design, head height ≤0.3 x thread diameter.
Across-Flats: Standard GB/T6170 or customer-specified (commonly 6.4mm to 19mm).
Chamfer: A 15° to 30° lead angle is recommended for ease of assembly.
Thread Specifications: Metric coarse (M), fine (MF), or custom threads, with specified tolerances.
Thread Length: Full thread or custom.
Mechanical Properties: Tensile strength ≥ 500 MPa, hardness HV 200-250, salt spray test ≥ 96 hours required.
II. Key Customization Options
Surface Treatment
Recommended passivation (QPQ) or electrolytic polishing, roughness Ra ≤ 0.8 μm; nickel plating available upon request.
Anti-loosening Design: Optional nylon inserts, double-stack washers, or thread dispensing.
Non-Standard Improvements
Head Weight Reduction Groove: For lightweighting applications in aviation/automotive applications.
Drive Type: Hexagon socket and cross-slot combination design.
Guide Tip: Self-tapping threaded tip.
III. Quality Control Key Points
Testing Items
Dimensions: 3D measurement.
Torque Test: Destructive torque ≥ 1.5 times the standard value (e.g., M8 ≥ 25 N·m).
Metallographic Examination: Austenite content ≥ 95%.
Certification Requirements: Provide RoHS/REACH reports and ISO 9001/14001 system documentation.
IV. Packaging and Delivery
Packaging: Anti-rust oil paper + vacuum bag (100-500 pieces per package), or sub-packaging as required.
MOQ: Typically, the minimum order quantity is 5,000 pieces, with a delivery time of 15-25 days (extended for non-standard parts).
Supporting Documents: Provide material certification, heat treatment report, and full-size inspection report.
V. Recommended Applications
Applicable Applications: Precision electronics, medical equipment, and lightweight automotive components.
Alternatives: For higher strength, 316L or A4-80 grade stainless steel is recommended.
Specific parameters will need to be adjusted based on the application conditions. We recommend providing drawings or samples for design-for-manufacturing (DFM) analysis.
304 stainless steel hexagonal thin-head screws, with their unique low-profile design and material properties, address the need for high-strength fastening in space-constrained and corrosive environments. They are an ideal choice for precision engineering and harsh working conditions. When selecting a screw, consider balancing thickness, strength, and environmental compatibility.
