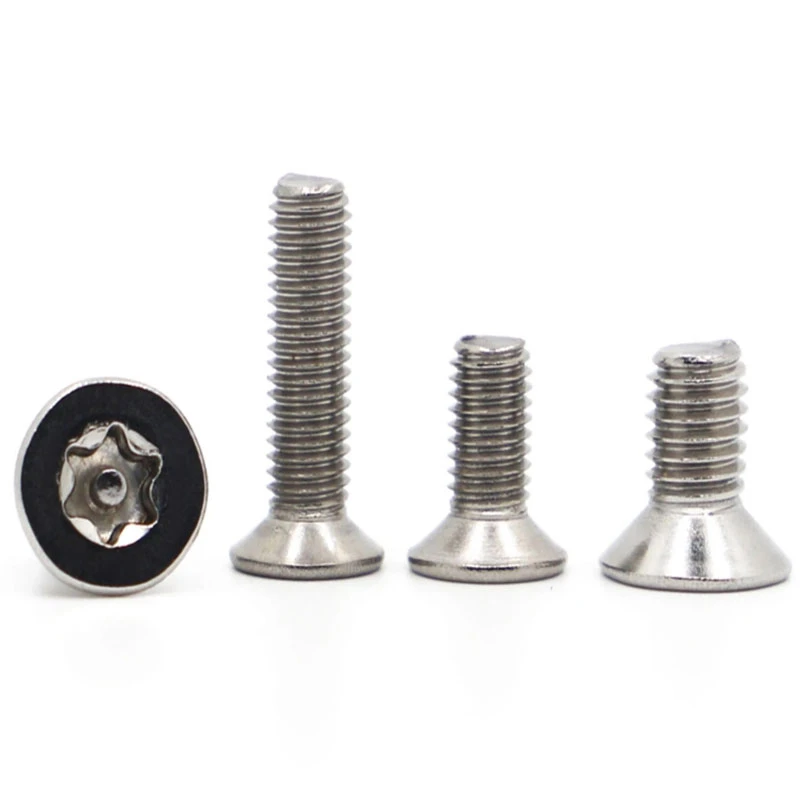

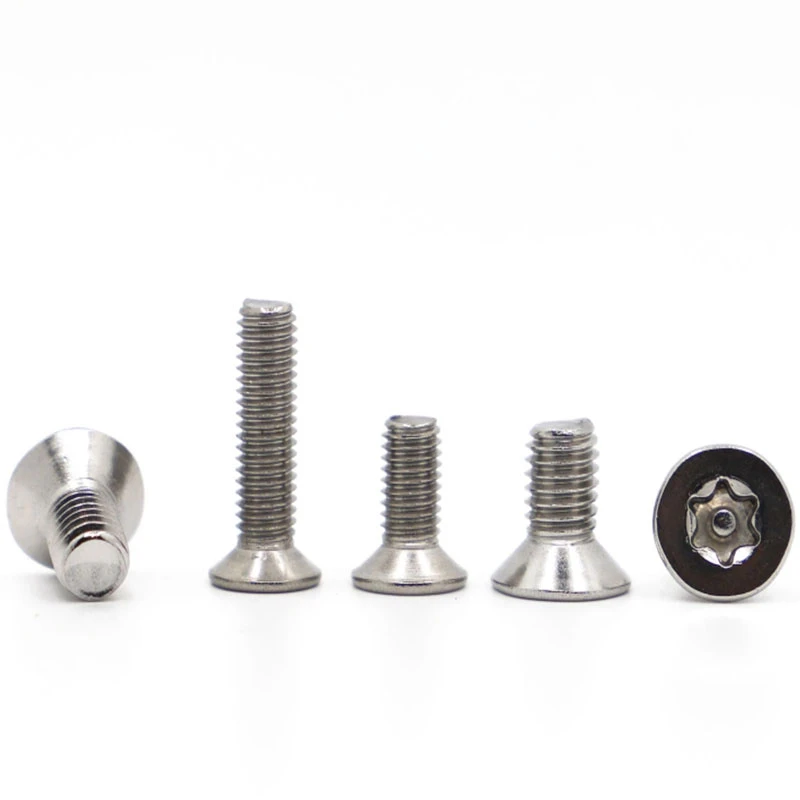

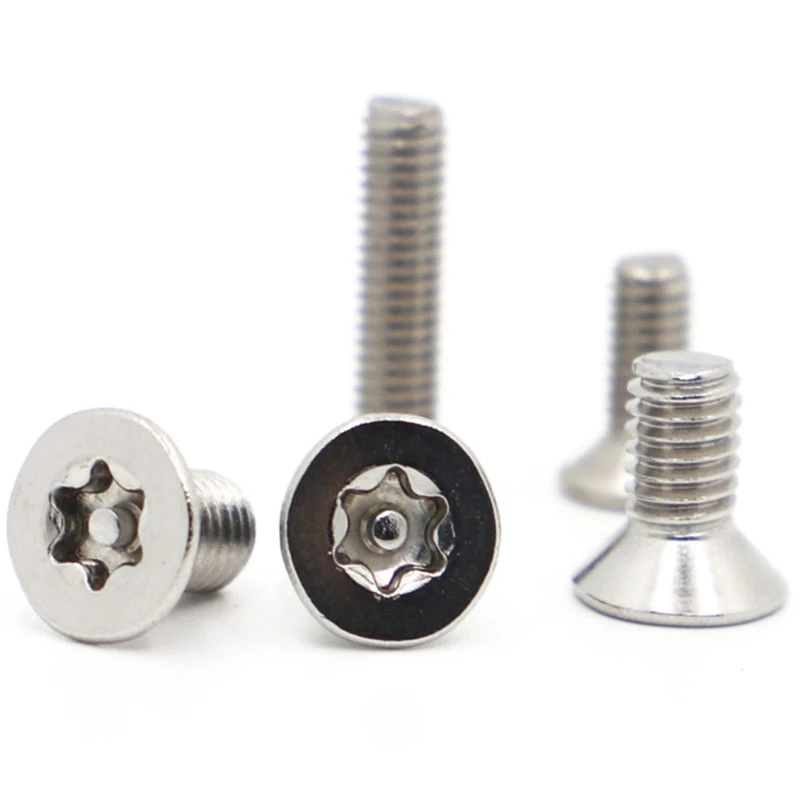

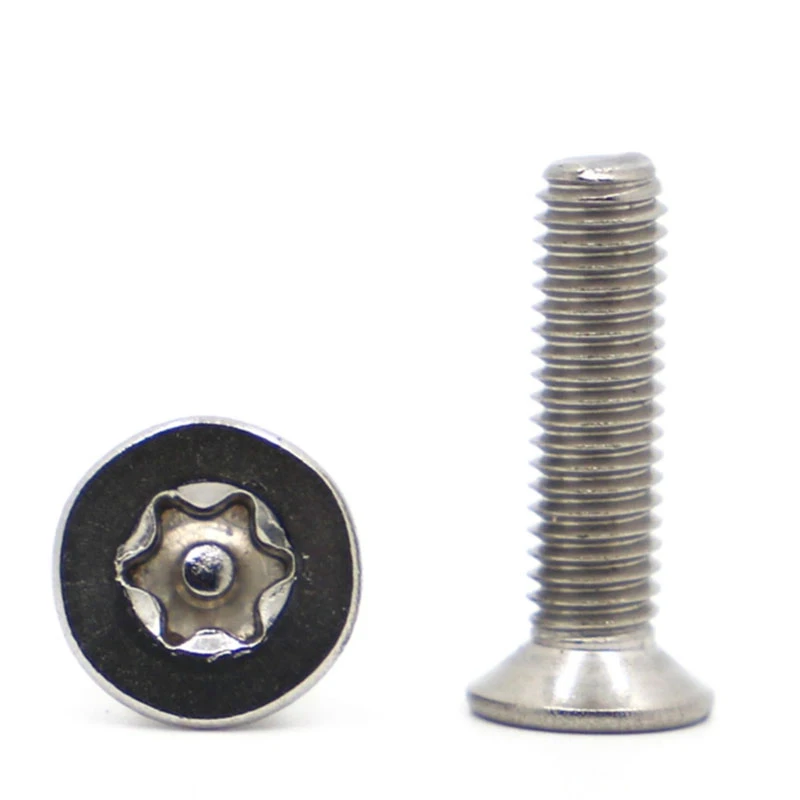

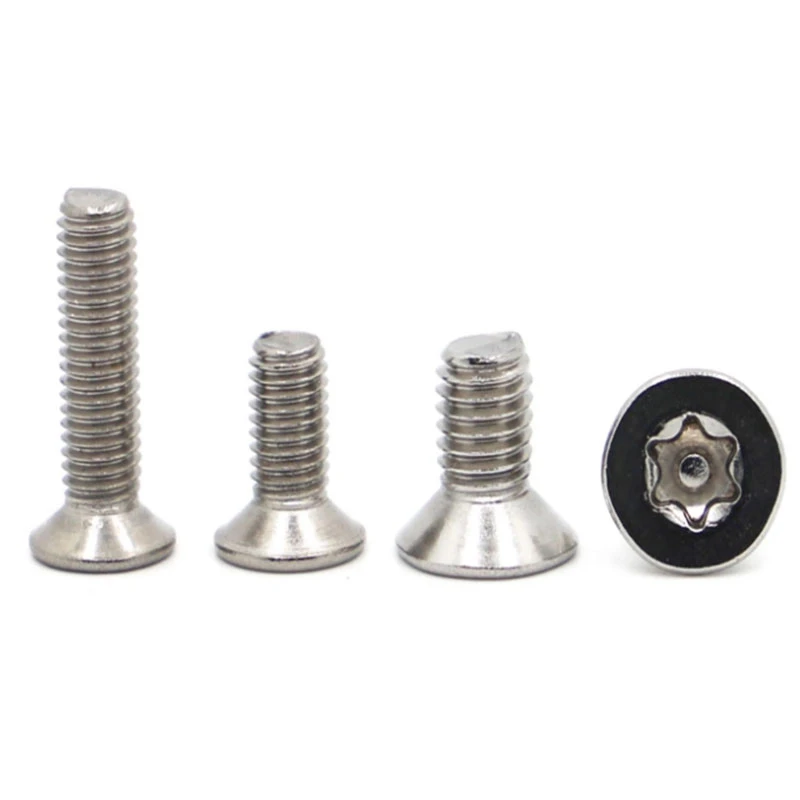

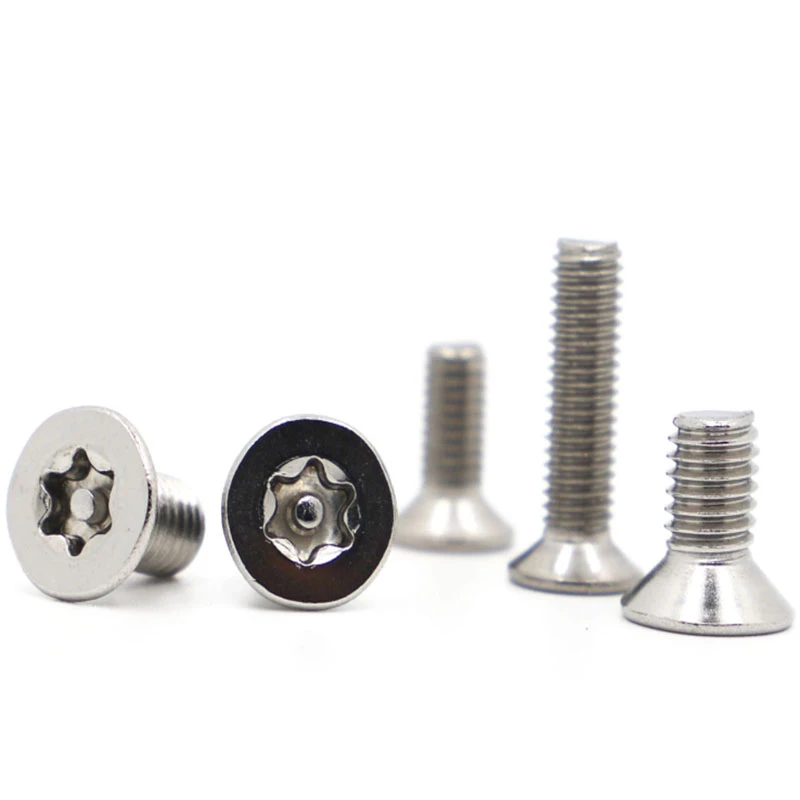

The pin in torx security screw features a unique head design with a Torx shape with a pin in the center, this makes it impossible to remove with standard tools. Only a special matching tool can fit into the pin and rotate the screw, providing a strong anti-theft feature that significantly enhances security.
These pin in torx security screws are usually made of high-strength materials such as stainless steel or alloy steel, which makes them excellent durability and resistance to damage in a variety of environments.
The screw is designed for secure installation and removal with specialized tools, it's difficult to disassemble without the proper equipment, thus increasing safety. With its strong fastening performance, anti-loosening properties, and easy installation, the pin in torx security screw is ideal for securing valuable items like electronic devices, vehicles, and other high-security applications.
Its sleek design also adds an aesthetic appeal, making it a practical and visually appealing choice for industries where security is a priority.
Specification
|
d |
pitch |
dk |
dk |
k |
t |
h |
slotted number |
|
max |
min |
||||||
|
M2 |
0.4 |
3.8 |
3.5 |
1.2 |
0.7 |
0.6 |
T6 |
|
M2.5 |
0.45 |
4.4 |
4.7 |
1.5 |
0.8 |
0.7 |
T8 |
|
M3 |
0.5 |
5.5 |
5.2 |
1.65 |
1 |
0.8 |
T10 |
|
M4 |
0.7 |
8.4 |
8.04 |
2.7 |
1.2 |
1 |
T20 |
|
M5 |
0.8 |
9.3 |
8.94 |
2.7 |
1.5 |
1.5 |
T25 |
|
M6 |
1 |
11.3 |
10.9 |
3.3 |
1.6 |
1.8 |
T30 |
|
M8 |
1.25 |
15.8 |
15.4 |
4.65 |
2.3 |
2.2 |
T40 |
|
M10 |
1.5 |
18.3 |
17.8 |
5 |
2.5 |
2.7 |
T50 |
Product Picture
Production Process
Quality Control
Surface Treatment
Offer a variety of surface treatments for our screws to meet different needs and environmental conditions. Such as zinc plating, nickel plating, hot-dip galvanizing, anodizing, zinc nickel alloy, dacromet coating, phosphating, etc.
Custom Service
With 18 years of experience in the fasteners area, Zeyao Hardware specializes in manufacturing custom fasteners, including screws, bolts, nuts, rivets, standoffs, spacers, wrenches, pins, and more. Welcome to send your inquiries to get a free quote.
