Pentagon Socket Anti-Theft Screw

Pentagon Socket Anti-Theft Screw

Details
The pentagon socket anti-theft screw has a unique five-star shape that ordinary screwdrivers can not remove, which makes it highly effective at preventing theft and tampering. Its complex design makes it difficult to unscrew, offering strong protection against unauthorized removal and damage.
Category
Security Screw
Share to
Send Inquiry
Description
Technical Parameters
some statistics about us you must know

Choose the plan that suits you best.

18

+

YEARS OF EXPERIENCE

3000㎡+

FLOOR SPACE

160

+

MACHINERY EQUIPMENT

3500

+

SATISFIED CUSTOMERS



The pentagon socket anti-theft screw has a unique five-star shape that ordinary screwdrivers can not remove, which makes it highly effective at preventing theft and tampering. Its complex design makes it difficult to unscrew, offering strong protection against unauthorized removal and damage.

Although it requires a special pentagon-shaped screwdriver with installation, the process is still simple. This screw is ideal for use in high-security situations, such as securing vehicles and heavy machinery.

They are commonly used in applications where theft or tampering concerns are needed-like on car tires or vital vehicle parts-the pentagon socket anti-theft screw adds an extra layer of security by making it much harder for thieves to steal or damage. It's a reliable choice for protecting valuable assets from unwanted interference.



Specification

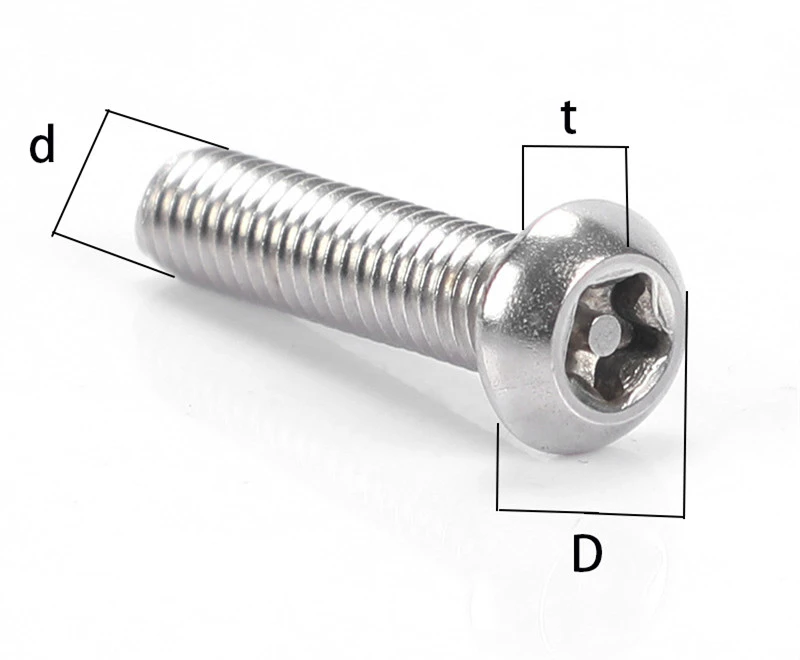

pentagon socket anti-theft screw 1

Specification

Pitch

Head Diameter

Head Thickness

M3

0.5

5.4 - 5.7

1.65

M4

0.7

7.3 - 7.6

2.2

M5

0.8

9.2 - 9.5

2.75

M6

1

10.1 - 10.5

3.3

M8

1.25

13.6 - 14

4.4

M10

1.5

10.0 - 17.5

5.5

M12

1.75

20.5 - 21

6.6



Product Picture

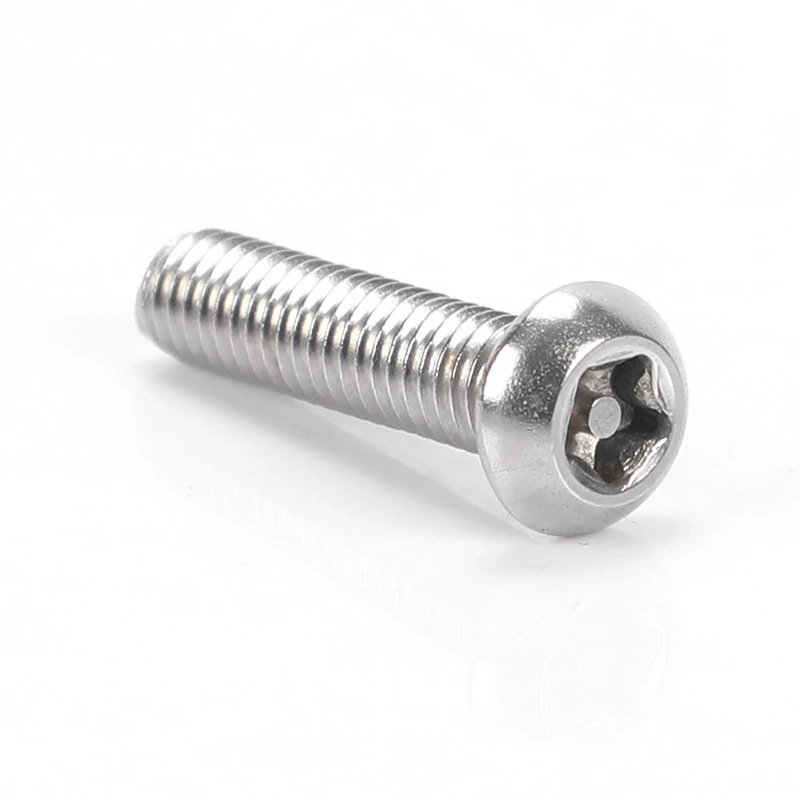

pentagon socket anti-theft screw 2

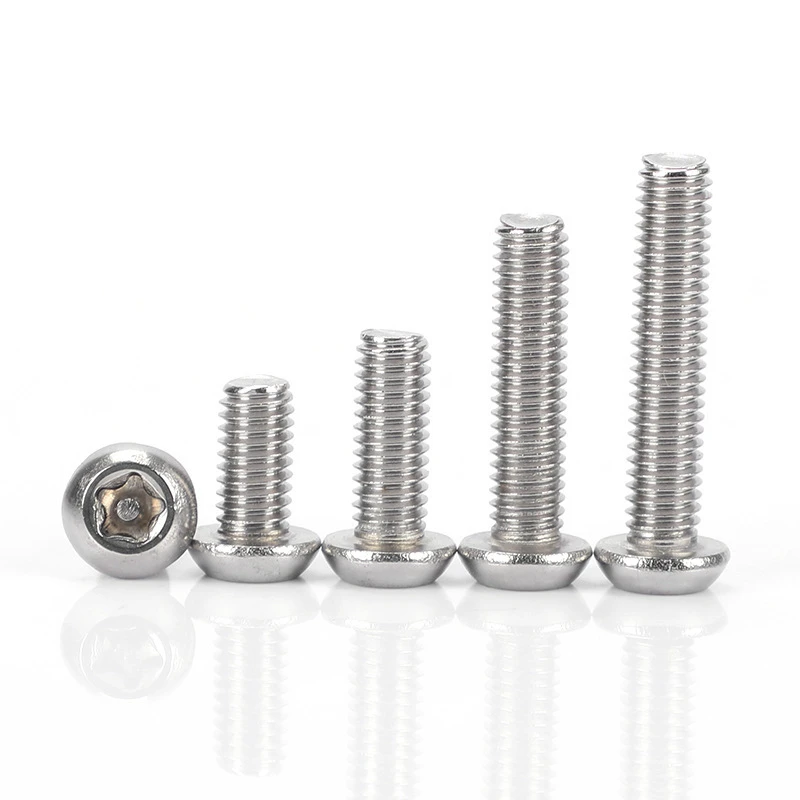

pentagon socket anti-theft screw 3

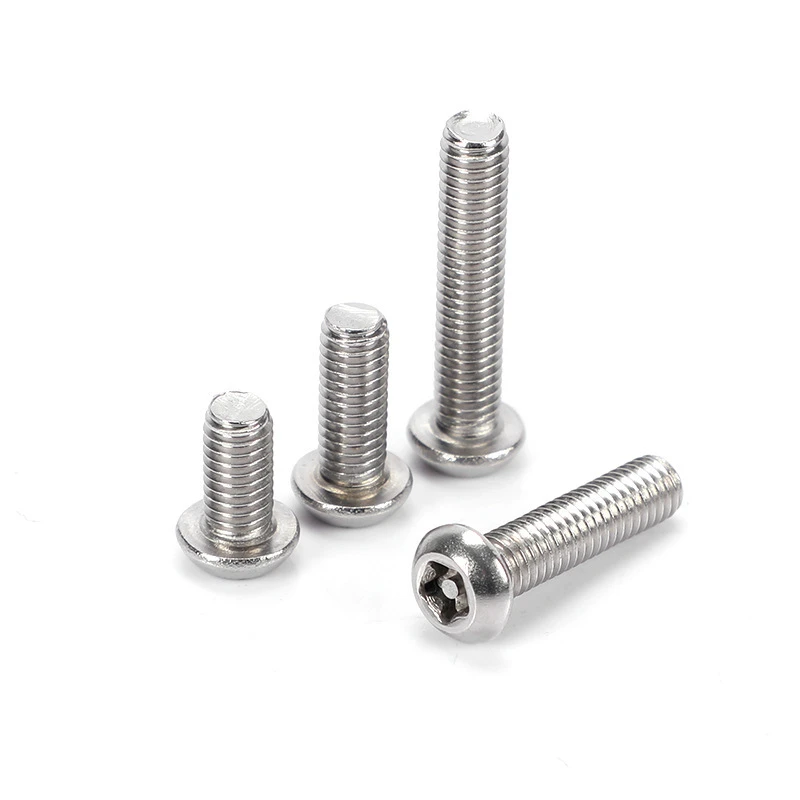

pentagon socket anti-theft screw 4

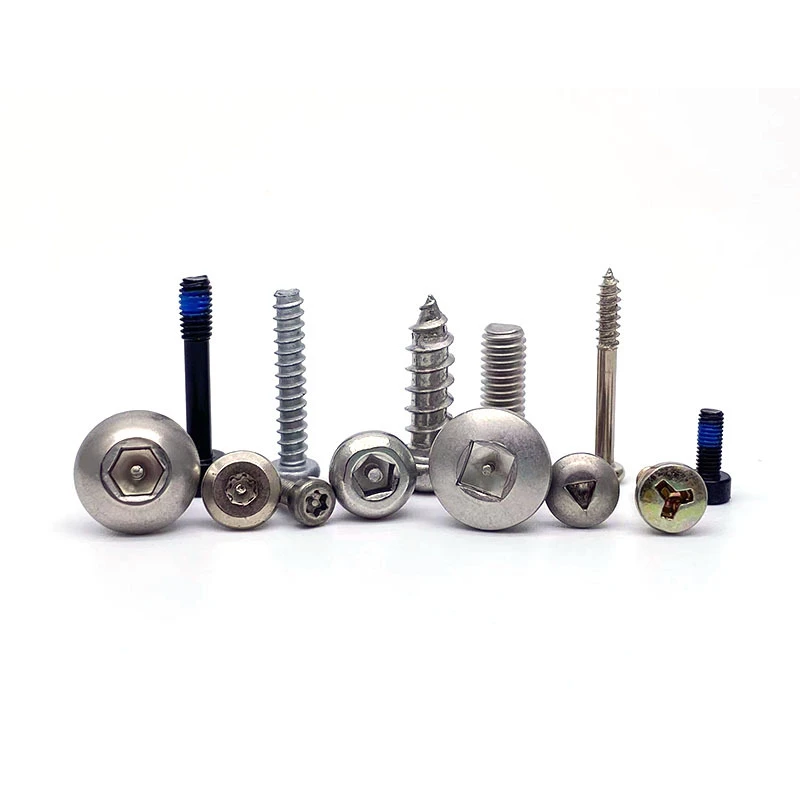

pentagon socket anti-theft screw 5



Production Process





1Raw Material
Raw Material
2 Cold Forging
Cold Forging
3 Threading
Threading
4 Auto Lathe
Auto Lathe
5 Auto Lathe
Auto Lathe
6Table Lathe
Table Lathe
7CNC Lathe
CNC Lathe
8Quality Checking
Quality Checking
9 Inspection
Inspection
10 Packing
Packing



Quality Control





1 Clipers Micrometer
Clipers Micrometer
2 Torque
Torque
3 Depth Micrometer
Depth Micrometer
4 Plug
Plug
5 Thread Guage
Thread Guage
6 Ring Guage
Ring Guage
7 Hardness Tester
Hardness Tester
8Projector
Projector
9 Salt Spray Testing
Salt Spray Testing



Surface Treatment





Offer a variety of surface treatments for our screws to meet different needs and environmental conditions. Such as zinc plating, nickel plating, hot-dip galvanizing, anodizing, zinc nickel alloy, dacromet coating, phosphating, etc.



product-549-536



Custom Service





With 18 years of experience in the fasteners area, Zeyao Hardware specializes in manufacturing custom fasteners, including screws, bolts, nuts, rivets, standoffs, spacers, wrenches, pins, and more. Welcome to send your inquiries to get a free quote.



product-862-441



FAQ





Q1: What types of customized parts do you provide?

A1: It can be made according to the drawings and specifications provided by customers.

Q2: What is your MOQ? Can it be less?

A2: Yes, we can accept small MOQ. But the lowest MOQ's quantity depends on the product.

Q3: How do you guarantee quality?

A3: On the one hand, our company has a strong team and high-precision machines to guarantee quality; on the other hand, We have a strict production process from production to delivery.
