The Phillips pan head captive screws are designed with clever locking that prevents the screw from falling out after installation. A small-diameter shaft is added to it, which hooks onto the connected part, keeping the screw in place and eliminating the risk of it coming loose.
The Phillips pan head design allows for easy installation and removal with a Phillips screwdriver, making it simple to tighten or loosen the screw without the need for specialized tools. The screw is held securely in place during installation, thanks to the small-diameter shaft that prevents it from falling out, ensuring a reliable and stable connection.
The zinc-plated coating provides excellent protection against rust and corrosion, making them perfect for both indoor and outdoor applications that need long-term durability.
These Phillips pan head captive screws are commonly used in stainless steel plates, metal steel plates, and galvanized steel plates, and are perfect for use in structural installations, including metal curtain walls, light partitions, and other heavy-duty indoor and outdoor installations.
Specification
|
Diameter d |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
|
|
Pitch P |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
|
|
Thread Length b |
4 |
6 |
8 |
10 |
12 |
15 |
|
|
dk |
max |
5.6 |
8 |
9.5 |
12 |
16 |
20 |
|
min |
5.3 |
7.64 |
9.14 |
11.57 |
15.57 |
19.48 |
|
|
k |
max |
1.8 |
2.4 |
3 |
3.6 |
4.8 |
6 |
|
min |
1.6 |
2.2 |
2.8 |
3.3 |
4.5 |
5.7 |
|
|
n |
metric |
0.8 |
1.2 |
1.2 |
1.6 |
2 |
2.5 |
|
max |
1 |
1.51 |
1.51 |
1.91 |
2.31 |
2.81 |
|
|
min |
0.86 |
1.26 |
1.26 |
1.66 |
2.06 |
2.56 |
|
|
ds |
max |
2 |
2.8 |
3.5 |
4.5 |
5.5 |
7 |
|
min |
1.86 |
2.66 |
3.32 |
4.32 |
5.32 |
6.78 |
|
|
t |
min |
0.7 |
1 |
1.2 |
1.4 |
1.9 |
2.4 |

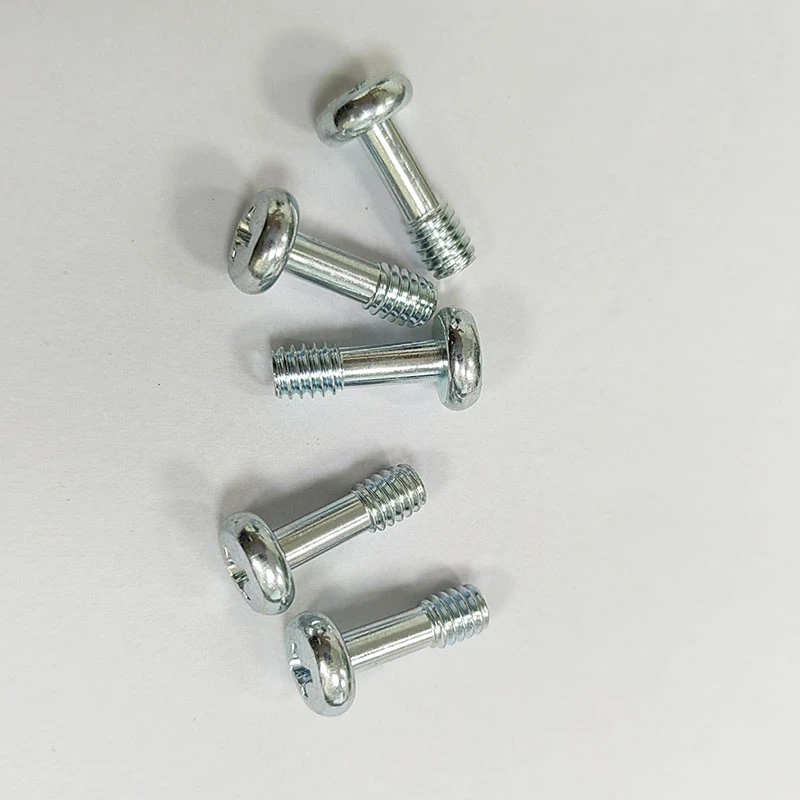

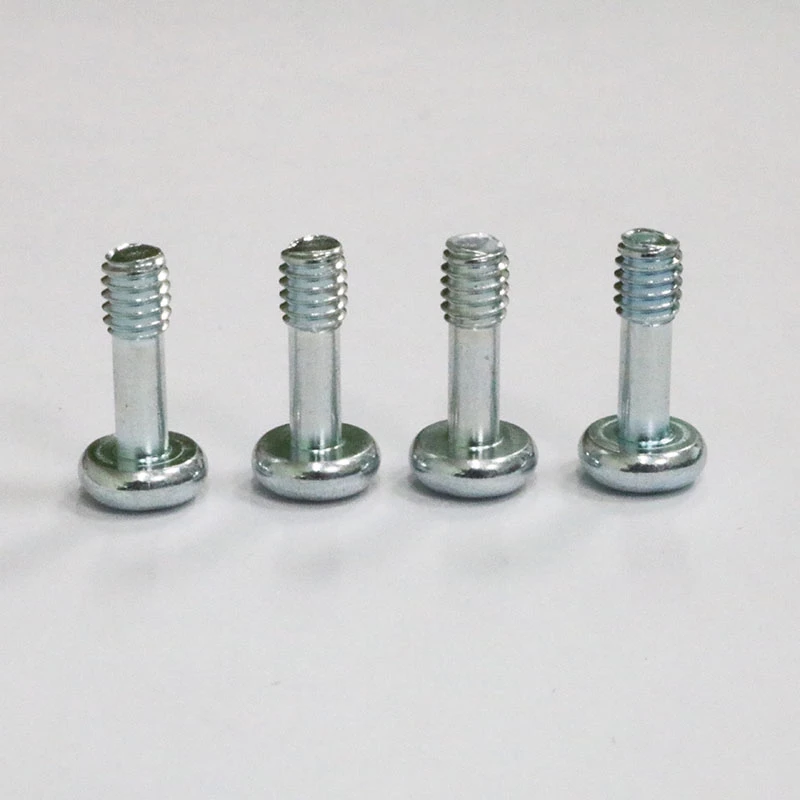

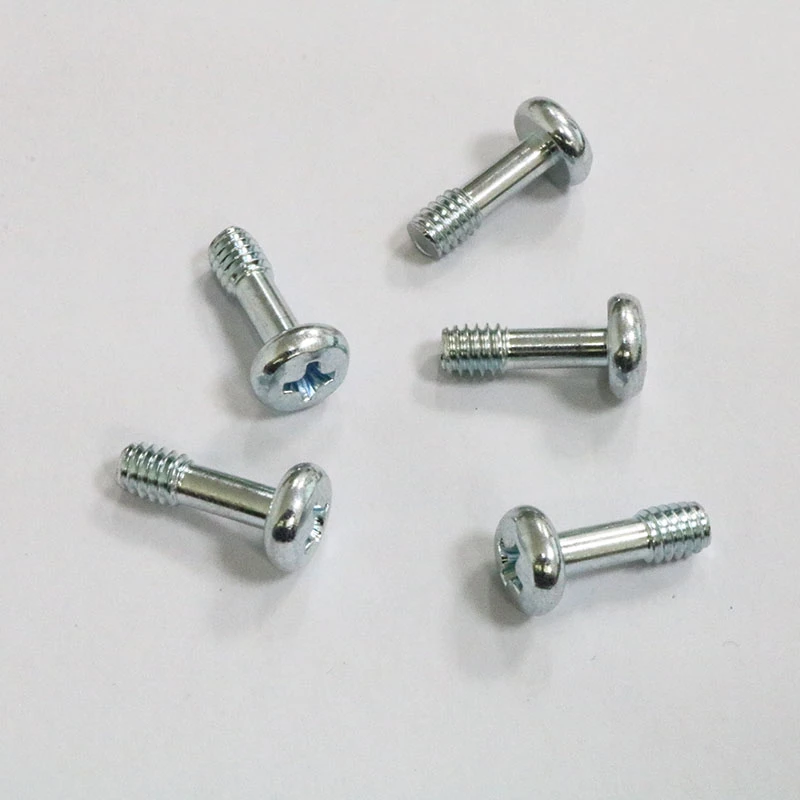

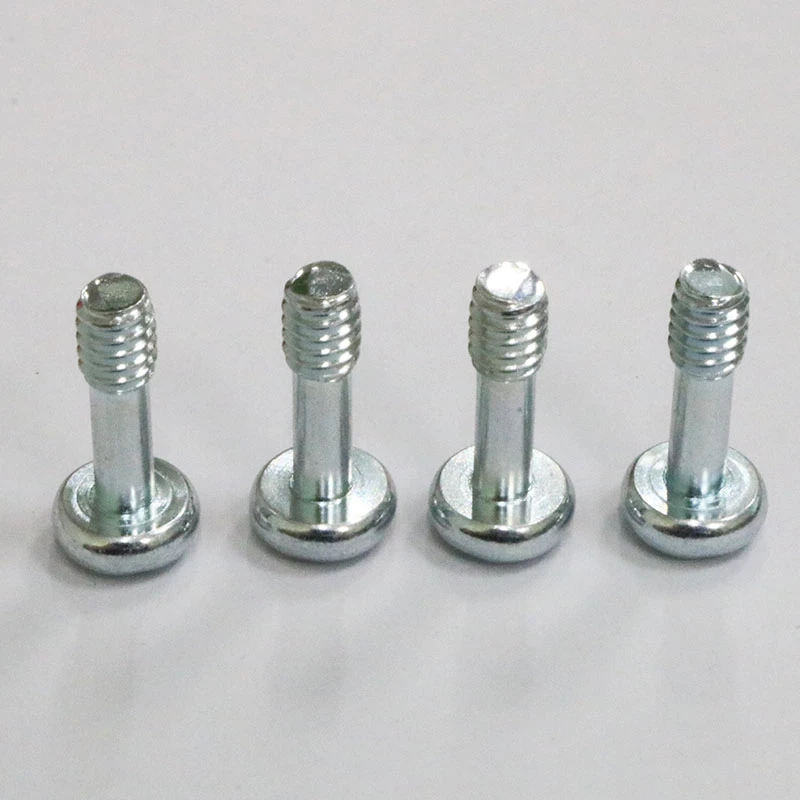

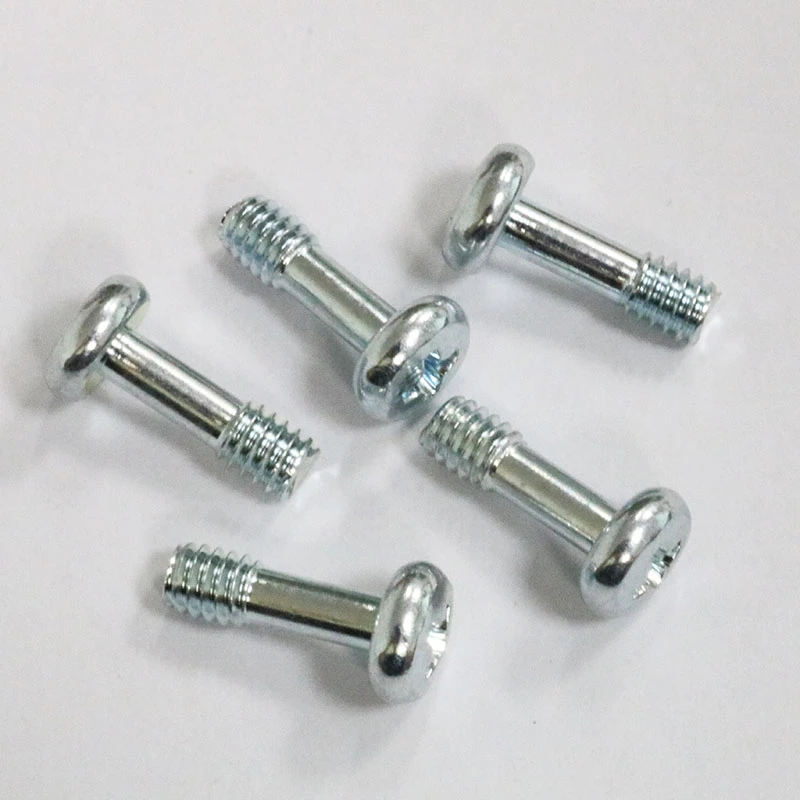

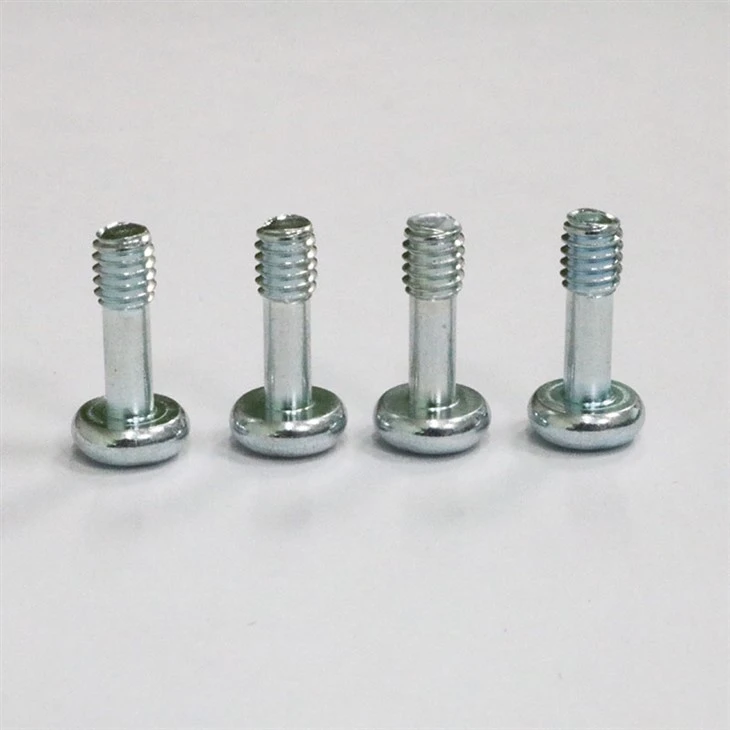

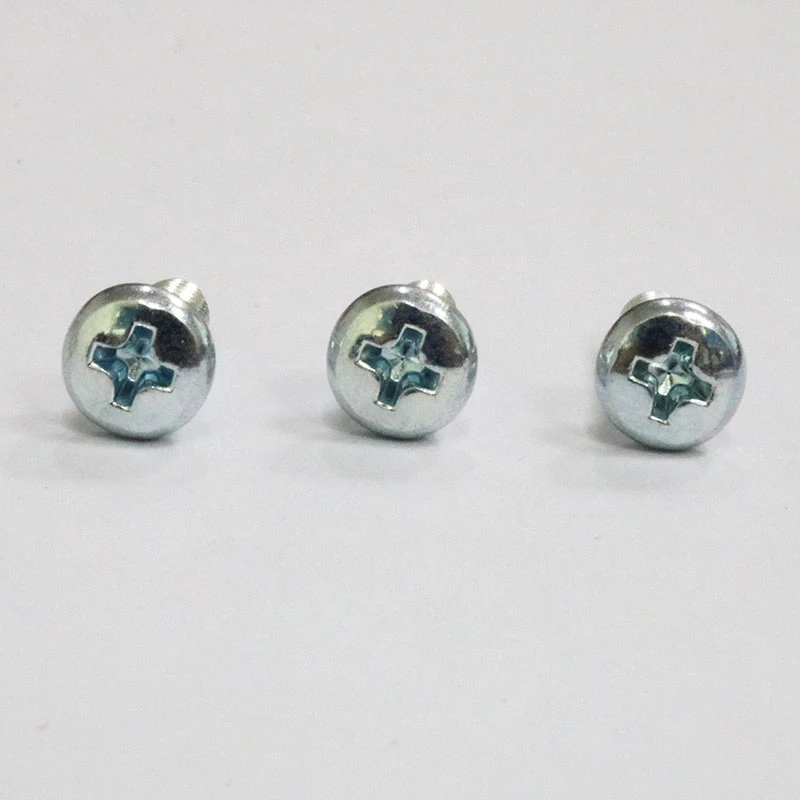

Product Picture
Production Process
Quality Control
Surface Treatment
Offer a variety of surface treatments for our screws to meet different needs and environmental conditions. Such as zinc plating, nickel plating, hot-dip galvanizing, anodizing, zinc nickel alloy, dacromet coating, phosphating, etc.
Custom Service
With 18 years of experience in the fasteners area, Zeyao Hardware specializes in manufacturing custom fasteners, including screws, bolts, nuts, rivets, standoffs, spacers, wrenches, pins, and more. Welcome to send your inquiries to get a free quote.
