Cylindrical Locating Pin

↵

Carbon steel galvanized flat head cylindrical pin with hole (cylindrical locating pin) is an industrial standard part widely used in mechanical connection and positioning scenarios. This type of product has clear characteristics in structural design, material selection, and functional positioning. As a professional hardware fastener manufacturer, we provide high-strength carbon steel galvanized flat head cylindrical pin with hole to solve the problems related to mechanical positioning, hinge connection, and heavy equipment assembly design, and meet the stringent requirements of global industrial customers for precision and reliability.

1. Product core introduction: Materials and processes

Select high-quality carbon steel through quenching and tempering heat treatment to make its hardness reach HRC 28-463, and the surface galvanizing treatment makes it have excellent rust and corrosion resistance.

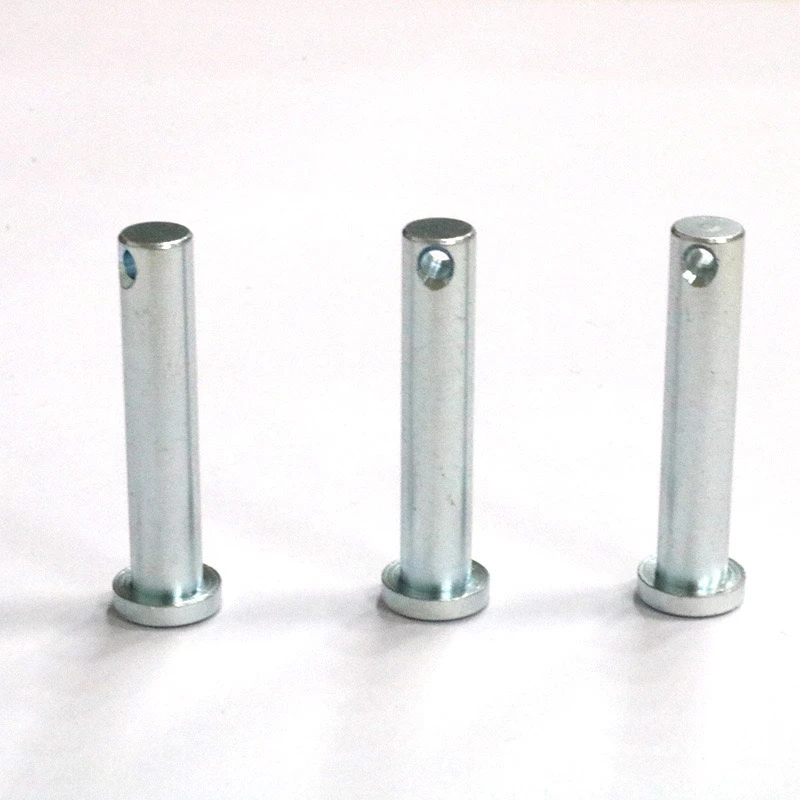

Product Picture



Specification range: diameter M3-M10, support length customization, through hole adapts to standard cotter pins.

Application scenarios: Cylindrical locating pins are widely used in aluminum formwork connections, engineering machinery articulation, automobile chassis, bridge steel structures, and other fields that require high shear and impact resistance.

2. Core advantages of the product

Excellent load-bearing performance: interference fit design, fixed in the reamed hole by slight interference, strong shear resistance when transmitting power, so as to achieve excellent variable load and impact resistance.

Raw Material

Cold Forging

Threading

Auto Lathe

Auto Lathe

Table Lathe

CNC Lathe

Quality Checking

Inspection

Packing

The 10.9 grade high-strength version can be selected with carbon steel quenched + tempered, which is suitable for dynamic load scenarios such as bridges and heavy machinery.

Accuracy and reliability: good centering, positioning accuracy of ±0.01mm, ensuring assembly consistency; flat head design prevents axial displacement, and the through hole can be inserted with a cotter pin to achieve double locking; compared with elastic cylindrical pins, it has stronger rigidity and is more suitable for high-precision positioning scenarios.

Long-term protection: The galvanized layer provides a uniform anti-corrosion barrier, resistant to salt spray for more than 500 hours, and is suitable for humid environments such as outdoor building aluminum formwork and ship equipment.

We provide standardized and customized product matrices to meet different application scenarios

Clipers Micrometer

Torque

Depth Micrometer

Plug

Thread Guage

Ring Guage

Hardness Tester

Projector

Salt Spray Testing

We provide flat head solid cylindrical pins suitable for mechanical positioning and hinge connection, as well as high-strength galvanized pins for bridge engineering and heavy equipment; in addition, there are internal threaded cylindrical pins suitable for blind hole installation scenarios. The above standard models and size ranges can be customized.

Customized service: Accurate positioning of user needs

As a source factory, we support deep customization:

Size customization: diameter and length are processed on demand, and tolerance grades can also be specified.

Material upgrade: stainless steel (A2/A4) and alloy steel or 65Mn spring steel options are available to adapt to high temperature or corrosive environments.

Why choose us?
Zeyao Hardware has been deeply involved in the fastener industry for more than 16 years and has profound experience in fastener manufacturing. Whether you need fast payment of standard parts or customization of special working conditions, we can provide technical drawing review and working condition adaptation suggestions, so that each screw becomes a reliable gene of the equipment. If you have customization or procurement needs for cylindrical locating pins, please let us know.
