IFI-115 12-Point Screw Bolt

Details

Head type: 12-point flanged head
Drive Style: External 12 point
System of Measurement: Metric or inch
Threading: fully or partially threaded
Fastener strength: Grade 10.9
Material: Steel, alloy steel
Surface: Black oxide
Specification met: IFI-115
RoHS: RoHS 3 (2015/863/EU) Compliant -

Some Statistics About Us You Must Know

Choose the plan that suits you best.

YEARS OF EXPERIENCE

3000㎡+

FLOOR SPACE

160

MACHINERY EQUIPMENT

3500

SATISFIED CUSTOMERS

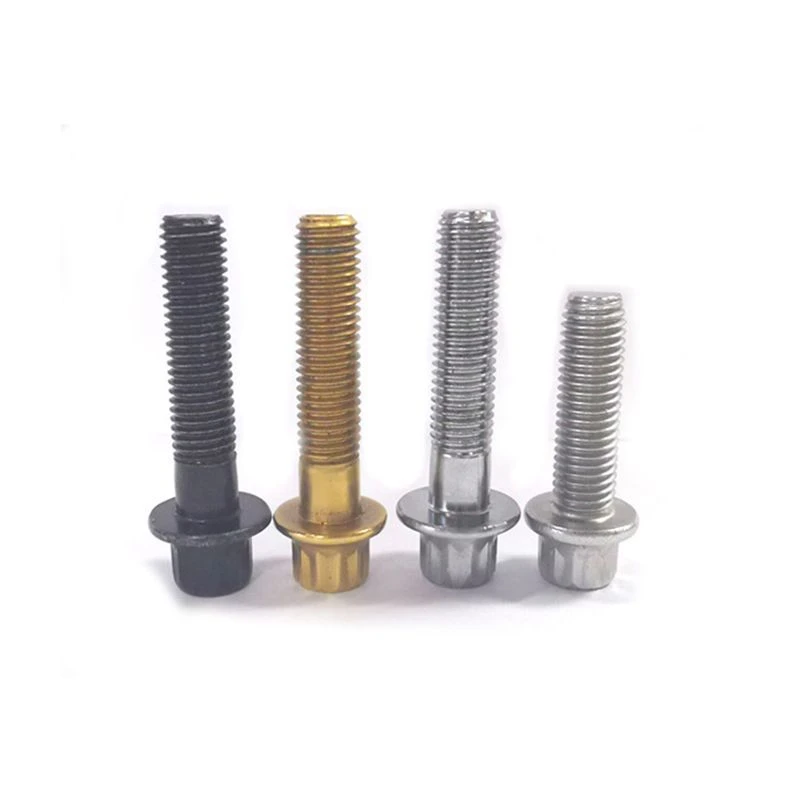

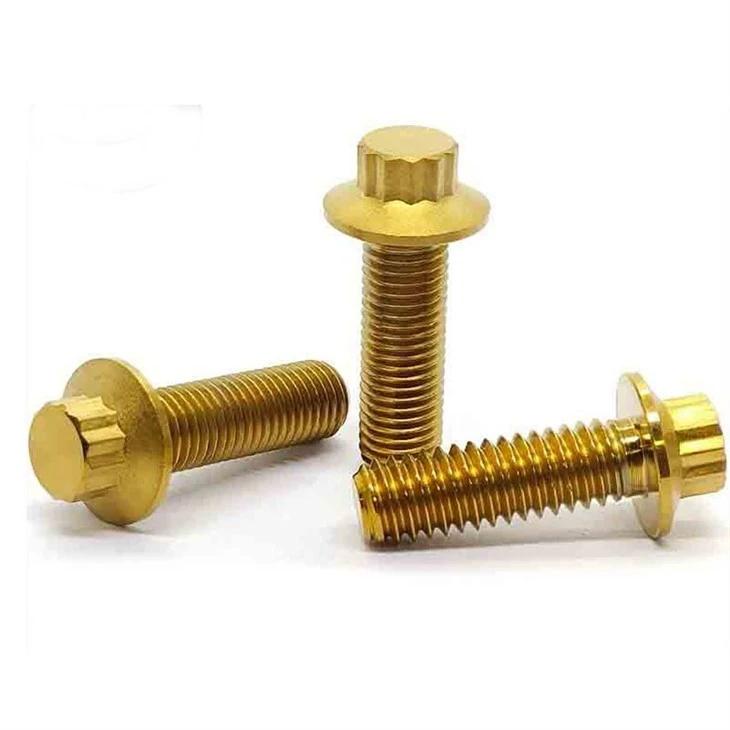

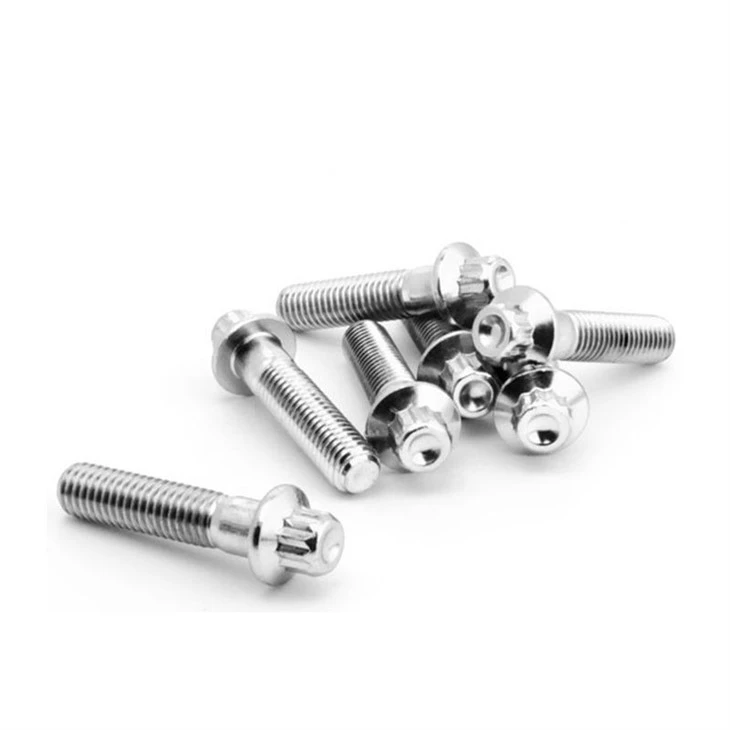

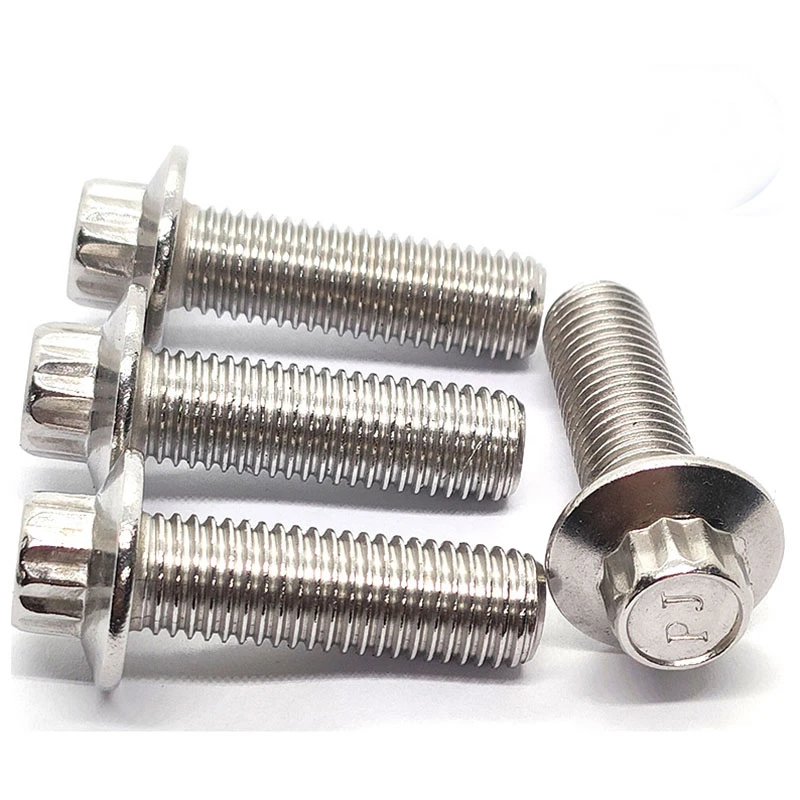

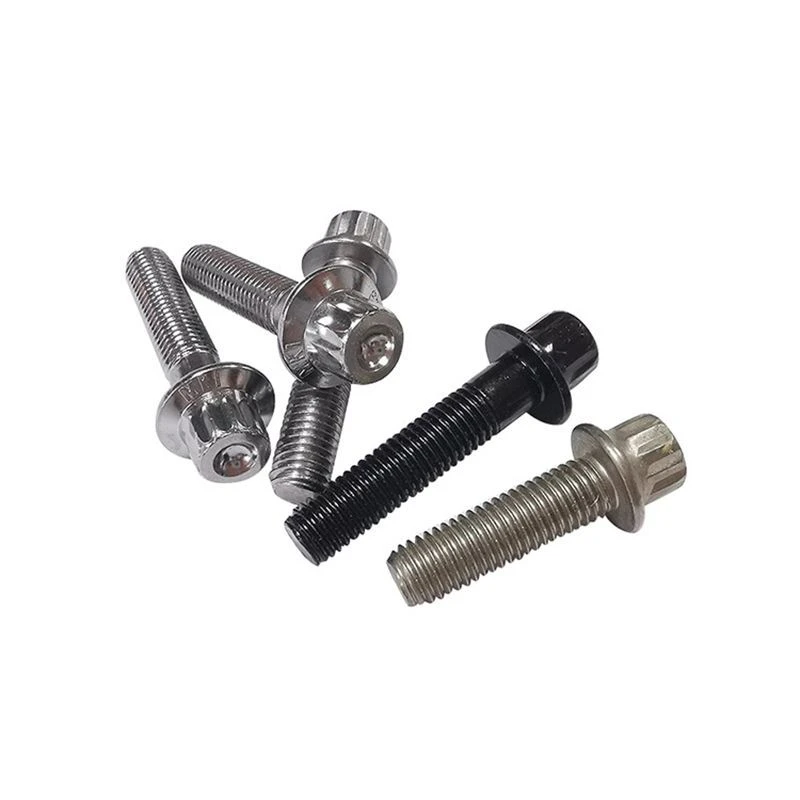

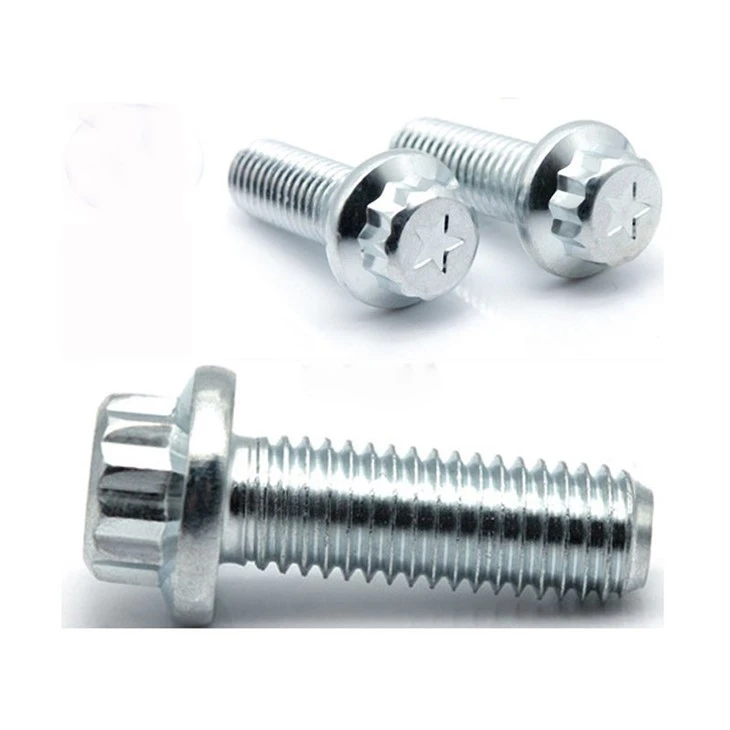

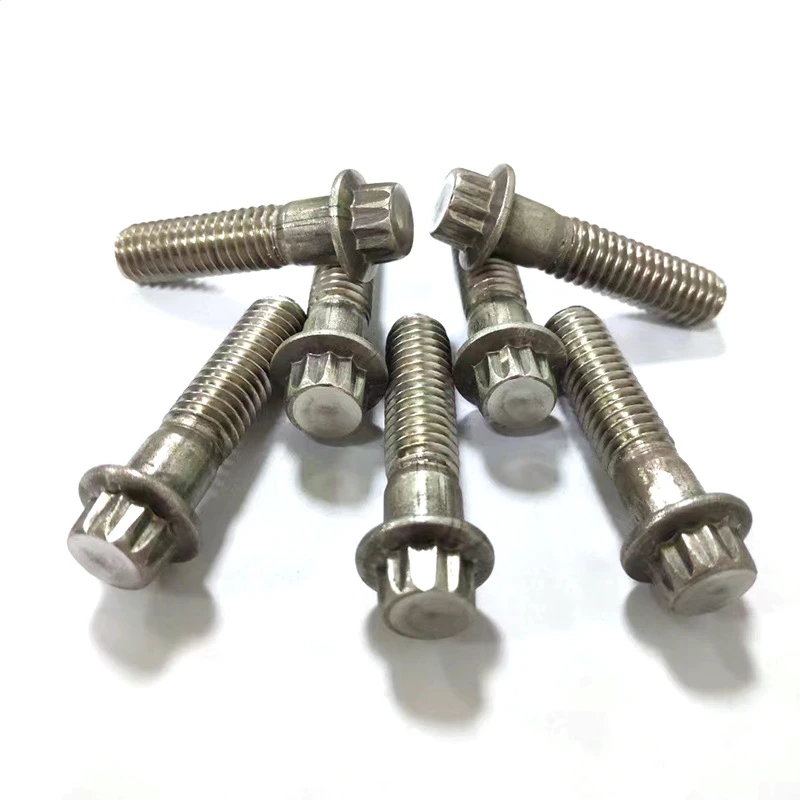

Product Picture

IFI-115 12-Point Screw Bolt

Head type: 12 point flanged head

Drive Style: External 12 point

System of Measurement: Metric or inch

Threading: fully or partially threaded

Fastener strength: Grade 10.9

Material: Steel, alloy steel

Surface: Black oxide

Specification met:IFI-115

RoHS:RoHS 3 (2015/863/EU) Compliant

How to choose the screw material to meet the strength grade you need?

Core Selection Logic

Based on screw specifications (diameter M1~M6 for small sizes, M6~M12 for medium sizes, and above M12 for large/extra-large sizes), combined with the three key factors of strength requirements, processing technology, and service environment, the following material solutions are recommended:

Material Selection Table

Size Category	Recommended Material	Strength Grade	Core Advantages	Typical Application Scenarios
Small sizes (M1–M6)	10B21	10.9/12.9 grade	High cold-heading efficiency, low cost	Electronic devices, small mechanical fasteners
Medium sizes (M6–M12)	40Cr / ML40Cr	10.9/12.9 grade	Balanced mechanical properties, mature process	Automotive parts, main connections in industrial equipment
Large/Extra-large sizes (M12+)	SCM435 (35CrMo) / SCM440 (42CrMo)	10.9/12.9 grade	Ultra-high stre
