I am zeyao. We are a factory with 19 years of experience in fastener manufacturing, equipped with 160+ production machines, and a monthly output exceeding ten million pieces.
some statistics about us you must know
Choose the plan that suits you best.
19
+
YEARS OF EXPERIENCE
3000㎡+
FLOOR SPACE
160
+
MACHINERY EQUIPMENT
3500
+
SATISFIED CUSTOMERS

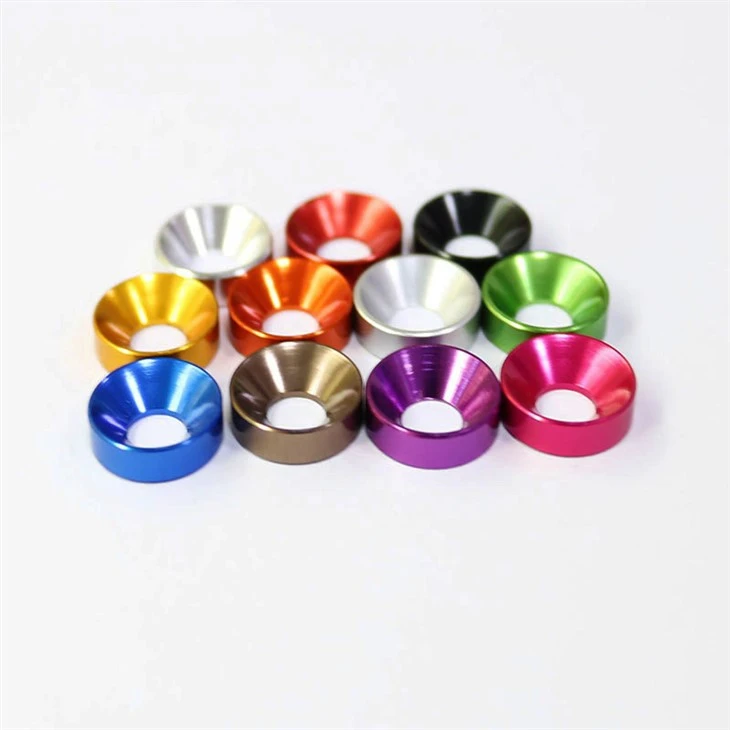

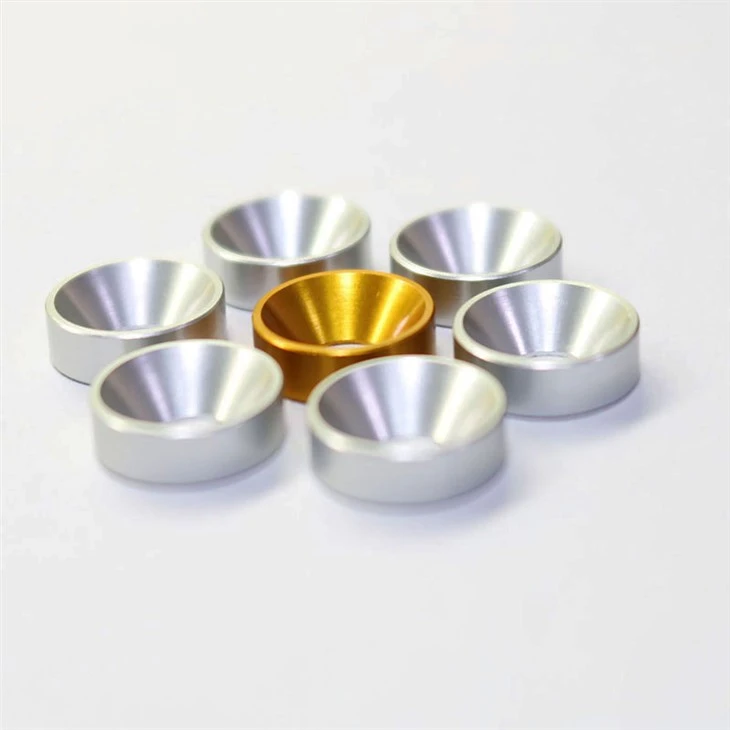

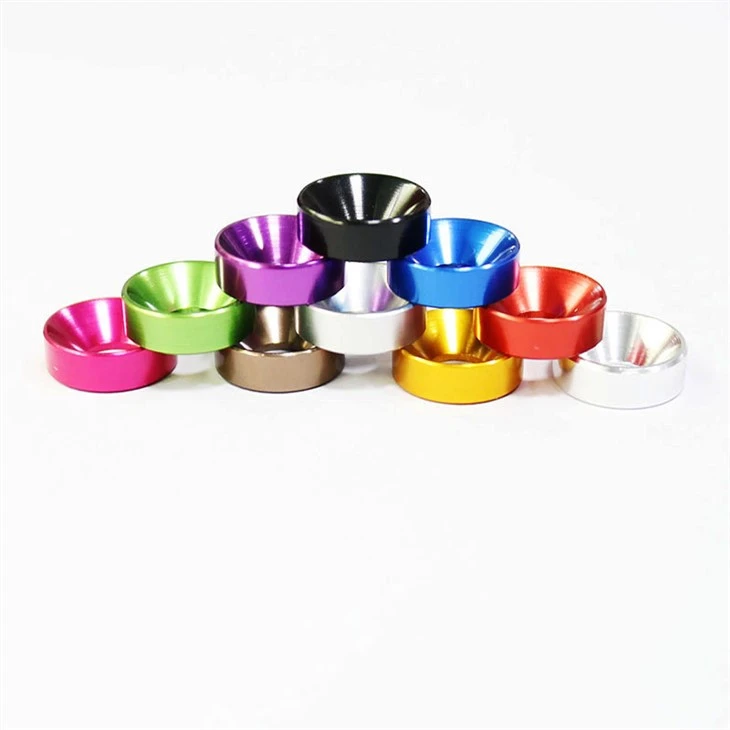

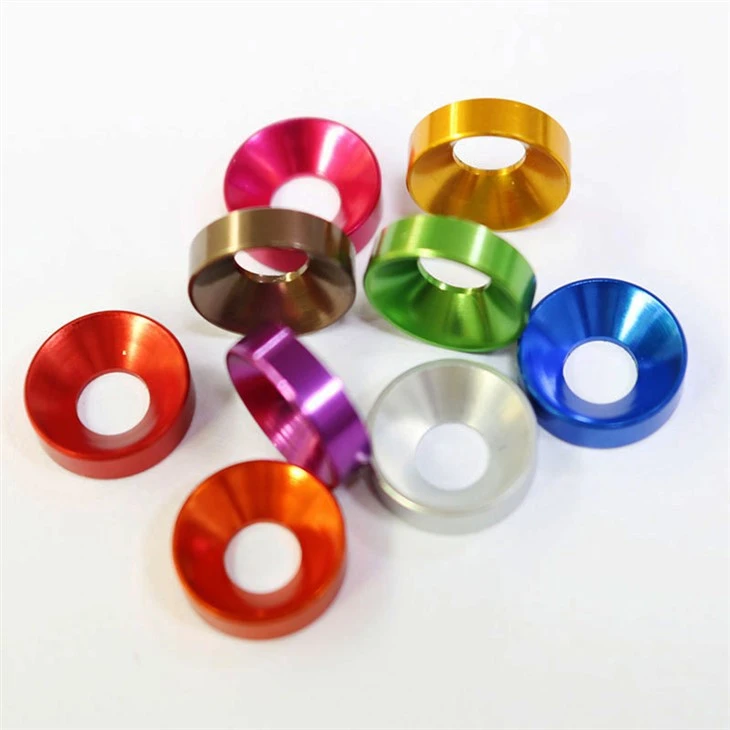

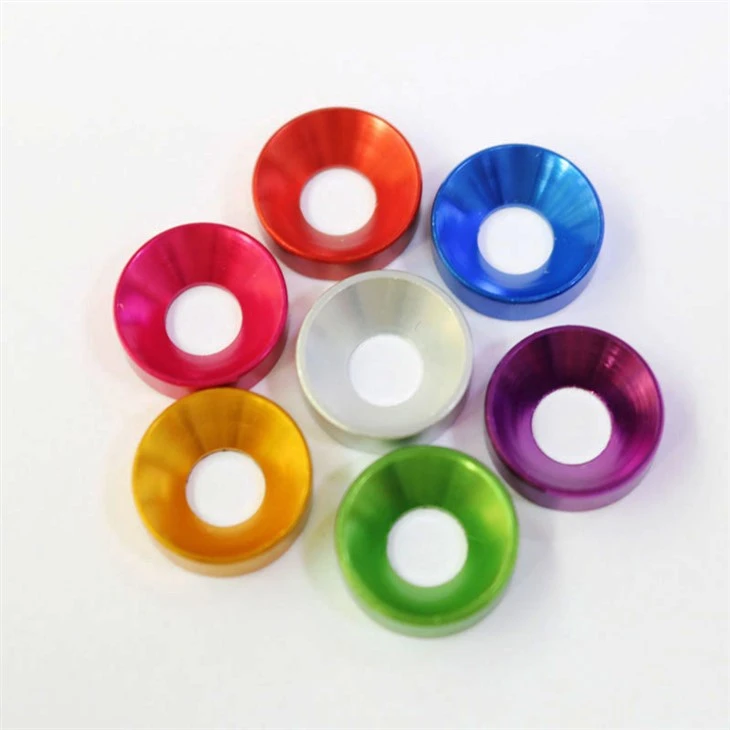

Product Name: Aluminum Countersunk Washer
Material: High-strength Aluminum Alloy 5052
Specifications: M2, M2.5, M3, M4, M5, M6, M8, M10, M12 (Metric/Imperial units supported)
Manufacturer: Zeyao
MOQ: Negotiable
Size: Customizable
Packaging: Bulk cartons, bagged repackaging, small boxes, custom-labeled packaging
Customization: OEM/ODM
The aluminum countersunk washer is a special type of washer designed to reinforce fasteners. Its main function is to increase the tensile strength of the connection and prevent damage to the threads caused by over-tightening during installation. Unlike regular washers, the design of a countersunk washer allows the screw head to sit flush with the material surface, which gives a smooth and neat appearance and also prevents interference from protruding screw heads.
Aluminum countersunk washers are treated with anodizing, a process that creates a durable, corrosion-resistant oxide film on the surface. This oxide layer protects the aluminum base from corrosion while also offering a wide range of color options, making these washers functional and decorative.
These aluminum countersunk washers are widely used in applications requiring corrosion resistance and aesthetic appeal. In the construction industry, they are commonly used for doors, windows, curtain walls, and shutters. In industrial, they can be found in fields such as printing, mining, healthcare, retail, oil and gas, and automotive industries. Their versatility and durability make them an excellent choice for various projects.

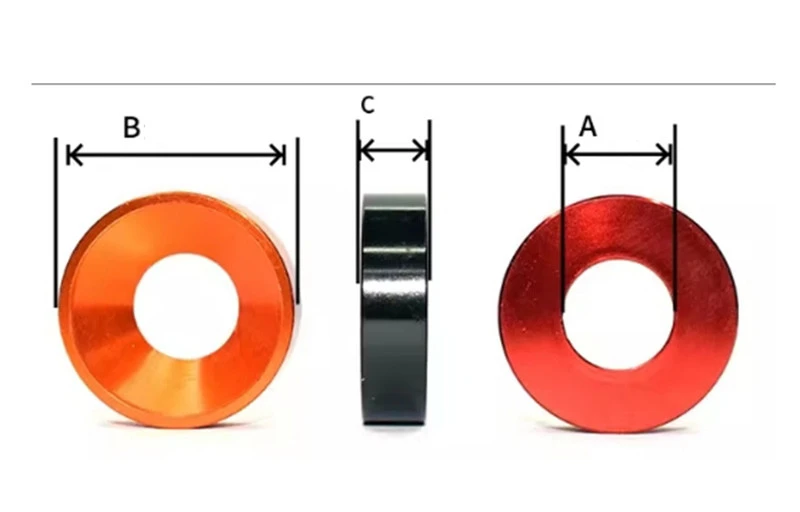

Specification
|
Size |
A |
B |
C |
|
M2 |
2.1 |
6 |
2 |
|
M2.5 |
2.6 |
6.5 |
2 |
|
M3 |
3.1 |
8 |
2 |
|
M3.5 |
3.6 |
9 |
2.5 |
|
M4 |
4.1 |
10 |
2.5 |
|
M5 |
5.1 |
12 |
3.2 |
|
M6 |
6.1 |
14 |
3.3 |
|
M8 |
8.1 |
18 |
5 |
|
* we can also customize it according to your requirements. |
|||
Quality Control
Incoming Material Inspection:
Each batch of aluminum undergoes random chemical composition and dimensional inspection (material certificates or third-party reports can be provided).
Process Control:
Die and stamping parameter recording (force, frequency, die temperature) to ensure dimensional stability;
Automatic deburring + manual inspection cross-checking;
Surface treatment followed by film thickness/appearance/adhesion testing (sampling according to customer requirements).
Outgoing Inspection:
Dimensional inspection, appearance inspection, coating salt spray or adhesion testing (sampling ratio as agreed in the contract).
Third-Party Testing Support:
Accepting third-party testing commissioned by customers (such as SGS, BV, etc.) and providing test reports.
Surface Treatment
Offer a variety of surface treatments for our screws to meet different needs and environmental conditions. Such as zinc plating, nickel plating, hot-dip galvanizing, anodizing, zinc nickel alloy, dacromet coating, phosphating, etc.
Want a more detailed quote or samples? Contact our engineering team to get the most suitable specifications and production solutions.
Contact zeyao now for free samples and quotes!
