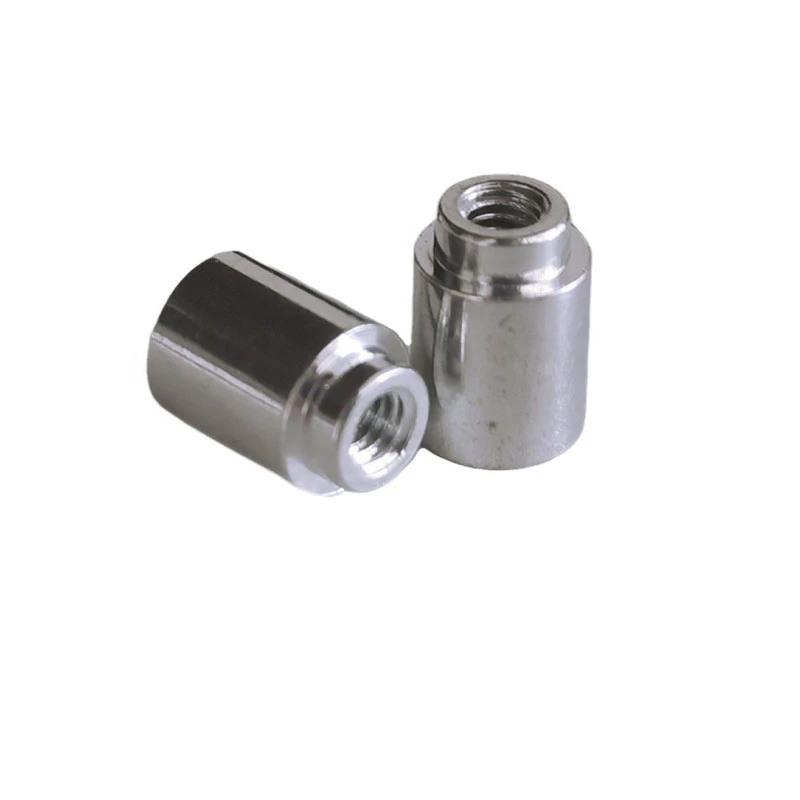

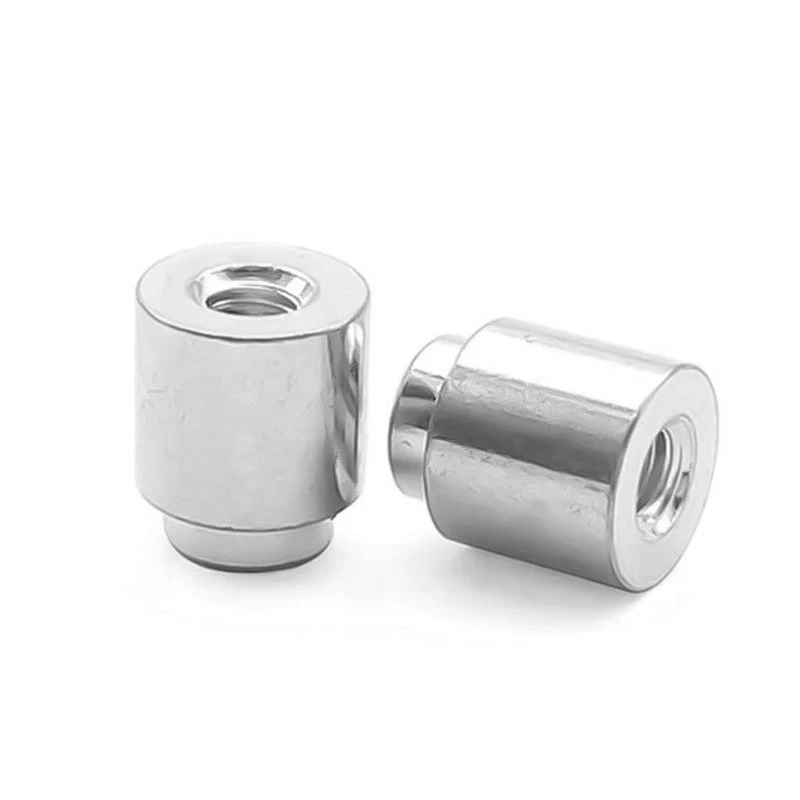

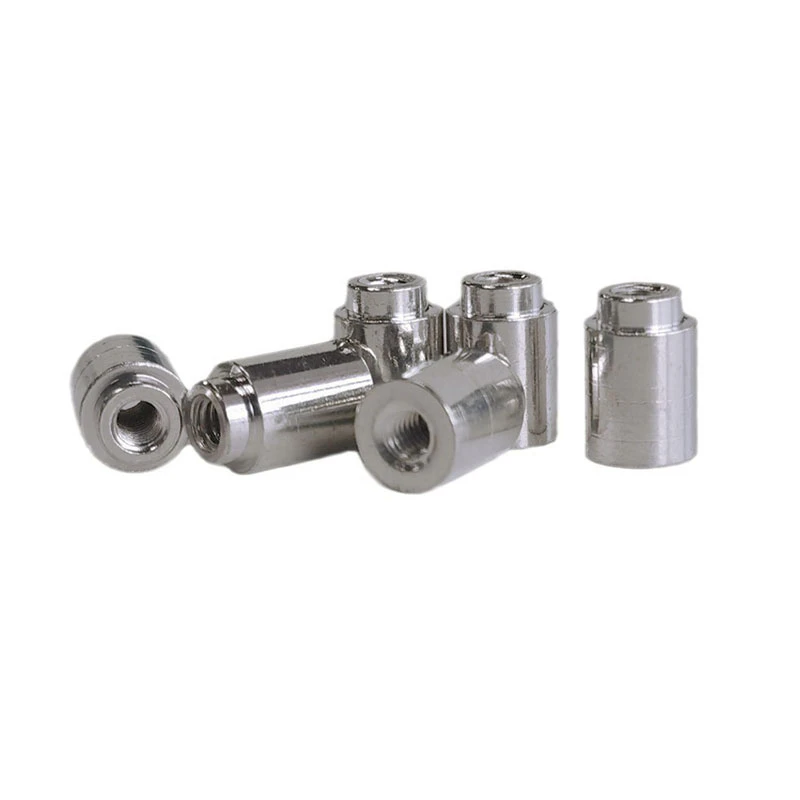

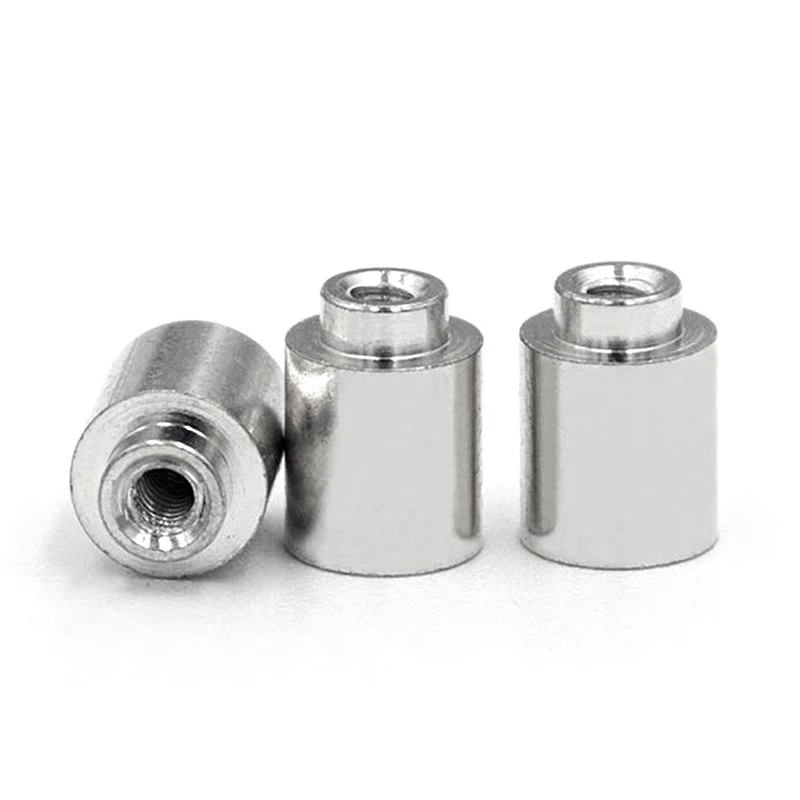

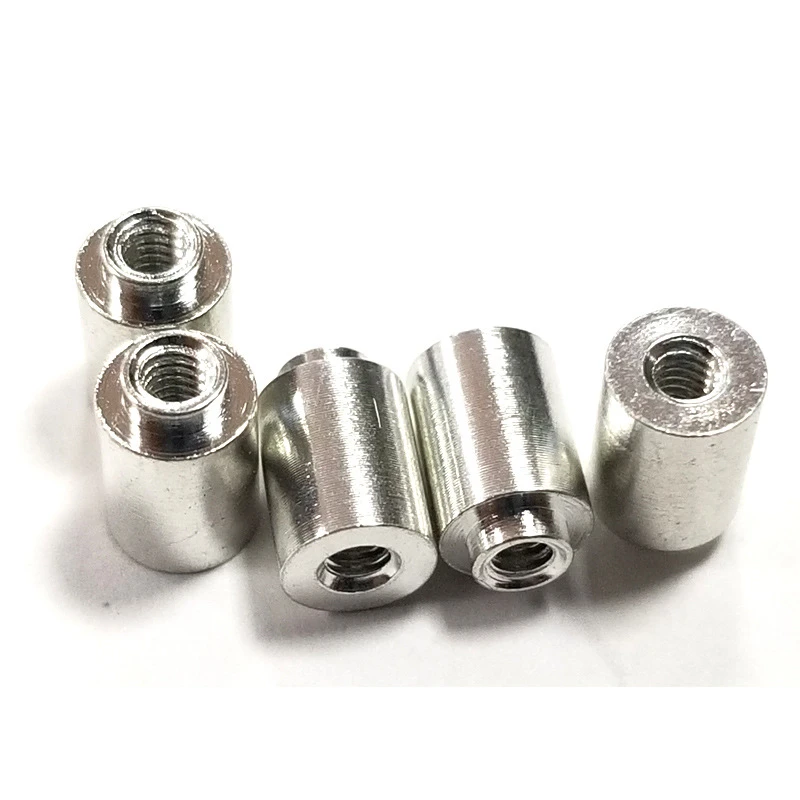

SMT Steel Spacer

SMT Steel Spacer



SMT steel spacers are compact fasteners specifically designed for PCB (Printed Circuit Board) assembly, suitable for modern high-density electronic devices. Their lightweight construction and minimal space occupation meet the stringent assembly requirements of precision electronic products, making them core small hardware components in various consumer electronics, industrial control equipment, and communication products.



The spacers are made of stainless steel and tin-plated to ensure excellent conductivity, solderability, and corrosion resistance. Their surface mount (SMT) structure allows direct reflow soldering onto the PCB surface, offering advantages such as easy installation, high automation, and cost reduction.

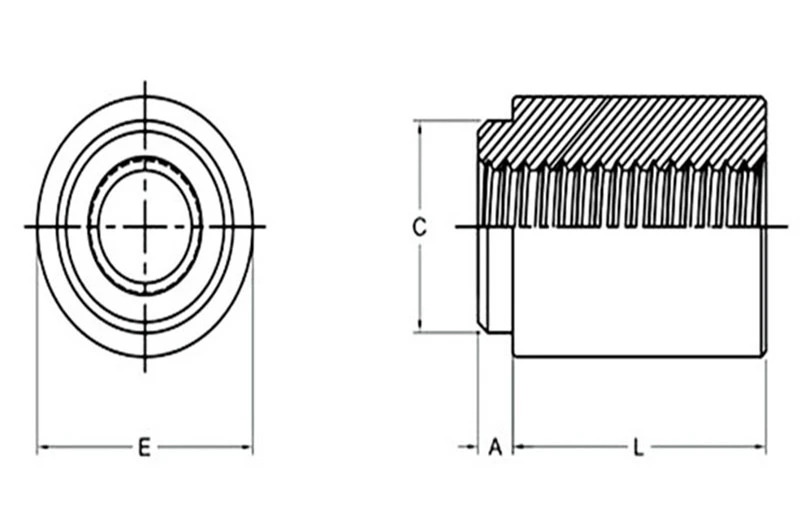

Thread Size	Thru Hole Size +0.004 -0.003	Type		Thread or Tru Hole Code	Length "L" ±0.13 (Length Code in Millimeters)					Min Sheet Thickness	A Max.	C Max.	E		H Nom.	Hole Size In Sheet +0.003 -0.000	Min. Dist. Hole to C/L or Edge
		Fastener Material											Ref.	±.005
		Steel	Brass
M2x0.4	-	SMTSO	-	M2	2	3	4	6	10	1.53	1.53	3.6	-	5.56	-	3.73	6.2
M2.5x0.4	-	SMTSO	SMTSOB	M25	2	3	4	6	10	1.53	1.53	4.09	-	5.56	-	4.22	6.2
M3x0.5	-	SMTSO	SMTSOB	M3	2	3	4	6	10	1.53	1.53	4.09	-	5.56	-	4.22	6.2
M3.5x0.6	-	SMTSO	SMTSOB	M35	2	3	4	6	10	1.53	1.53	5.28	-	7.14	-	5.41	7.77
M4x0.7	-	SMTSO	SMTSOB	M4	2	3	4	6	10	1.53	1.53	6.22	-	8.74	-	6.35	9.37
-	3.1	SMTSO	SMTSOB	3.1	2	3	4	6	10	1.53	1.53	4.09	-	5.56	-	4.22	6.2
-	3.6	SMTSO	SMTSOB	3.6	2	3	4	6	10	1.53	1.53	5.28	-	7.14	-	5.41	7.77
-	4.2	SMTSO	SMTSOB	4.2	2	3	4	6	10	1.53	1.53	6.22	-	8.74	-	6.35	9.37











About Zeyao

Zeyao has 19 years of experience in fastener R&D and production, focusing on the production of screws, precision hardware, SMT steel washers, and machined parts. Our factory has over 160 advanced production machines, equipped with complete cold heading, turning, tapping, riveting, and automated testing systems, with a monthly output exceeding ten million pieces, easily meeting the needs of large-volume orders.



We support OEM/ODM customization services and can provide non-standard customization based on customer drawings, specifications or samples, offering a full-process solution from mold development, prototyping, small batch to mass production.



OEM/ODM Customization

We support various customized specifications and structures, including:



Customizable height, outer diameter, and inner diameter

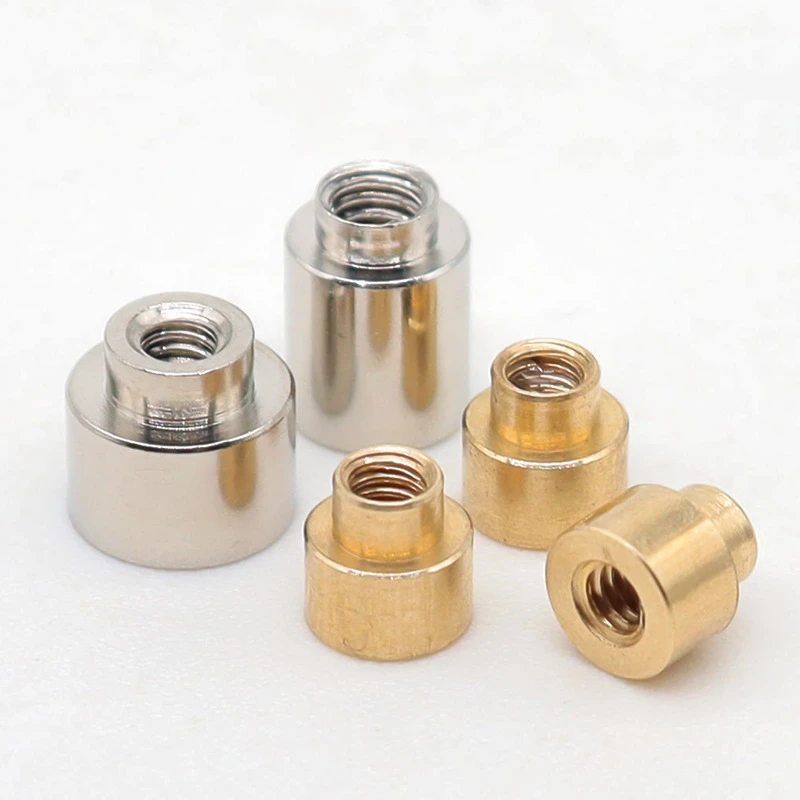

Selectable materials (brass, stainless steel, aluminum alloy)



Customizable surface treatments (tin plating, nickel plating, black plating, gold plating)



Customizable tensile strength and corrosion resistance ratings



Customizable logo, packaging, and tape & reel specifications



Supports sample testing and small-batch trial production



Supports OEM processing based on drawings and mold customization



Need a high-quality, reflow-solderable SMT steel spacer suitable for automated production? Then contact us now!

Contact now



FAQ

Q: Can you customize SMT Steel Spacers?

A: Yes, we support OEM/ODM customization.

Q: What is the minimum order quantity?

A: We accept small batch purchases; the specific quantity can be discussed with us.

Q: Are there discounts for bulk purchases?

A: Tiered pricing is available for large batch purchases.

Q: Do you have samples?

A: We can make samples according to your requirements; you will need to pay a sample fee.

Q: Will you keep my design drawings confidential?

A: Yes, we will sign a confidentiality agreement.
