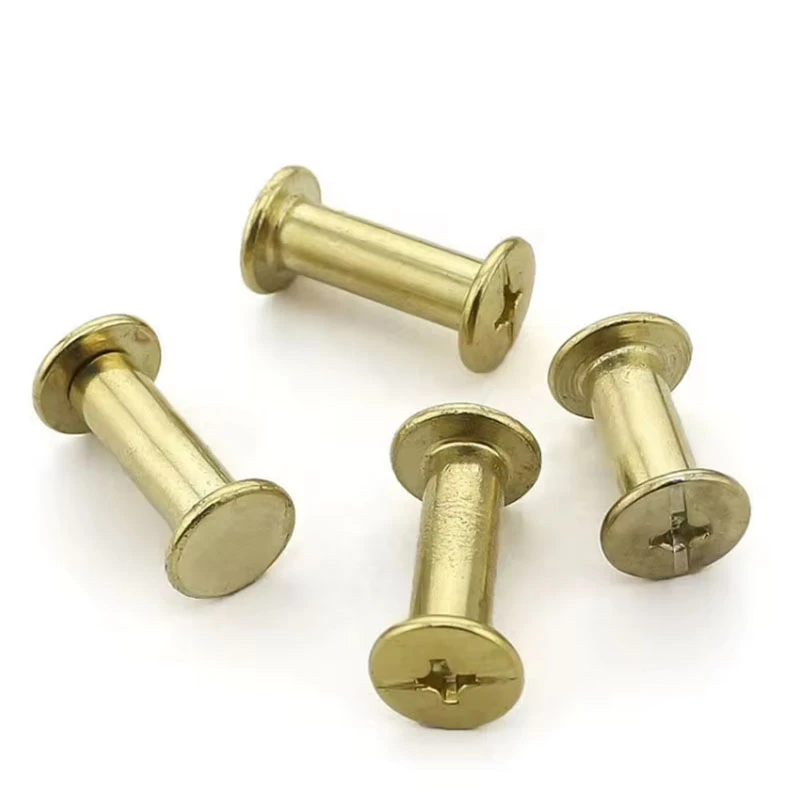

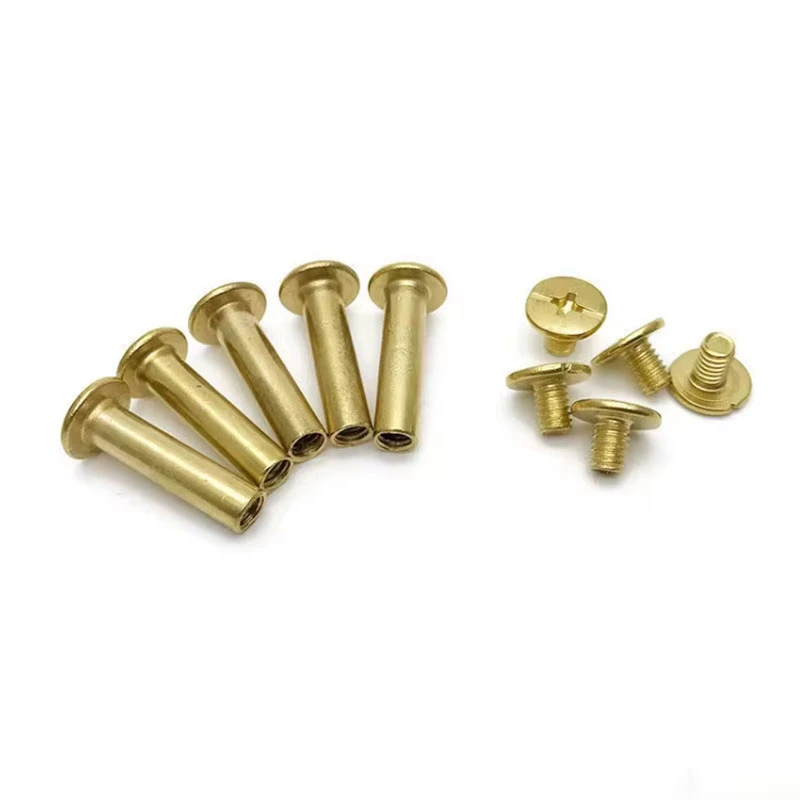

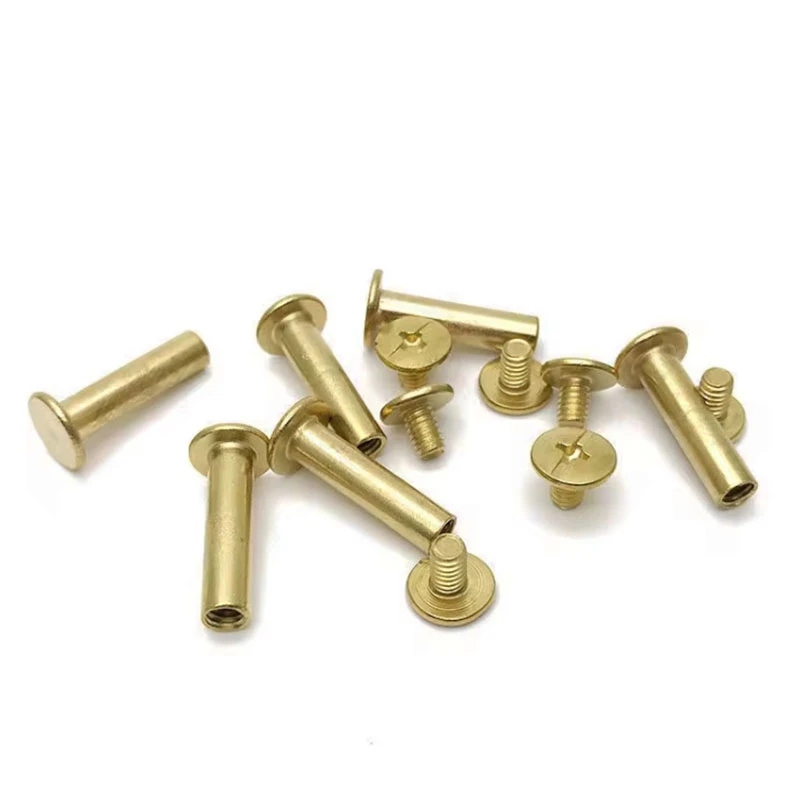

Brass Binding Post Screw

As a professional Brass Binding Post Screw manufacturer with 19 years of production experience, Zeyao has long provided high-quality Binding Post products to over 100 countries and regions worldwide, covering industries such as accounting supplies, document management, ledger binding, stationery manufacturing, instrument wiring, and industrial control equipment.



The brass terminal screws are made of H59, H62, and C3604 brass materials and can also be plated with other high-quality materials, such as nickel plating, offering excellent rust and corrosion resistance, making them ideal for long-term use in various environments.

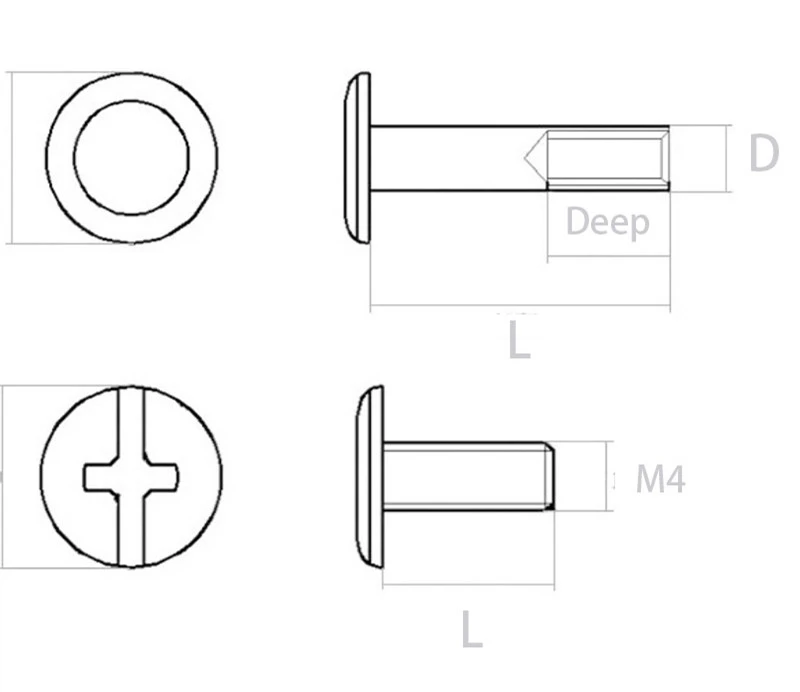

Specification		M2.5	M3	M4	M5	M6	M8	M10
b		4	4	6	8	10	12	15
dk	max	4.7	5.7	7.6	9.4	10.5	14	17.5
	min	4.5	5.4	7.24	9.14	10.07	13.57	17.07
k	max	1.5	1.8	2.4	3	3.6	4.8	5
	min	1.36	1.66	2.26	2.86	3.3	4.5	4.7
ds	max	1.9	2	2.8	3.5	4.5	5.5	7
	min	1.8	1.86	2.66	3.32	4.32	5.32	6.78





Product Features

1. Made of Brass

The brass terminal screws are made of three high-quality brass types: H59, H62, and C3604, all of which have undergone stable annealing and material testing:

H59: High strength and compressive strength, suitable for thick ledgers or binding structures with high load-bearing requirements.

H62: Better ductility, smooth and delicate outer wall after machining, suitable for stationery products with high appearance requirements.

C3604: Designed for high-precision machining, resulting in more complete thread formation and smoother screwing.



2. Uniform Thread Texture and Precise Molding

All studs and screws are machined using CNC automatic lathes, achieving a thread control precision of up to 6H grade:

Consistent thread depth prevents loose threads or unstable meshing.

Smooth and even screwing in and out, preventing damage to the threads even after repeated assembly and disassembly.

Firm and secure after screwing, maintaining its fastening strength even after long-term use.



3. Multiple Electroplating Options

Available surface treatments include: original bright brass, nickel plating, antique bronze, gunmetal, and brushed gold.

Nickel Plating: High surface hardness, sweat-resistant, scratch-resistant, and passes 24–48 hour salt spray test.

Original Polished Finish: Maintains the pure brass texture with a soft gold finish, suitable for high-end ledgers.

Brushed Series: Uniform surface texture for a more premium look after binding.

Custom Electroplating: Custom color schemes can be created to match your brand's color scheme.

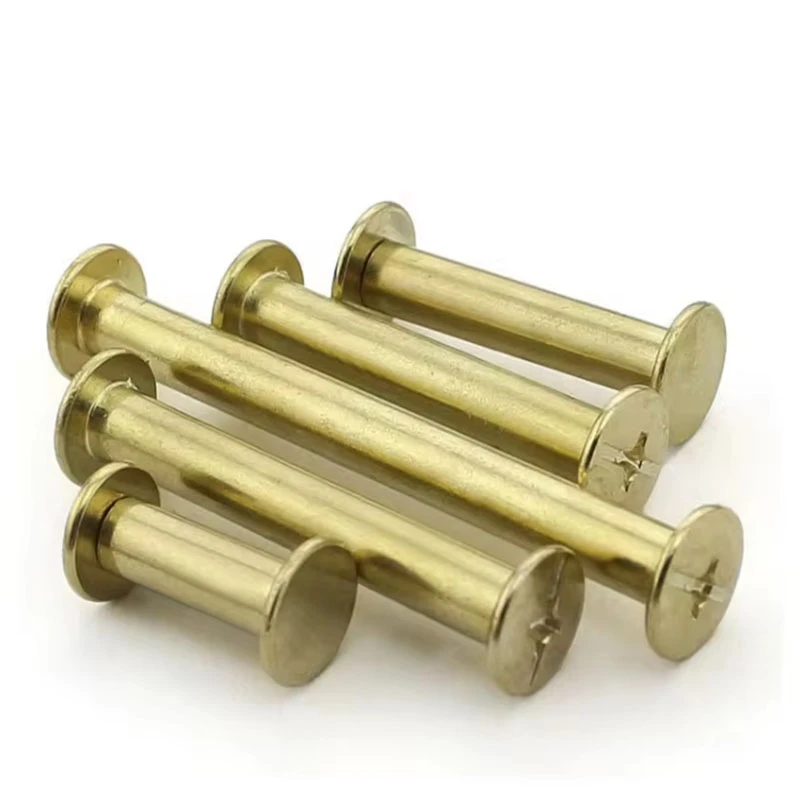

4. Wide Range of Sizes to Fit Different Binding Thicknesses

Zeyao can produce sizes from 3mm to 80mm. Available in various lengths to suit different binding needs:

Thin booklets (2–10mm): 3–8mm column length

Medium-thick booklets (10–25mm): 10–20mm column length

Thick booklets (25–50mm): 25–50mm column length

Extra-thick booklets (50mm and above): Custom lengths available, such as 60mm / 70mm / 80mm

Diameter options: 3.0 / 3.5 / 4.0 / 5.0mm; Thread specifications: M3 / M4, meeting various stationery and industrial assembly standards.



5. Secure and reliable fastening

Brass provides high structural stability. The stud wall thickness and thread depth have been rigorously calculated:

The studs will not loosen after installation due to page turning or gravity.

The threads will not rust or fall off during long-term storage.

They will not leave rust or corrosion spots on the paper.

Especially suitable for long-term preservation of financial ledgers, vouchers, archives, sample books, and other similar materials.

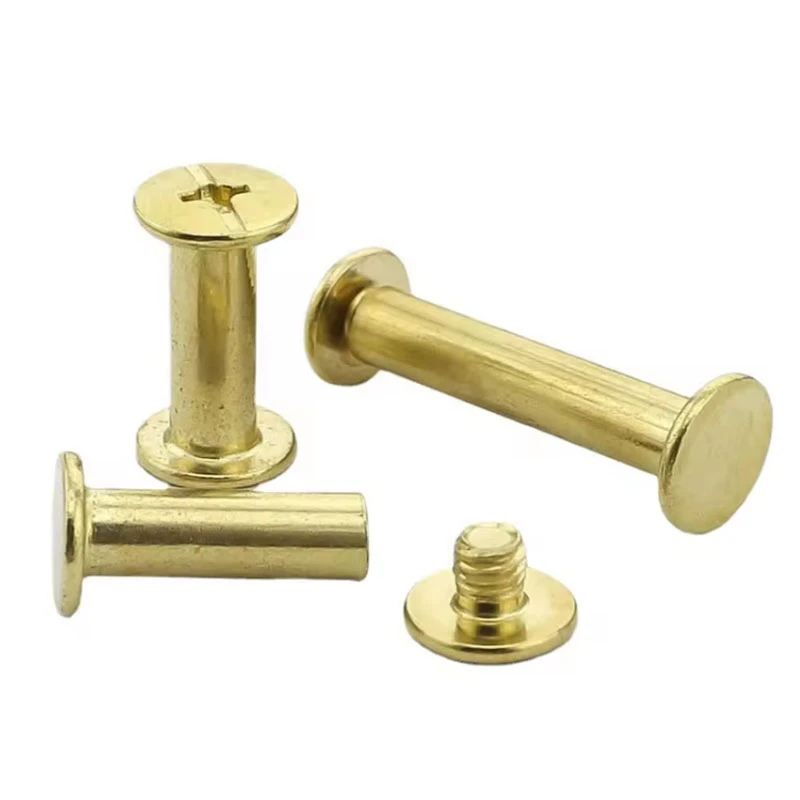

6. Diverse Screw Head Structures

A variety of head types are available:

Round Head (Classic): Suitable for ledger binding, with a smooth, rounded appearance.

Flat Head: Creates a smoother surface after binding, facilitating stacking.

Phillips Head: Flexible assembly and disassembly, suitable for frequently updated sample books.

Hex Head: Commonly used in high-end ledgers, sturdy and aesthetically pleasing.

Slotless Head: Designed for tamper resistance, increasing security.



7. Environmentally Friendly Materials

Brass does not contain iron, which easily oxidizes into powder:

No rust spots will form over long-term storage.

It will not corrode paper.

It will not release volatile acidic substances that damage documents.
