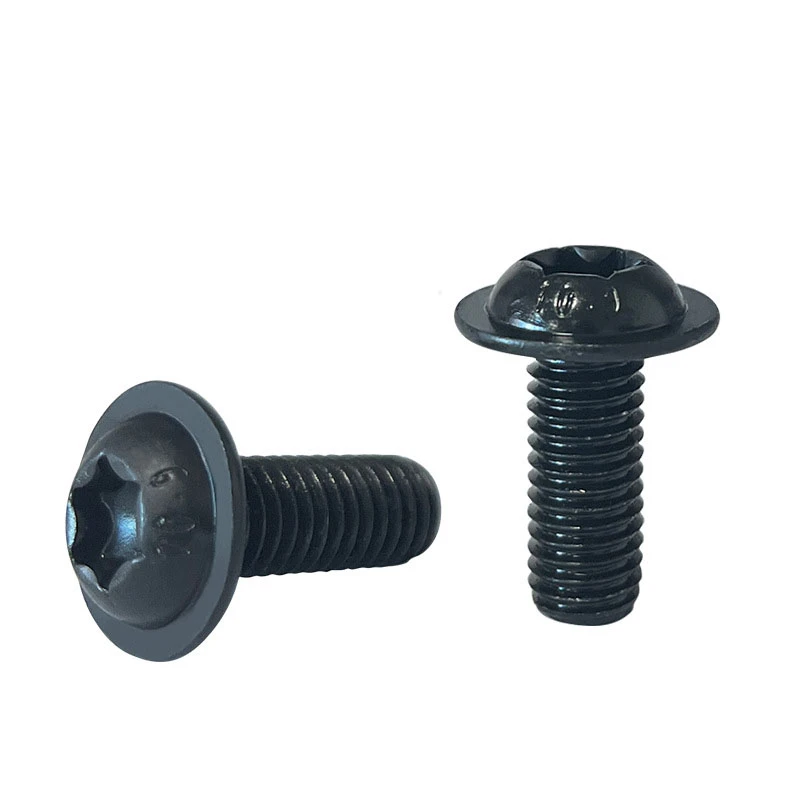

Black Button Flanged Head Torx Drive Screw

Black Button Flanged Head Torx Drive Screw

Details
Material: Mild steel 1008, 1018,1022 steel. steel 10B21 can be tempered to grade 8.8, steel SCM435 can be tempered to grade 12.9. Stainless steel, aluminum and brass material are also optional. Heat treatment: For mild steel, the heat treatment can be only hardened to case, so it is Carburization. For medium carbon steel and high carbon steel, ally steel, Quench and tempering heat treatment can be produced. Surface finish: Black zinc plating, black oxide,black Electrophoresis,Black Phosphating, black zinc nickle plating. Performance: Mild steel provides cost effective material while the strength is small.  Stainless steel is suitable for use outdoor. High  carbon steel and alloy steel are used where the parts need high tensile strength.
Category
Screw
Share to
Send Inquiry
Description
Technical Parameters

Some Statistics About Us You Must Know

Choose the plan that suits you best.

18

+

YEARS OF EXPERIENCE

3000㎡+

FLOOR SPACE

160

+

MACHINERY EQUIPMENT

3500

+

SATISFIED CUSTOMERS



Product Picture

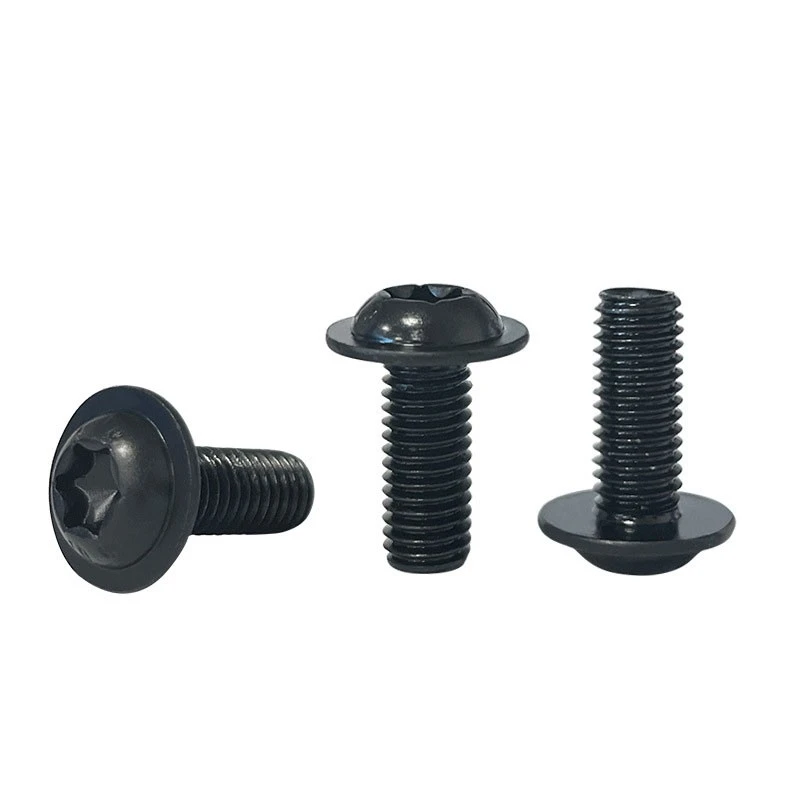

button flanged head bolt 1

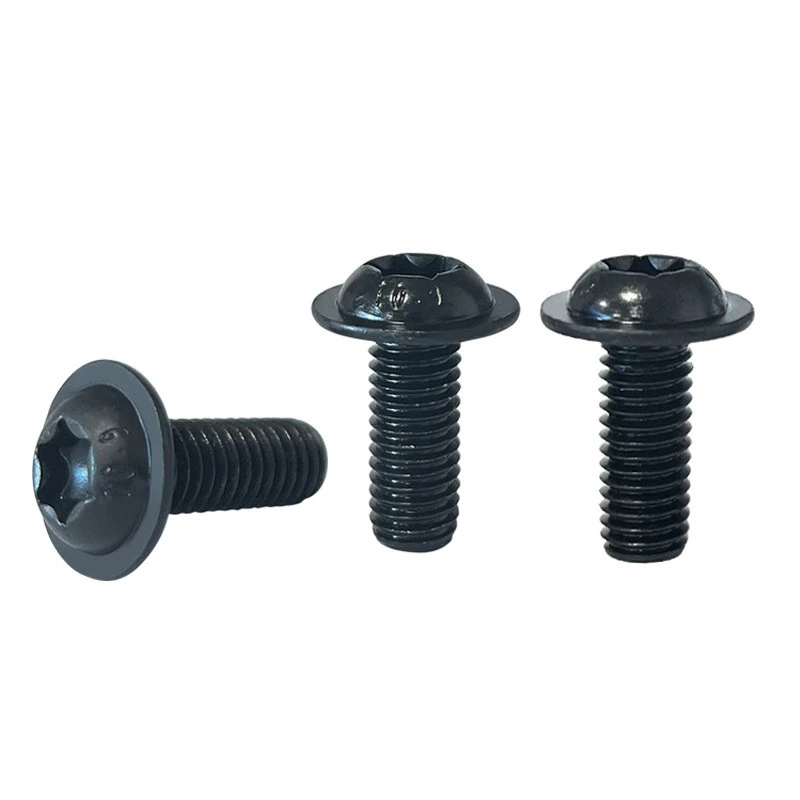

button flanged head bolt 2

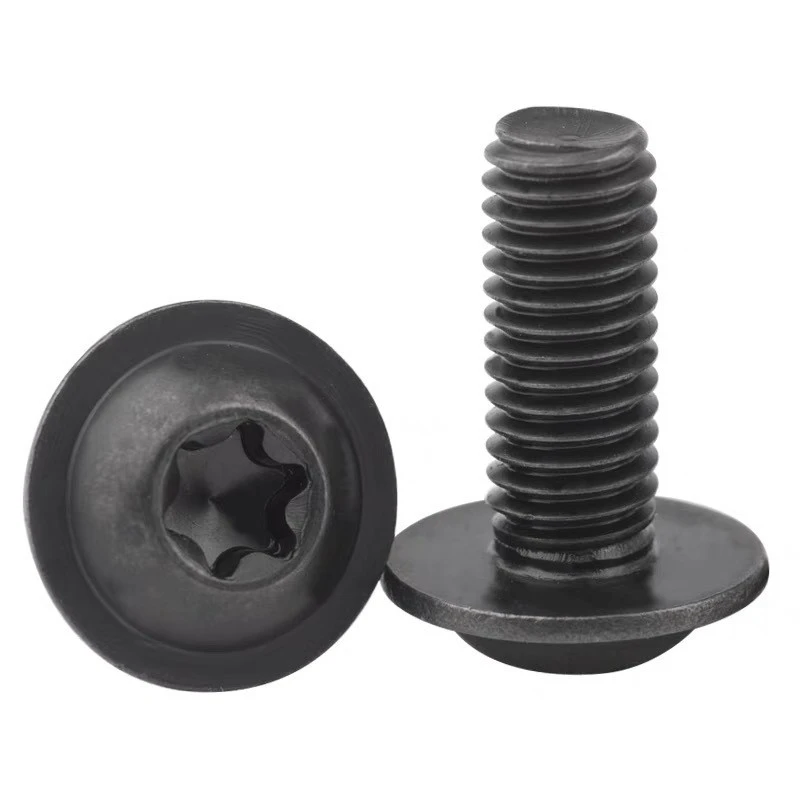

button flanged head bolt 3

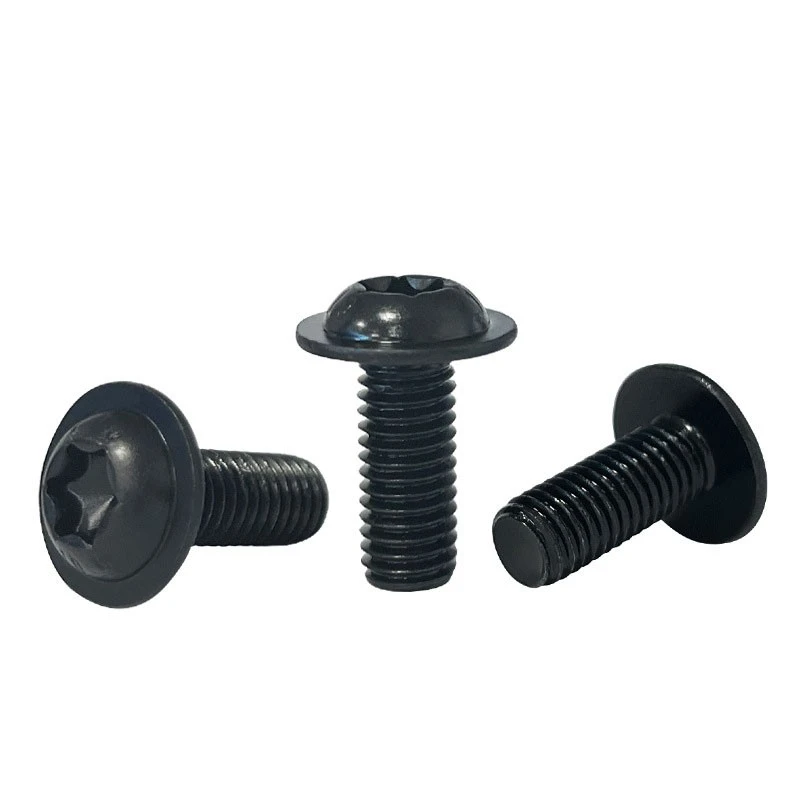

button flanged head bolt 4


Black Button flanged head torx drive screw:



Material: Mild steel 1008, 1018,1022 steel. steel 10B21 can be tempered to grade 8.8, steel SCM435 can be tempered to grade 12.9.

Stainless steel, aluminum and brass material are also optional.

Heat treatment: For mild steel, the heat treatment can be only hardened to case, so it is Carburization.

For medium carbon steel and high carbon steel, ally steel, Quench and tempering heat treatment can be produced.

Surface finish: Black zinc plating, black oxide,black Electrophoresis,Black Phosphating, black zinc nickle plating.

Performance: Mild steel provides cost effective material while the strength is small.  Stainless steel is suitable for use outdoor. High

carbon steel and alloy steel are used where the parts need high tensile strength.

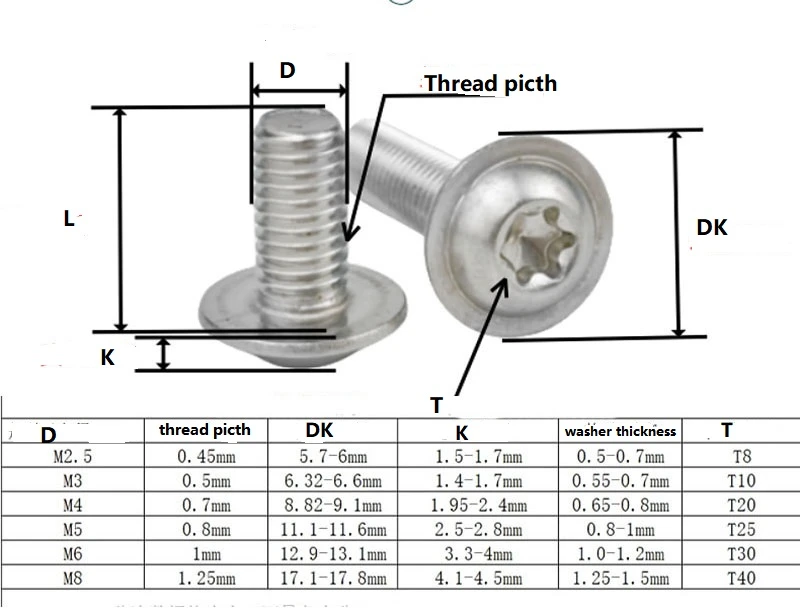

flanged button head screw









Production Process





1Raw Material
Raw Material
2 Cold Forging
Cold Forging
3 Threading
Threading
4 Auto Lathe
Auto Lathe
5 Auto Lathe
Auto Lathe
6Table Lathe
Table Lathe
7CNC Lathe
CNC Lathe
8Quality Checking
Quality Checking
9 Inspection
Inspection
10 Packing
Packing



Quality Control





1 Clipers Micrometer
Clipers Micrometer
2 Torque
Torque
3 Depth Micrometer
Depth Micrometer
4 Plug
Plug
5 Thread Guage
Thread Guage
6 Ring Guage
Ring Guage
7 Hardness Tester
Hardness Tester
8Projector
Projector
9 Salt Spray Testing
Salt Spray Testing













FAQ

Q1: Can you provide custom Black Button flanged head torx drive screw?

A1: It can be made according to the drawings and specifications provided by customers.



Q2: I want to keep our design secret. Can we sign an NDA?

A2: Sure, we will not display any customer's design or show it to other people, we can sign an NDA.



Q3: How do you guarantee quality?

A3: On the one hand, our company has a strong team and high-precision machines to guarantee quality; on the other hand, we have a strict production process from production to delivery.



Q4: Can I visit your factory?

A4: Yes! Warmly welcome you to visit our factory. It would be great if you could inform us in advance.



Custom Service









We always offer our customer cost saving price by evaluating the best production process.

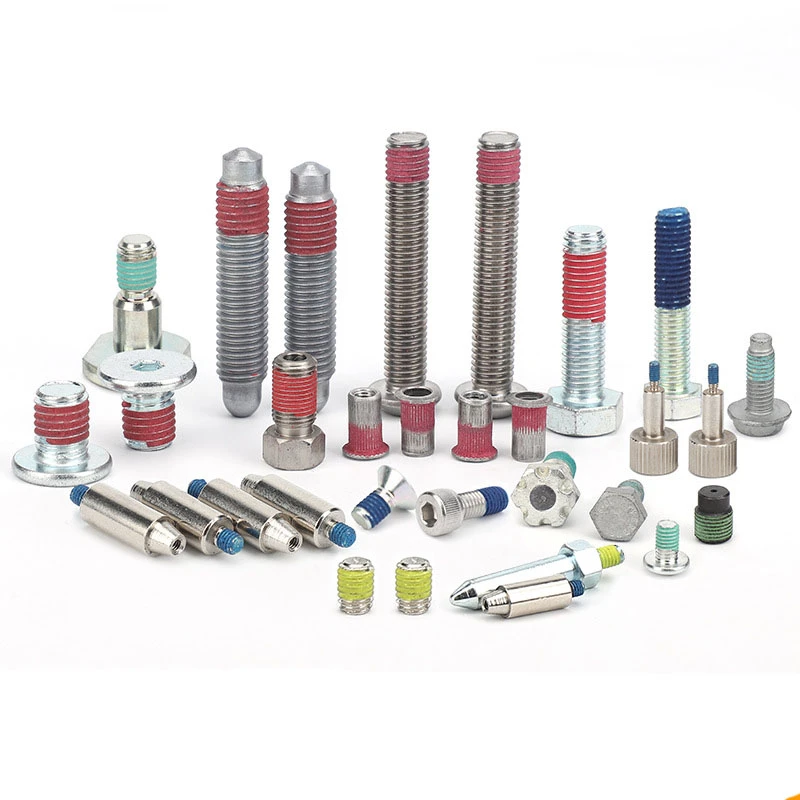

thread locker screw 4
